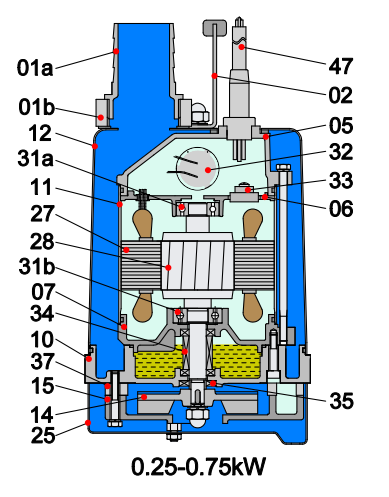

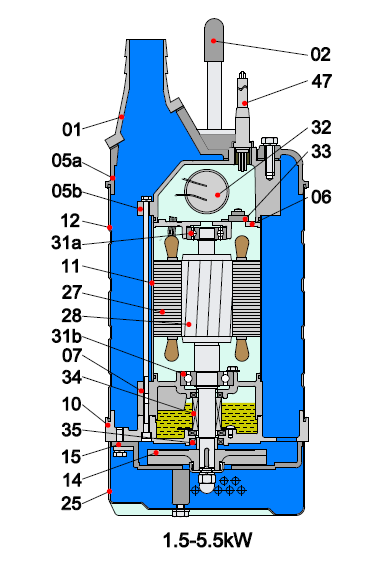

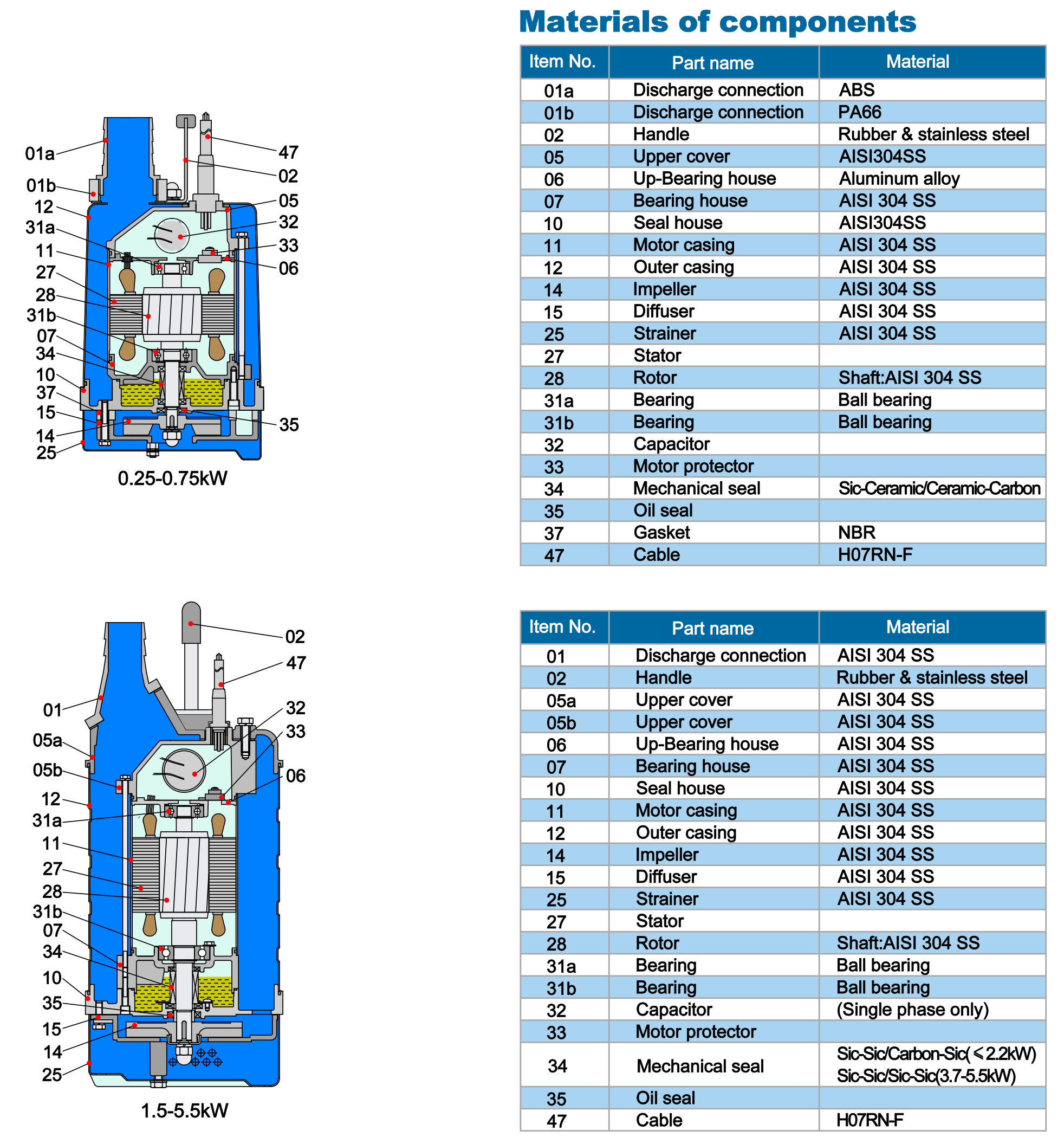

Structure and characteristics

Compact design,high performance and exceptional durability for handing abrasive liquid, widely used in general construction and civil engineering.

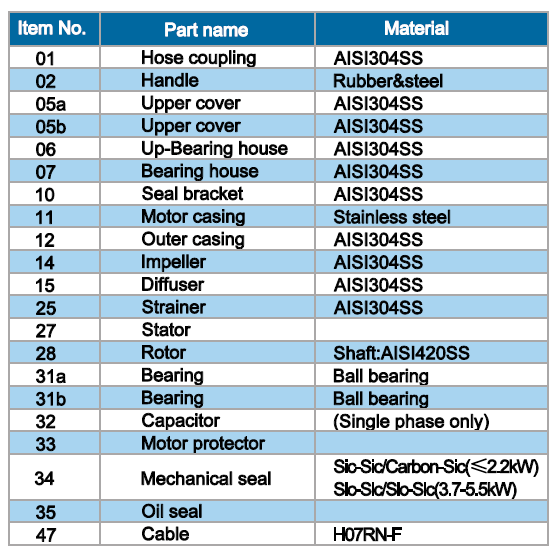

The body of motor and pump is made of stainless steel for long-lasting durability.

Greatly increased maximum submersion depth due to mechanical seal resistant to high pressure.

Semi-open impeller made of high chrome alloy matching with wear plate (ductile iron) achieves superior durability.

Effective motor cooling due to discharge channel cast as part of the motor housing.

Discharge 50mm(2'') to 150mm(6''), motor 0.25kW (0.35HP) to 11 kW (15HP).

Hermetically sealed motor equipped with built-in thermal protection for pumps with power below 11kW.

Application

Civil engineering

Mines, quarries, coal ore & slurries

Sewage treatment plants

General pumping purposes

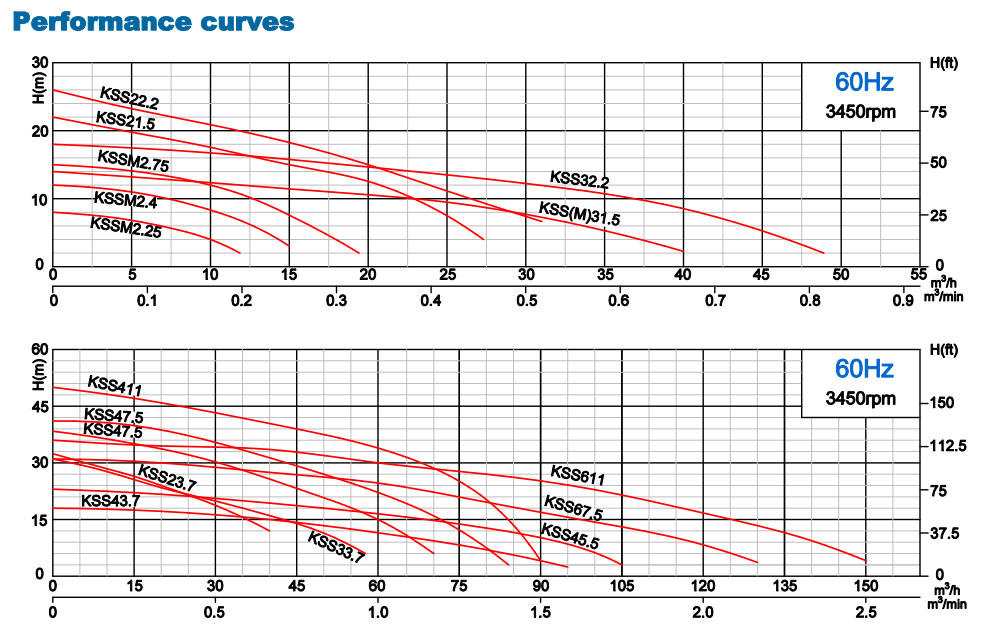

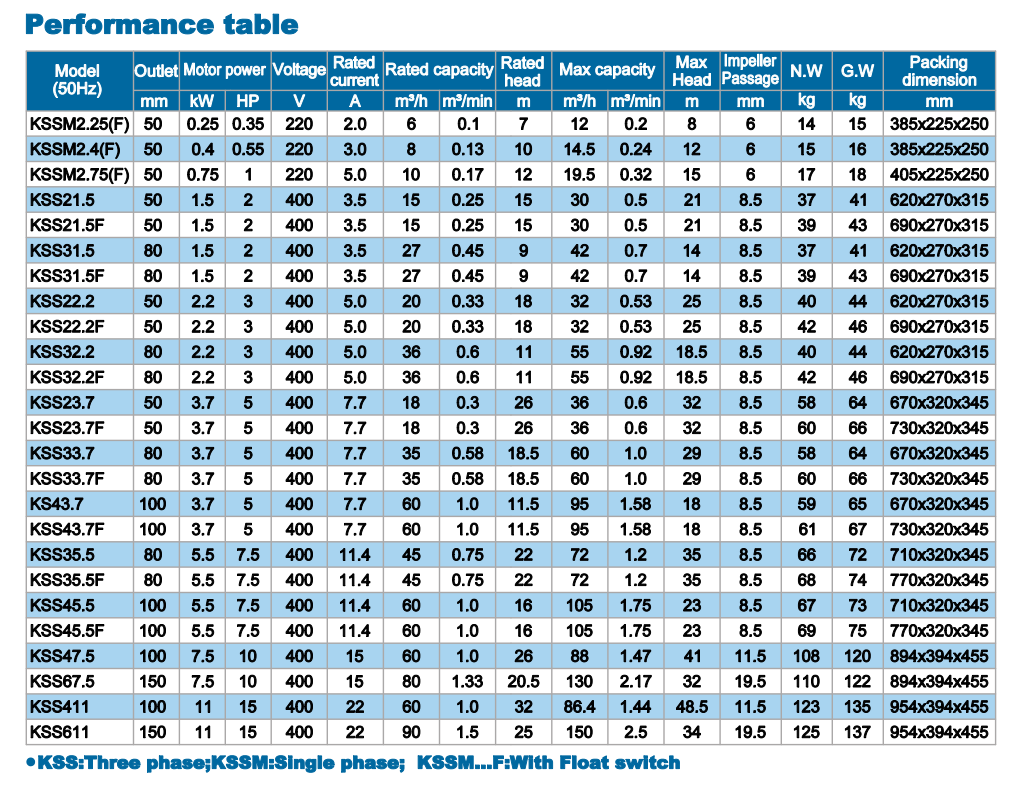

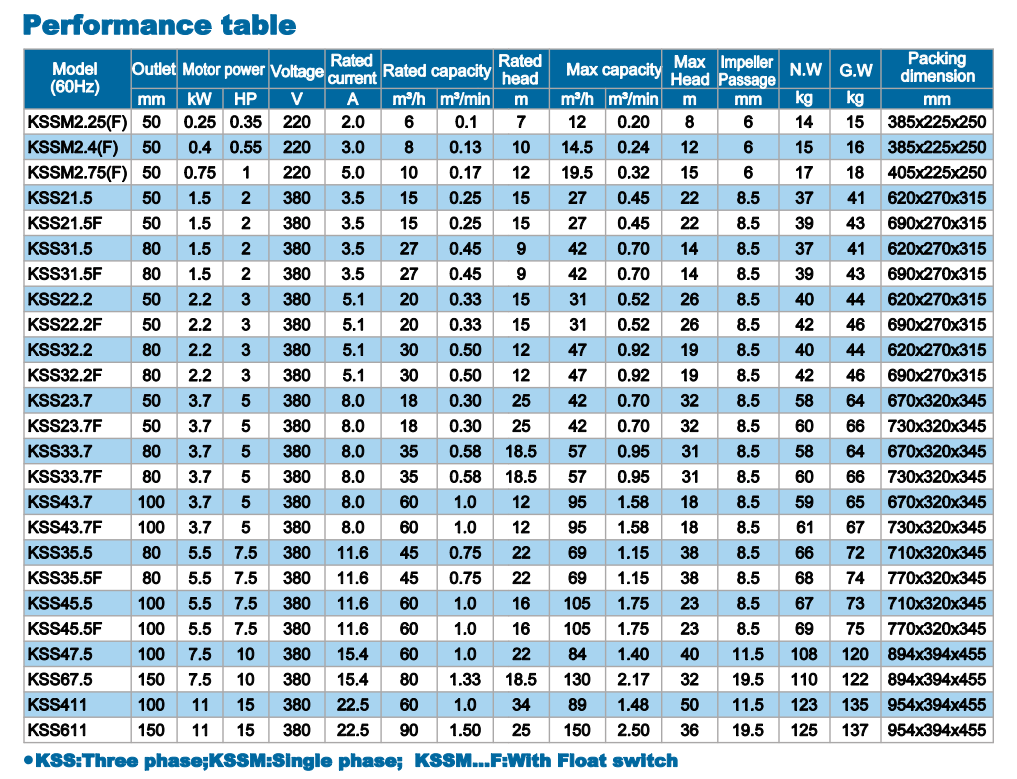

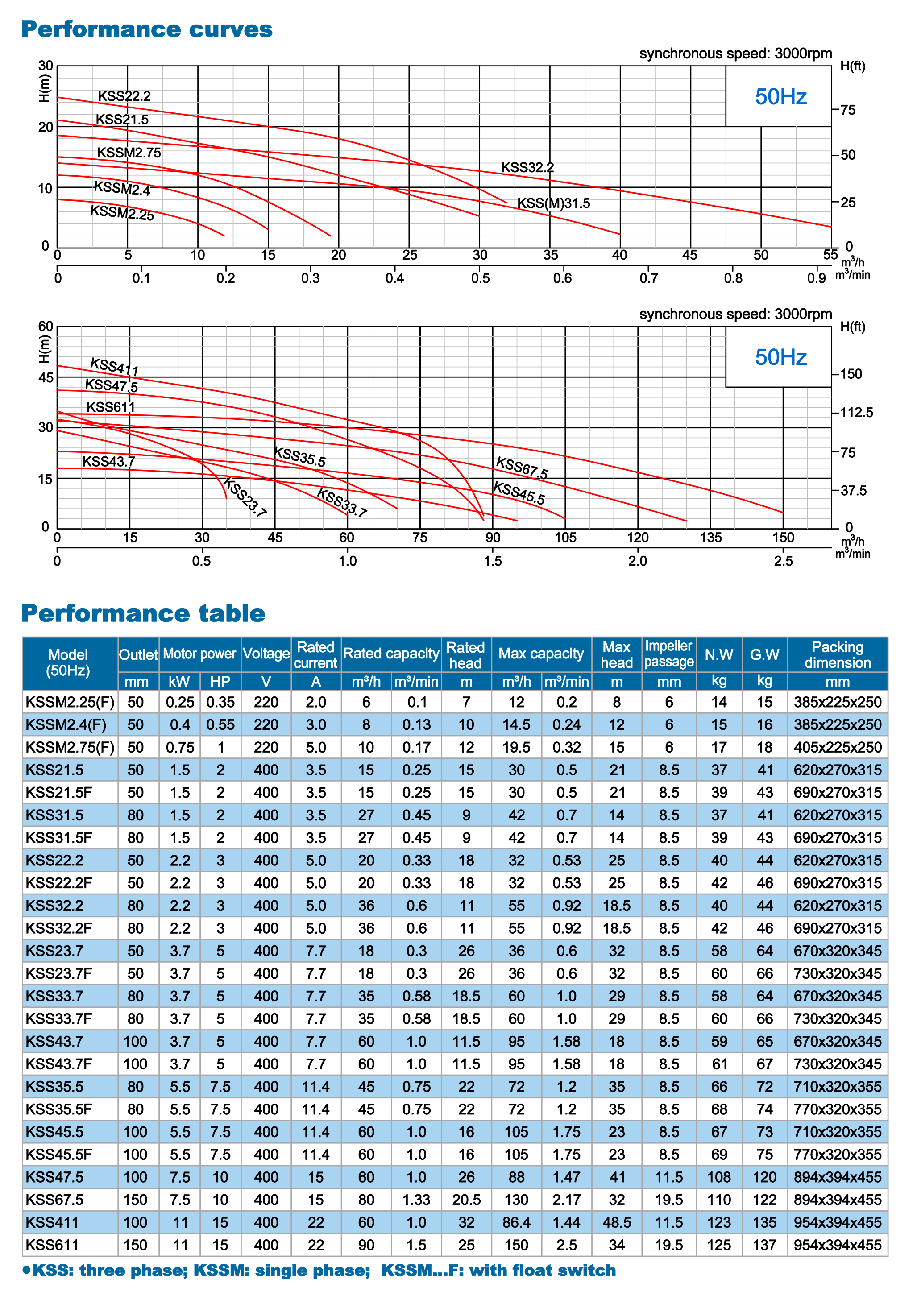

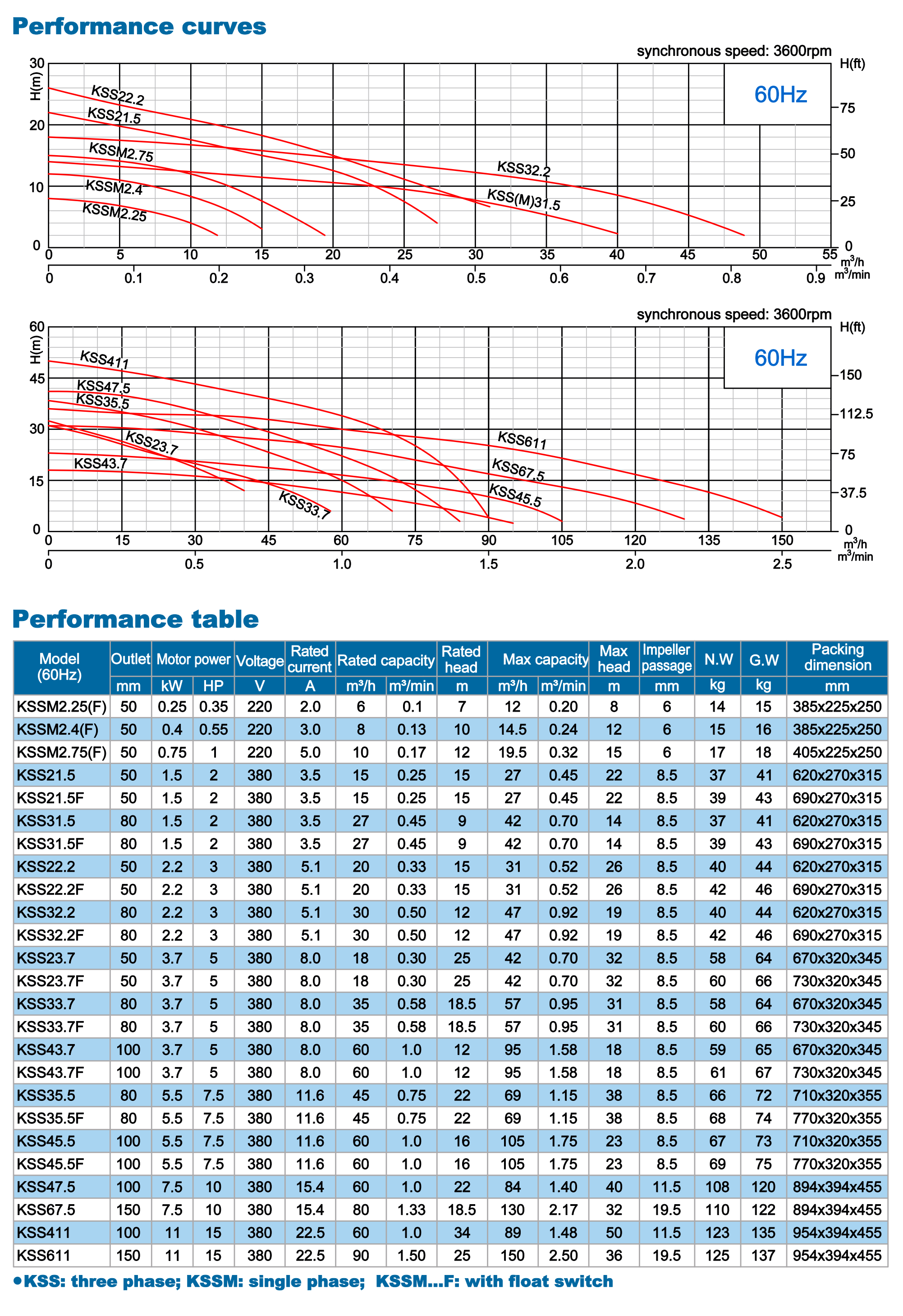

Specification

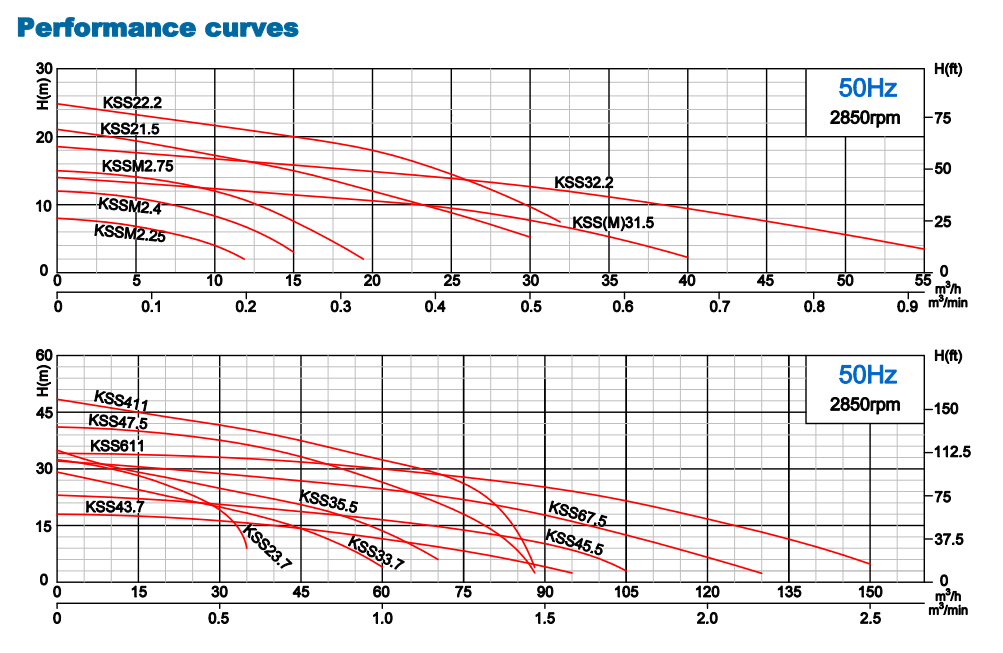

Capacity: up to 150m³/h

Head: up to 50 meters

Power: 0.25kW (0.35HP) to 11 kW (15HP)

KSSM0.25~0.75: single phase 220V ± 10%,50Hz

                                                 220V ± 10%,60Hz

KSS1.5~11: three phase 400V ± 10%,50Hz

                                        380V ± 10%,60Hz

Insulation class: F

Protection class: IP68

Cable length: 8m(0.25～0.75kW)

                      15m(1.5～5.5kW)

                       8m(7.5～11kW)

Water temperature: up to 40℃

Max. water depth: KSSM0.25~0.75kW: 10m

                              KSS1.1~11kW: 25m
