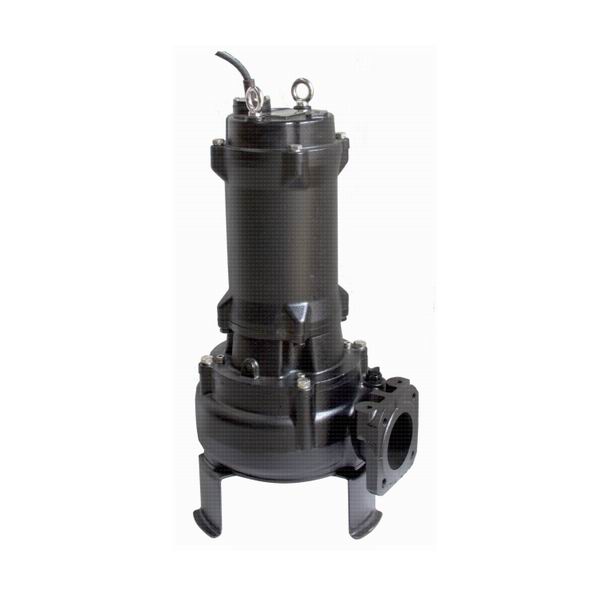

C SERIES SEWAGE PUMP TYPE T 2.2-7.5kW 4P

Structure and characteristics

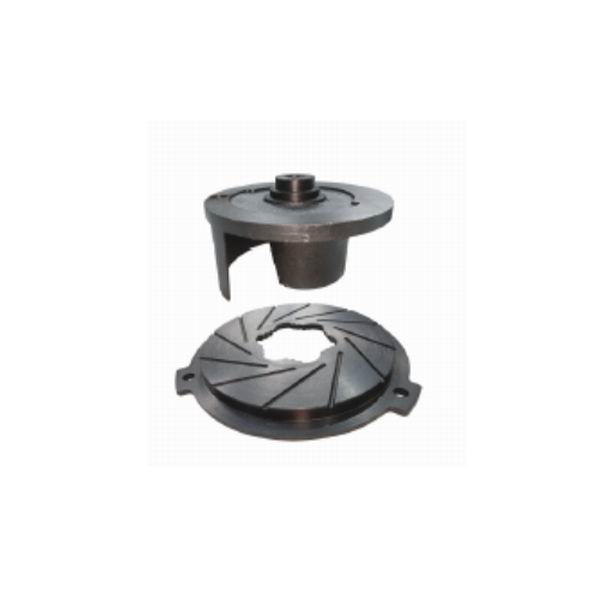

A “cutter mechanism” is provided by the combined action of a carbide blade intergrated into a non-clog impeller and the sawshaped inner surface of a suction cover. This construction ensures that fibrous foreign matter is cut up, and sewage is transferred without clogging.

Application

The C series is especially useful for pumping waste water containing soft, easy broken fibers from slaughter house and blogas plants.

Specification

Insulation class : F

Protection class : IP68

Water temperature : up to 40

PH : 6 to 10

Density of liquid : up to 1.3g/cm³

Power supply :  three  phase 380V ±10%, 50Hz

                          three  phase 380V ±10%, 60Hz

Motor protection : built in

Capacity : up to 150m³/h

Head : up to 25m

Maximum immersion depth : 20m

Cable Length : 8m

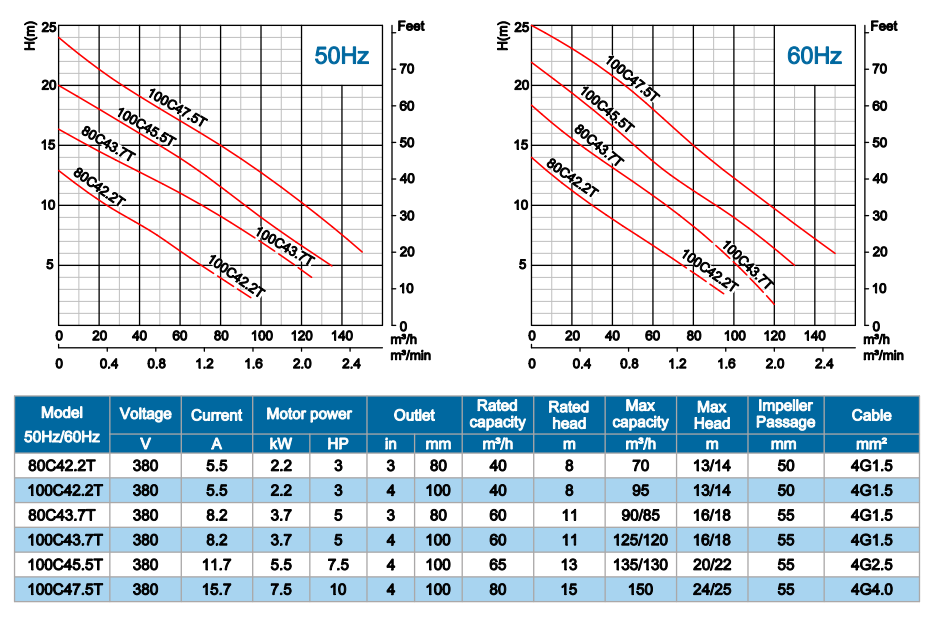

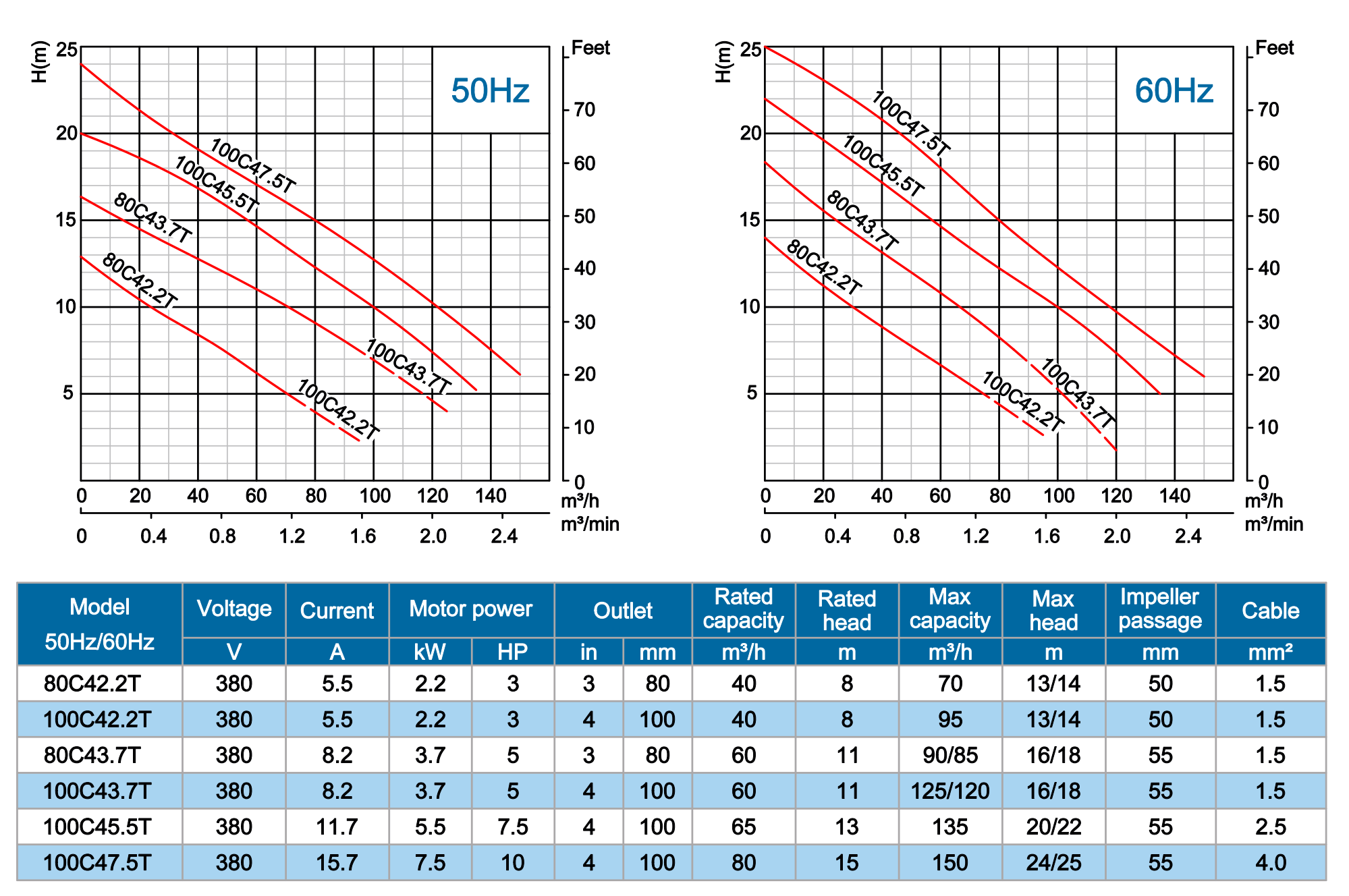

Series Product Specfications

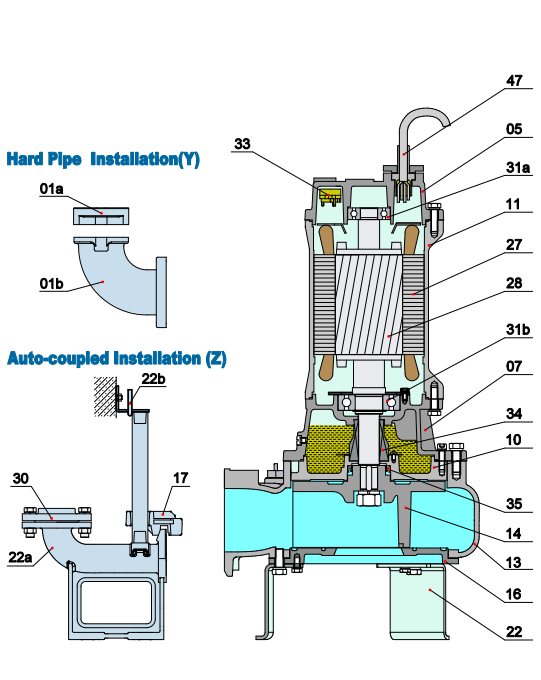

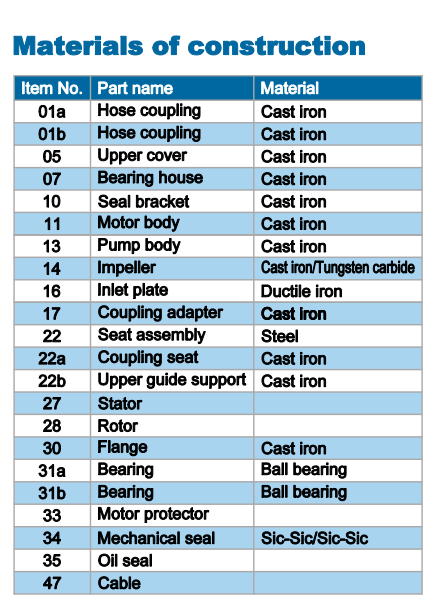

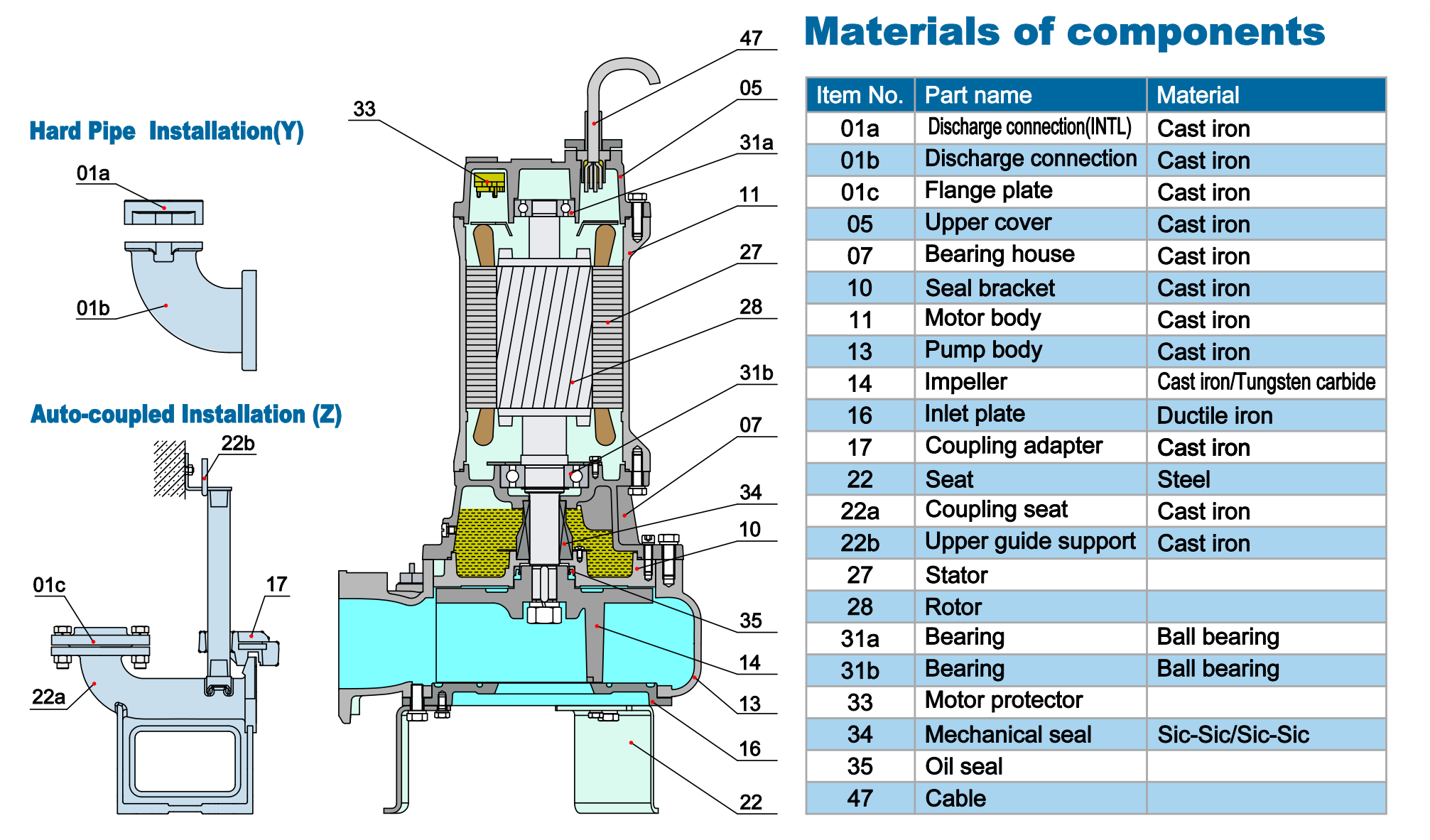

Material of Construction
Specification

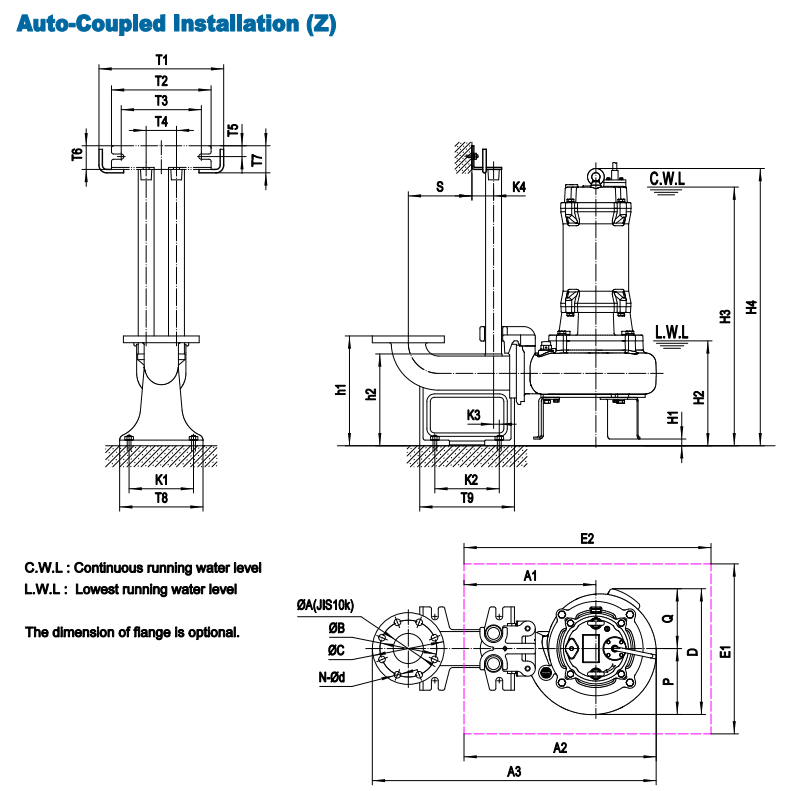

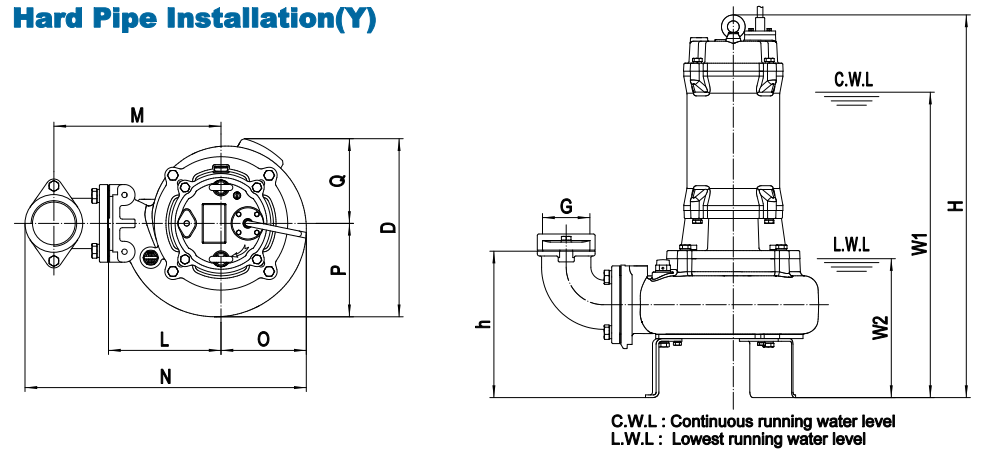

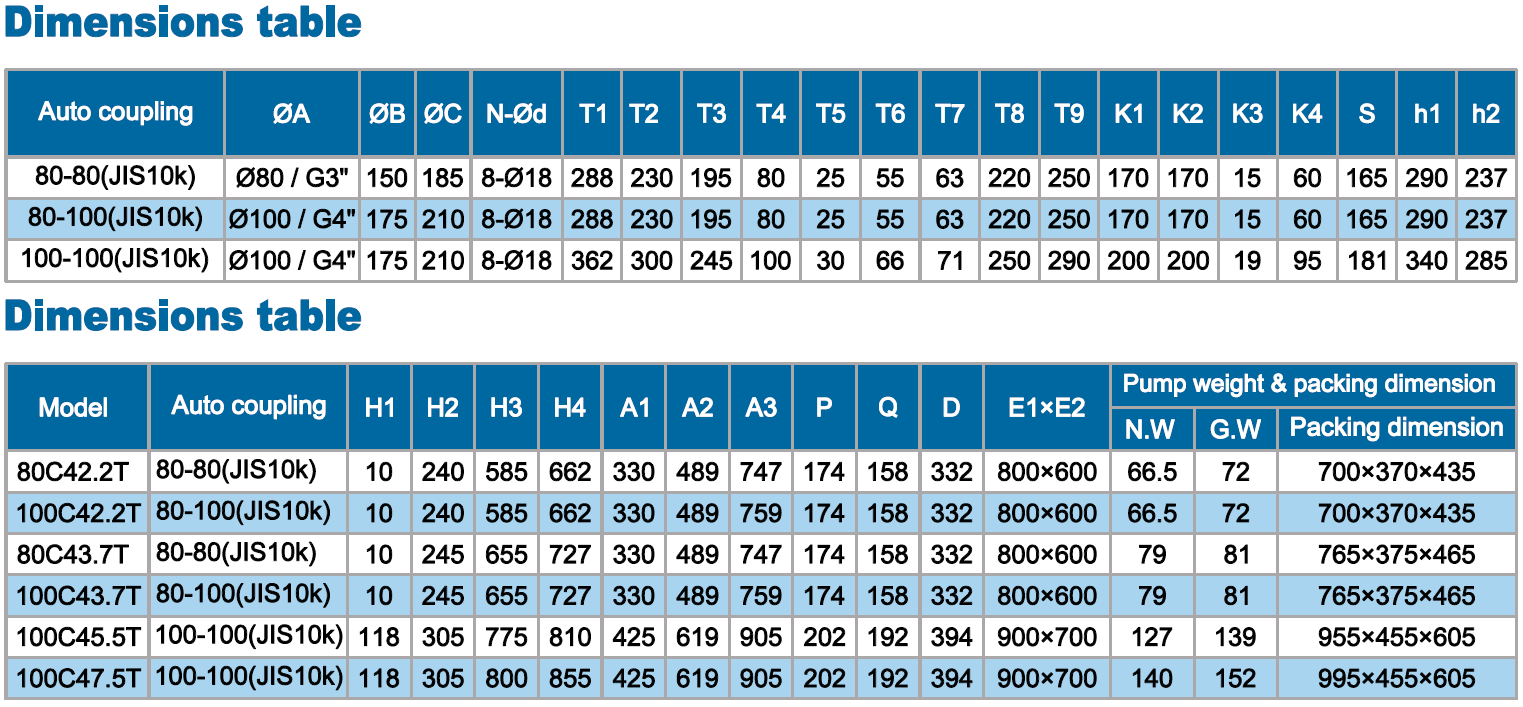

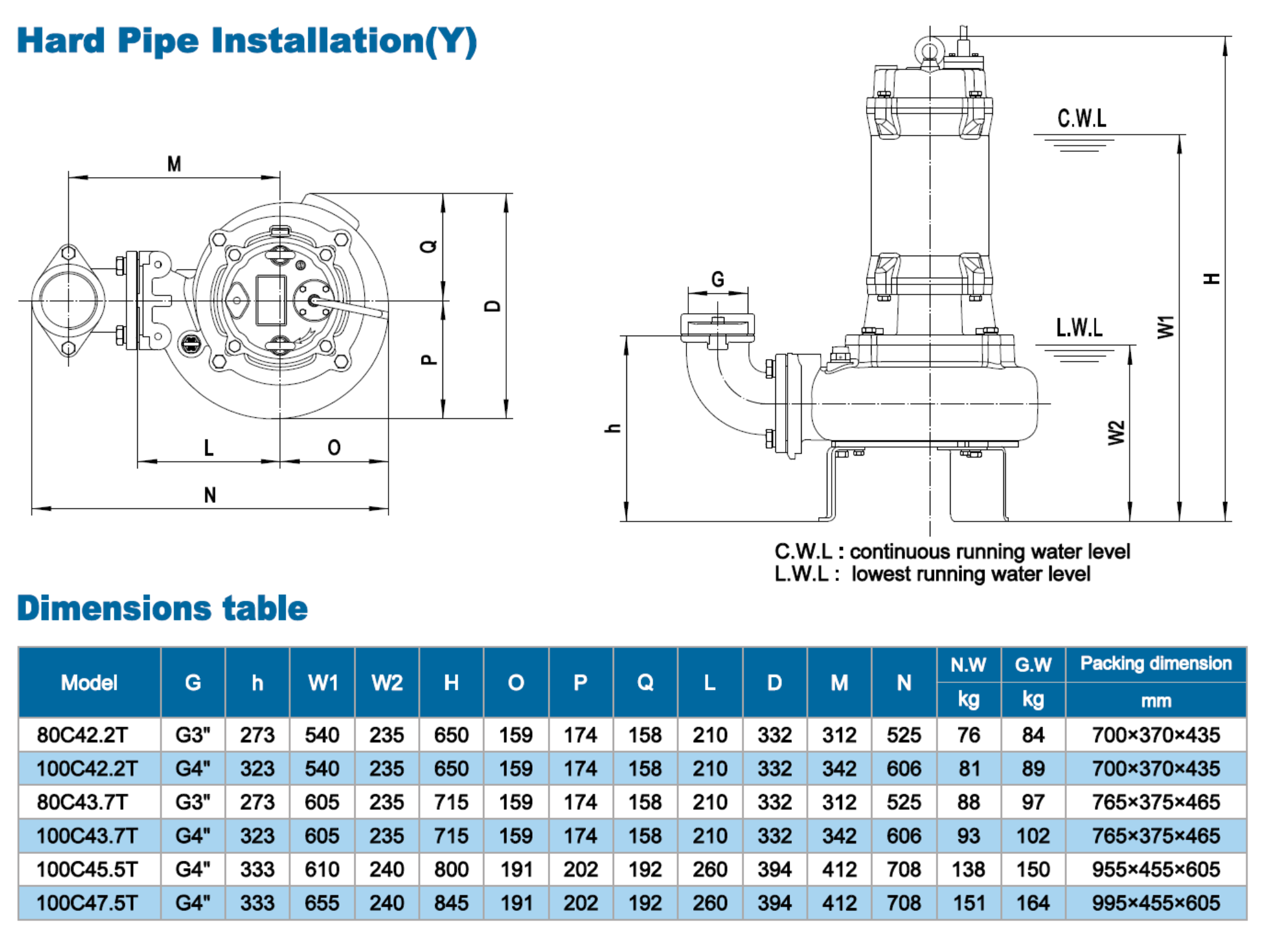

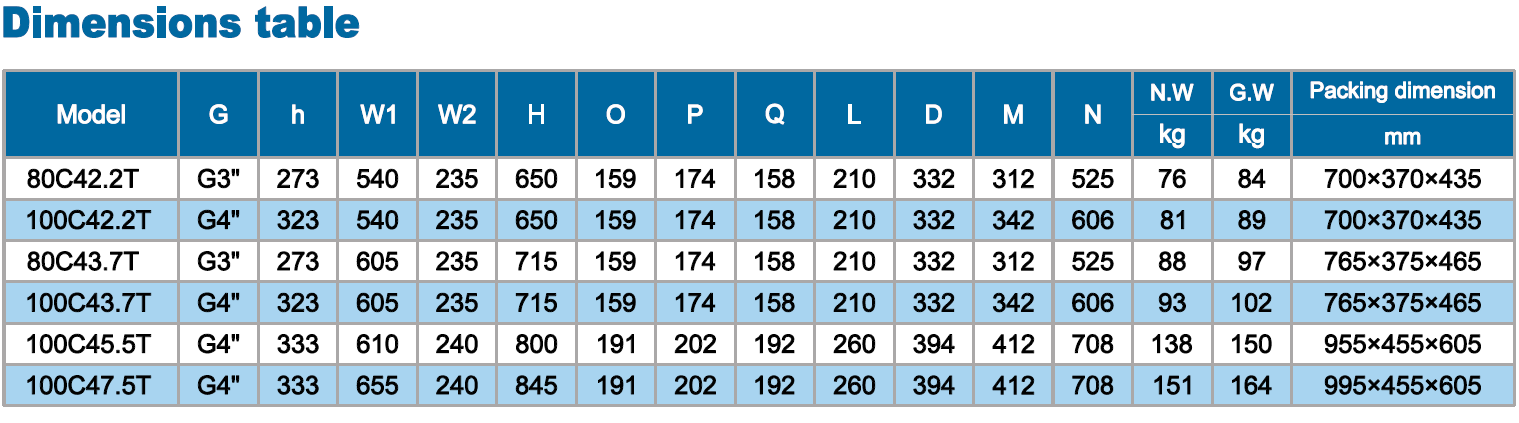

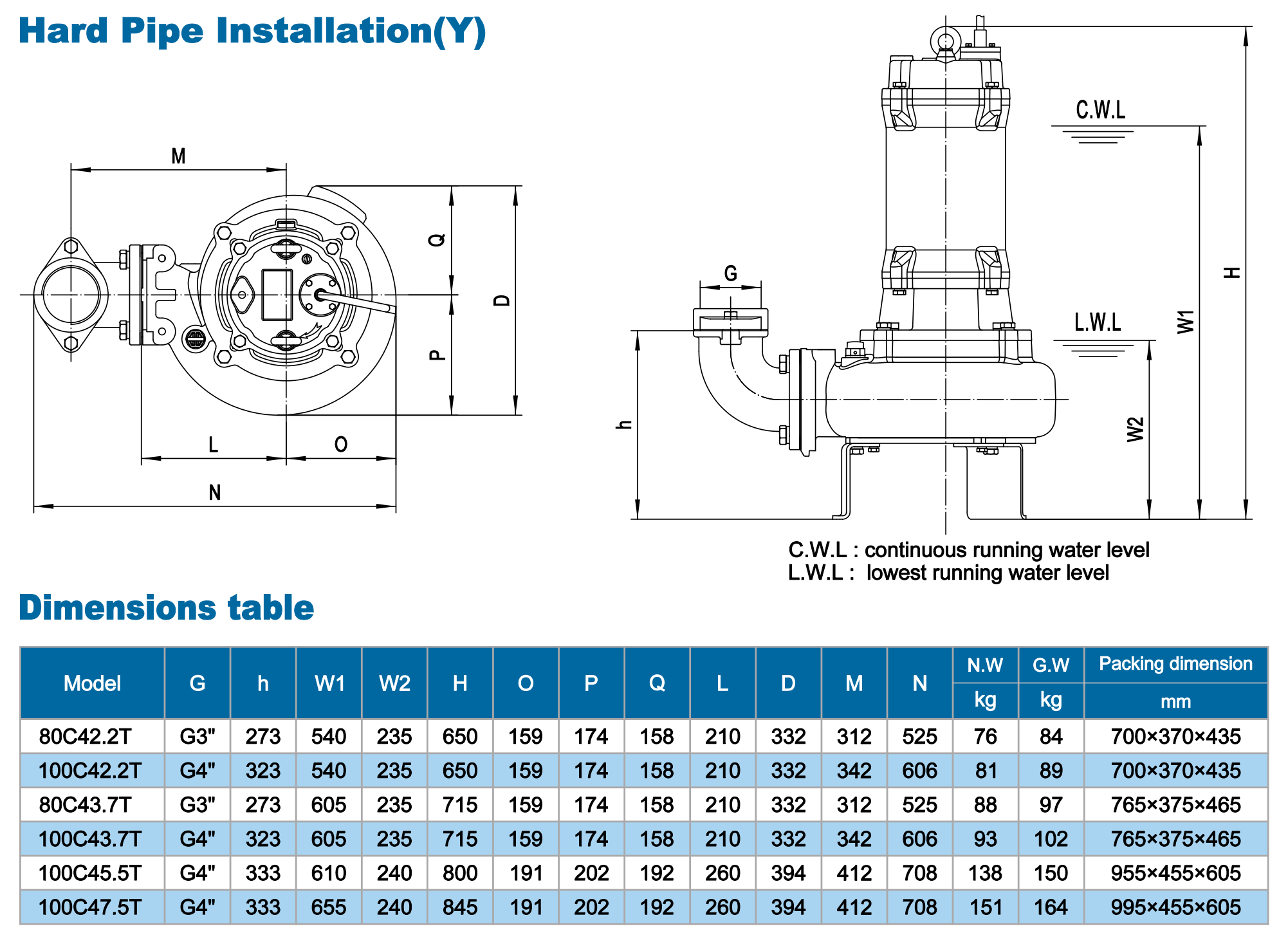

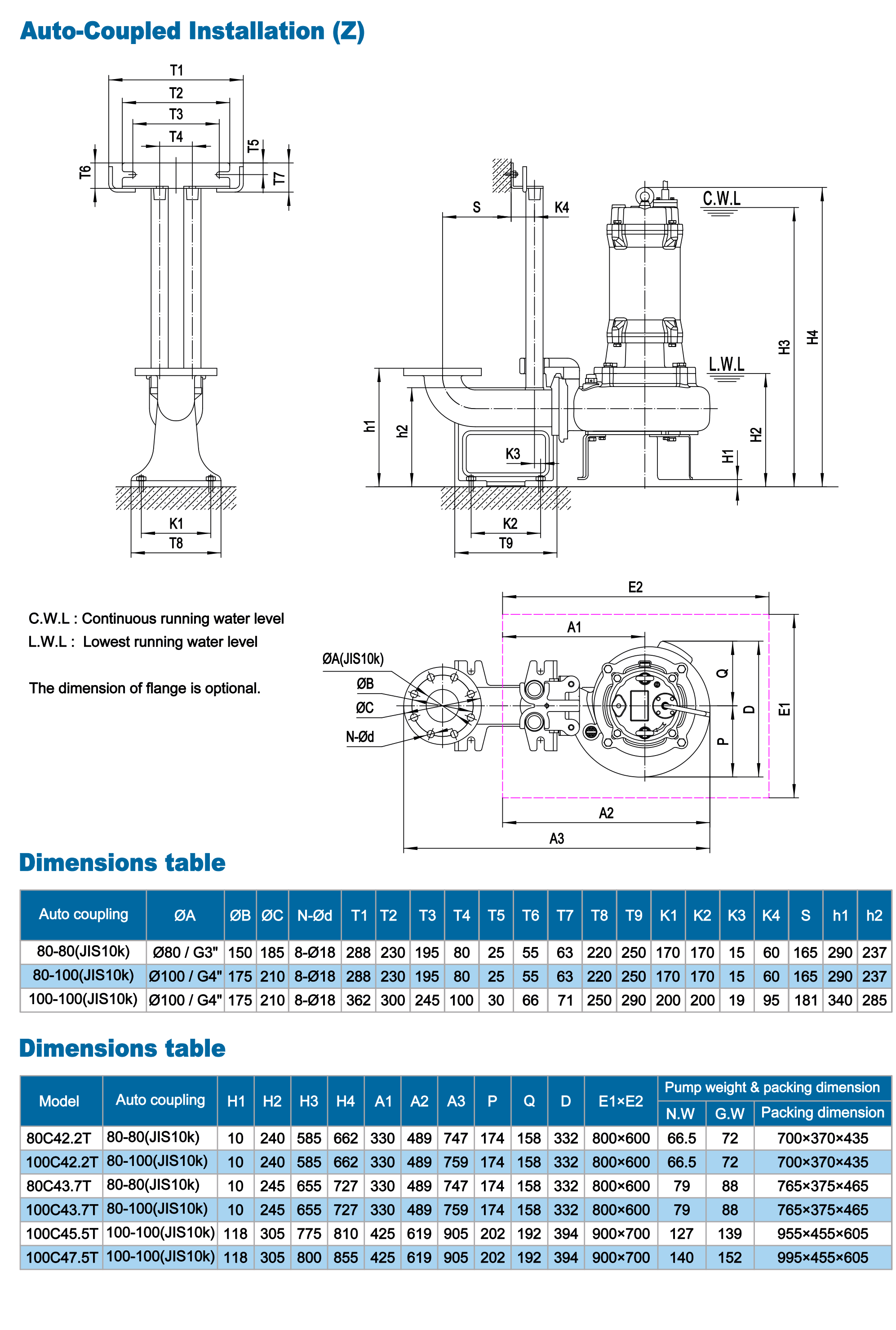

Packing Dimension








document dowload

Consumable Parts
