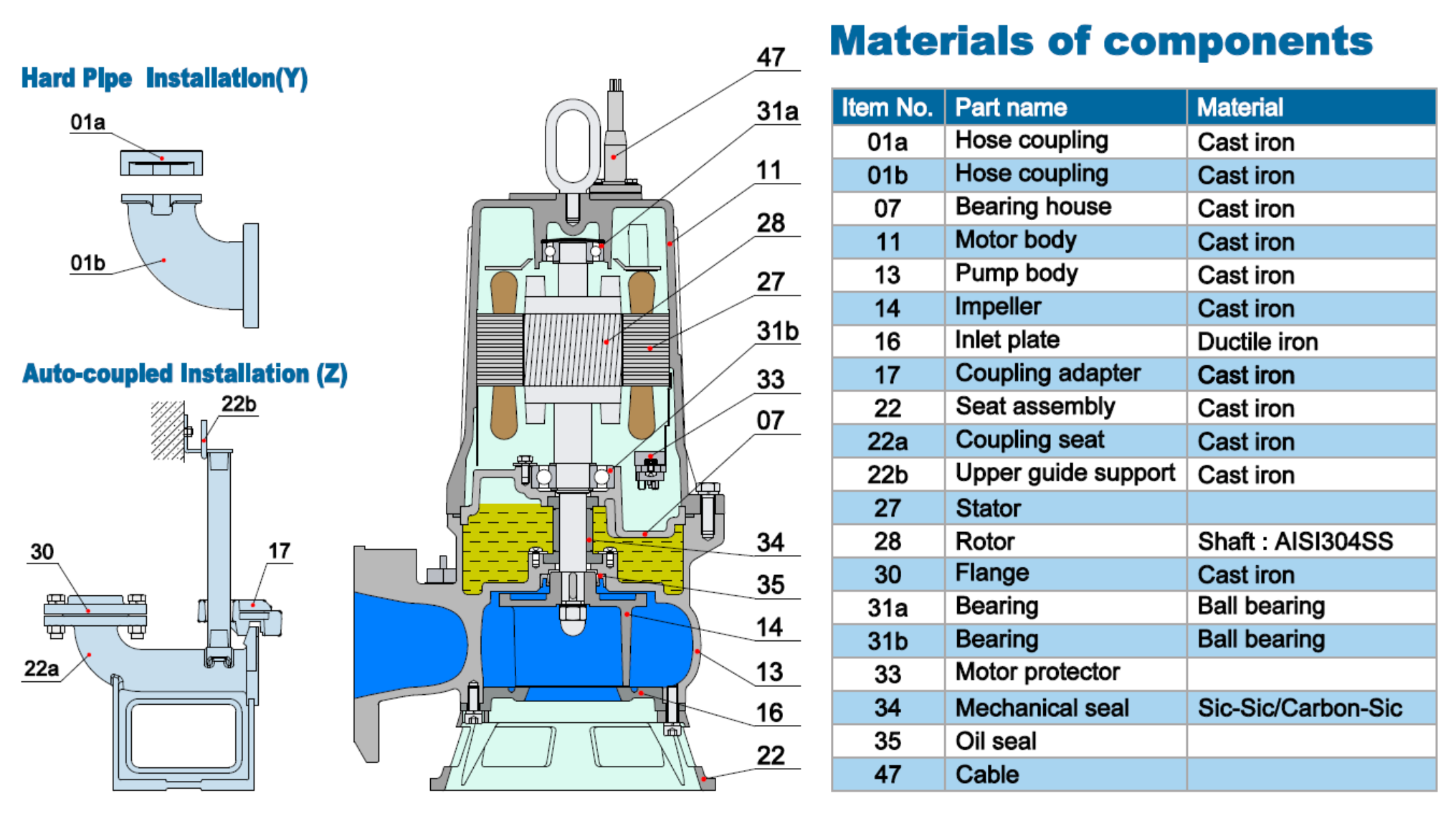

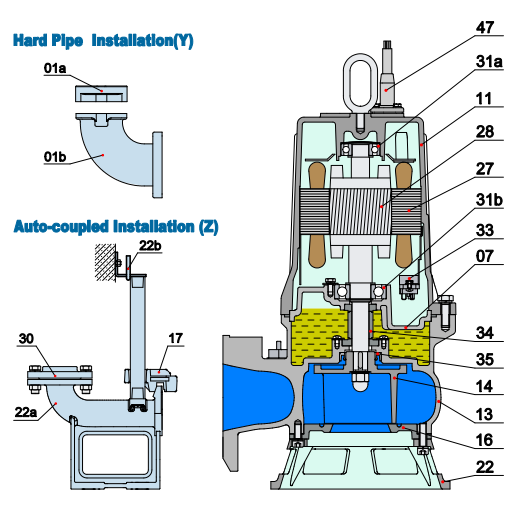

Structure and characteristics

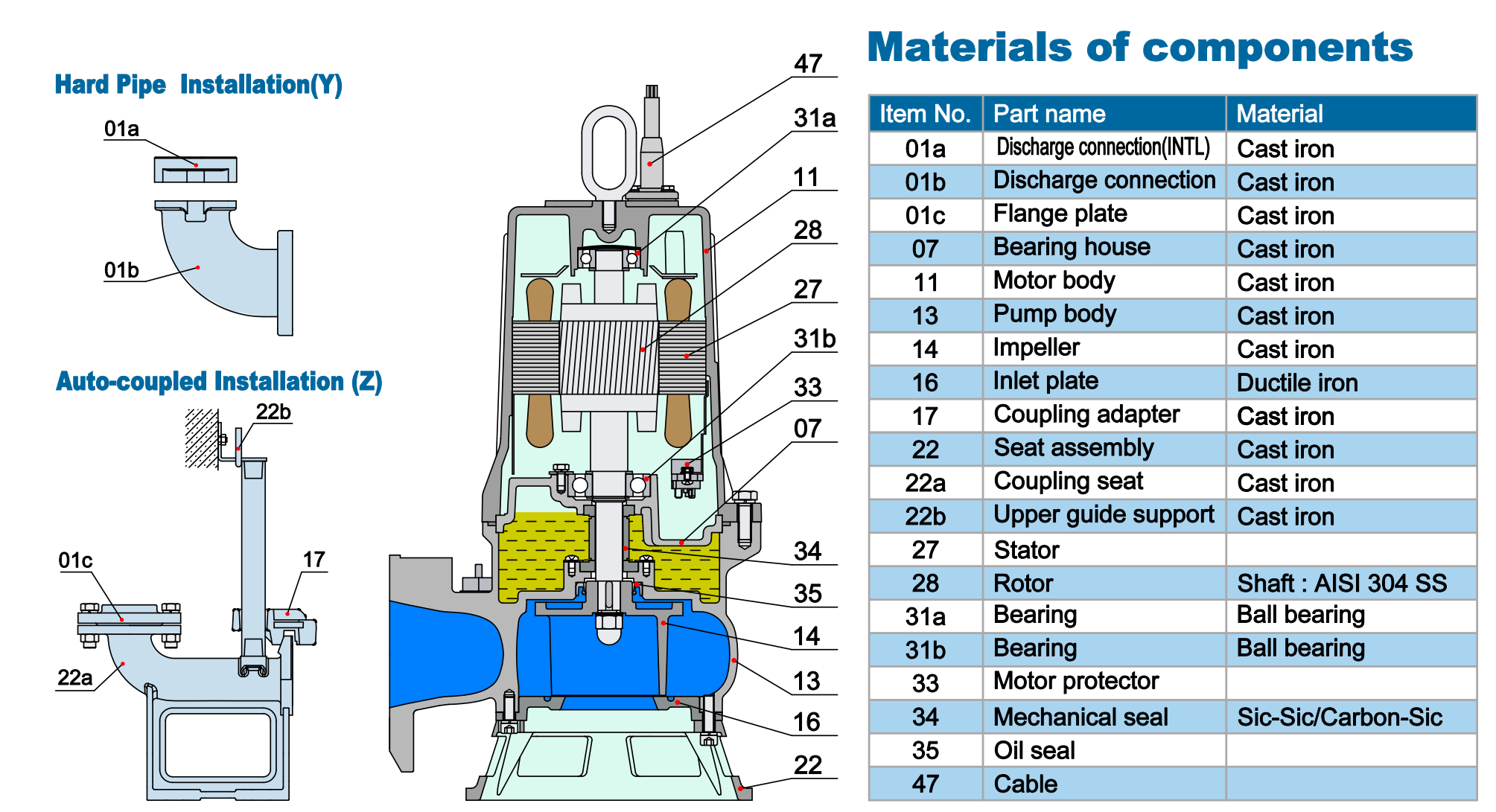

A “cutter mechanism” is provided by the combined action of a carbide blade intergrated into a non-clog impeller and the sawshaped inner surface of a suction cover. This construction ensures that fibrous foreign matter is cut up, and sewage is transferred without clogging.

Application

The C series is especially useful for pumping waste water containing soft, easy broken fibers from slaughter house and blogas plants.

Specification

Insulation class: F

Protection class:IP68

Water temperature: up to 40℃

PH: 6-10

Density of liquid: up to 1.3g/cm³

Power supply: three phase 380V± 10%, 50Hz

                        three phase 380V± 10%, 60Hz

Motor protection: built in

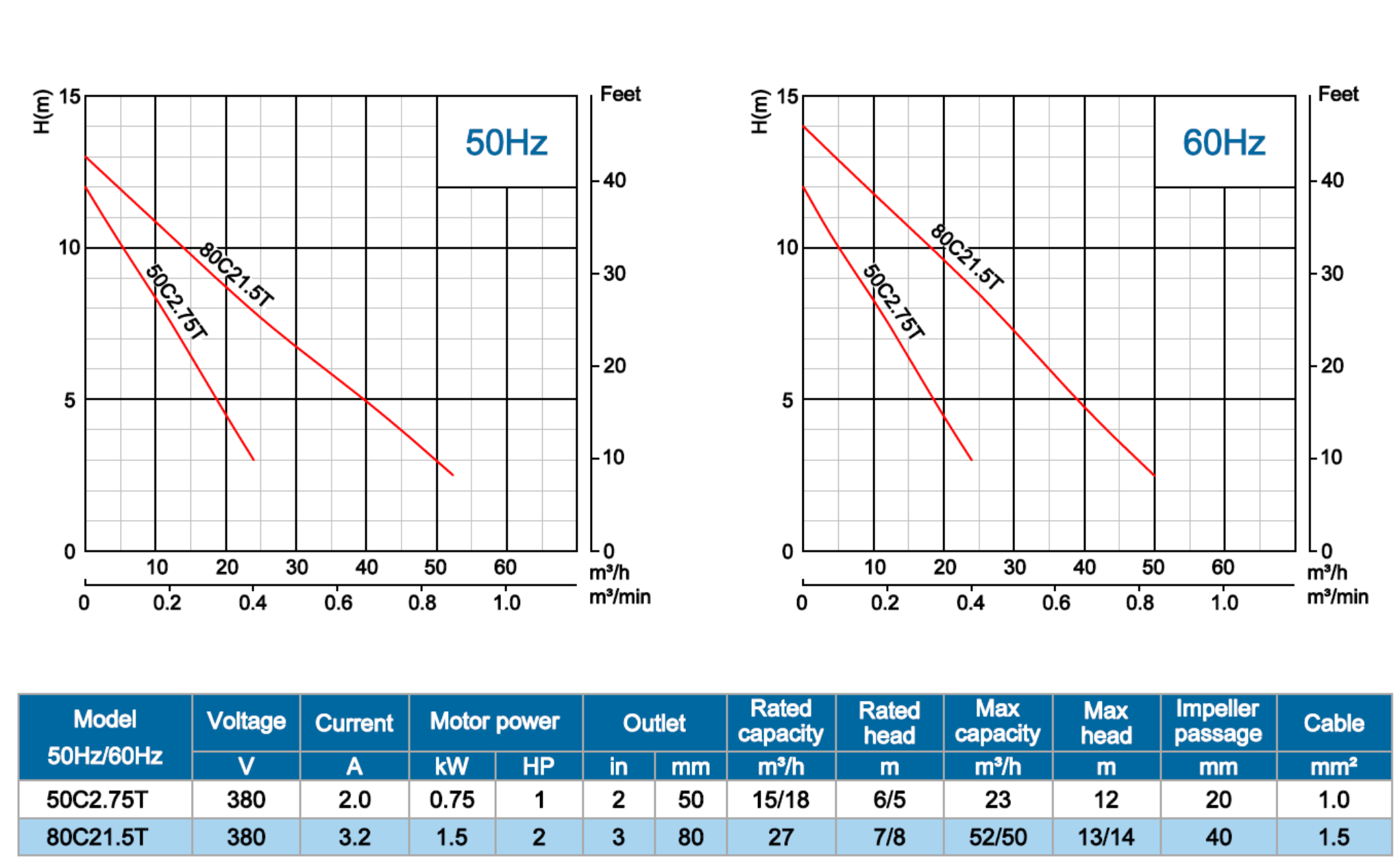

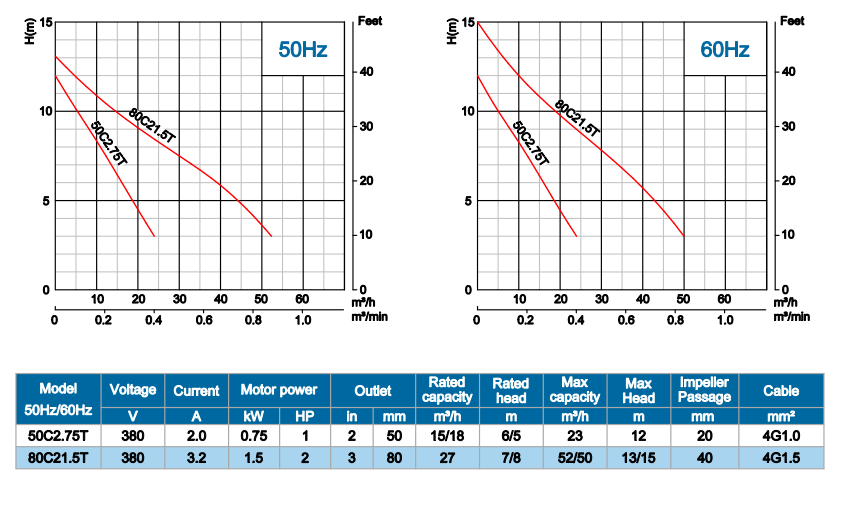

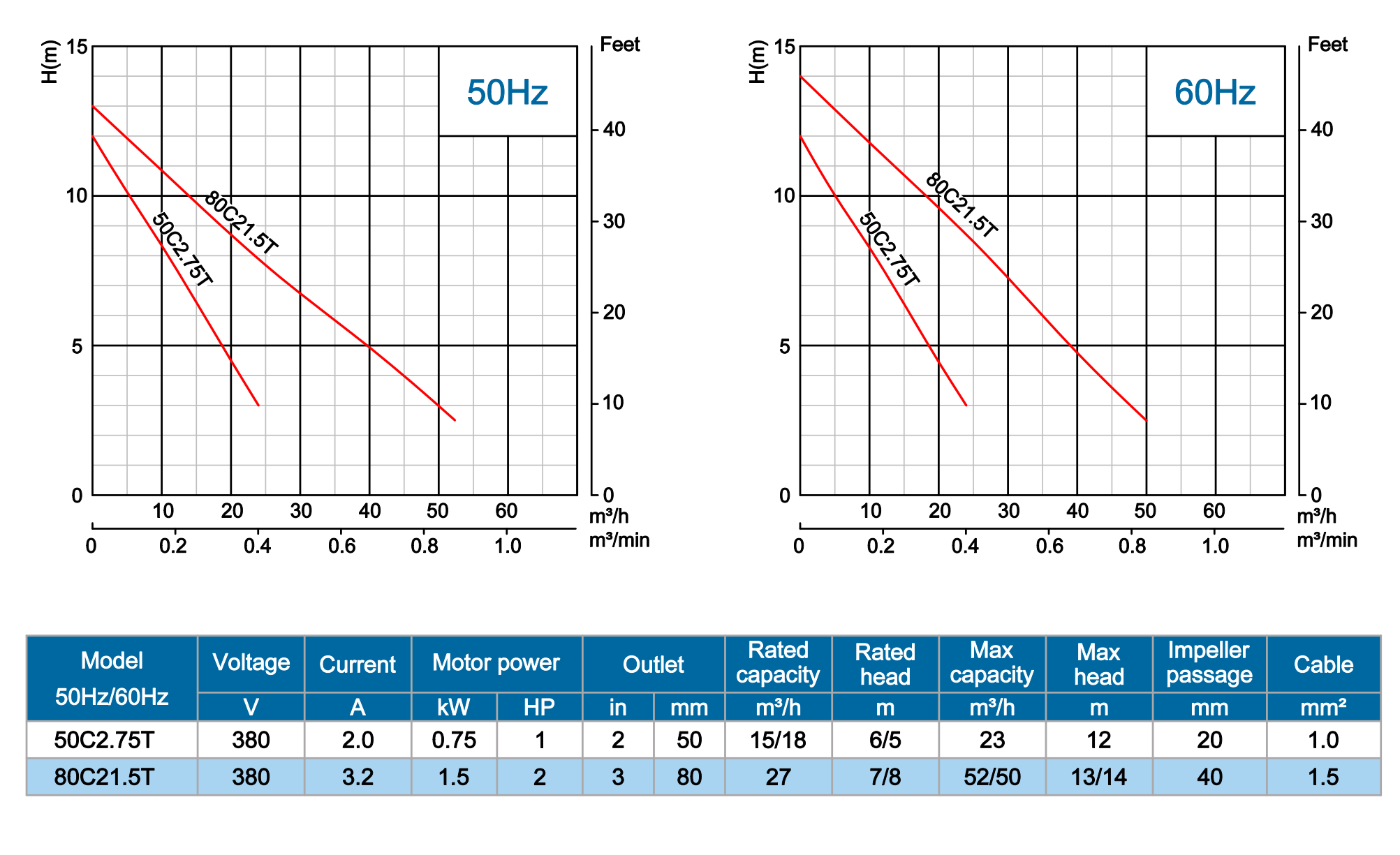

Capacity:up to 52m³/h

Head: up to 14m

Maximum immersion depth:10m

Cable length:8m
