Structure and characteristics

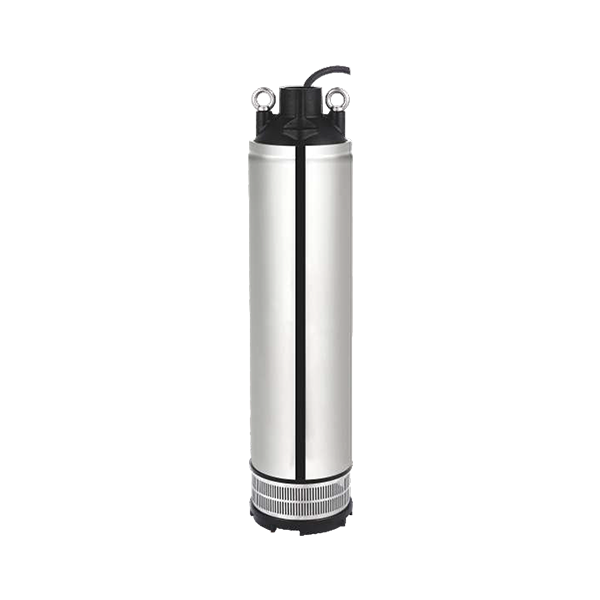

Close coupled multistage submersible pumps in chrome-nickel stainless steel.

Hydraulic part under the motor and motor cooled by the pumped water for safe operation even with the pump only partially immersed.

Double shaft seals with interposed oil chamber.

The suction strainer prevents entrance of solids with diameter larger than 2mm.

Application

For water supply from wells, tanks or reservoirs

For domestic or industrial use

For gardening and irrigation through utilization of rainwater tanks

Specification

insulation class:F

Protection class: IP68

Water temperature up to 40°C

The solids in the water is less than 0.02%(heavy proportion)

Minimum internal diameter of well 155mm

Minimum immersion depth: 150mm

Maximum immersion depth: 20m(with suitable cable length)

Continuous operation

Power: single-phase: 1.3 kW～ 2.2kW

             three-phase:1.3 kW～3kW

Power supply:

MXSM: single phase 230v±10%,50Hz; 220V±10%,60Hz

Control box with capacitor, thermal device, float switch (optional)

MXS: three phase 230v±10%,50Hz; 220V±10%,60Hz

          three phase 400v±10%,50Hz;380V±10%,60Hz

Cable length:15m
