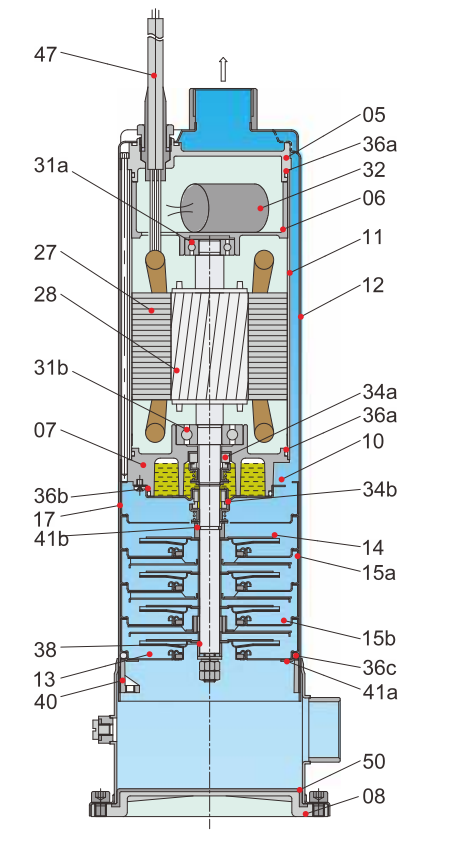

Structure and characteristics

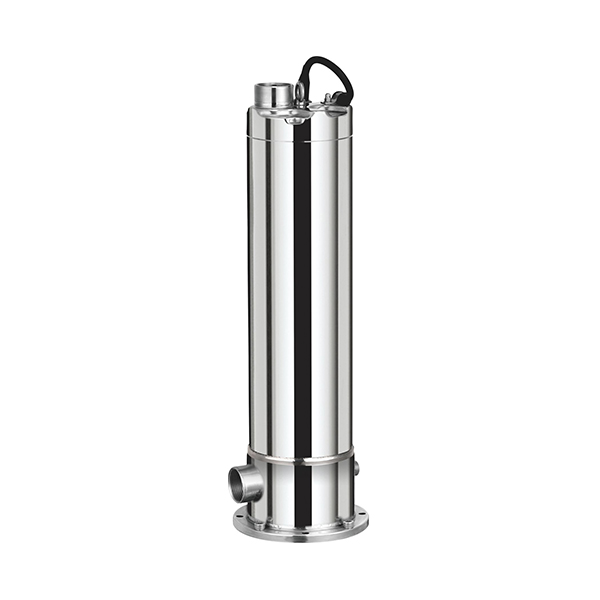

Close coupled multistage submersible pumps in chrome-nickel stainless steel.

With a variety of application such as diving and pipeline pressurization.

Hydraulic part under the motor and motor cooled by the pumped water for safe operation even with the pump entirely exposed to air.

Double shaft seals with interposed oil chamber.

The suction strainer prevents the entrance of solids with diameter bigger than:2mm

Application

For water supply from wells, tanks or reservoirs

For domestic or industrial use

For gardening and irrigation through utilization of rainwater tanks

For pipeline pressurization

Specification

insulation class:F

Protection class: IP68

Water temperature up to 35°C

Minimum internal diameter of well 132mm

Minimum immersion depth: 100mm

Maximum immersion depth: 20m(with suitable cable length)

Continuous duty

Power: single-phase: 0.55 kw-1.3kw

                      three-phase: 0.55 kw-1.3kw

Power supply

MXSM: single phase 230v+10%, 50HZ: 220V+10%, 60HZ

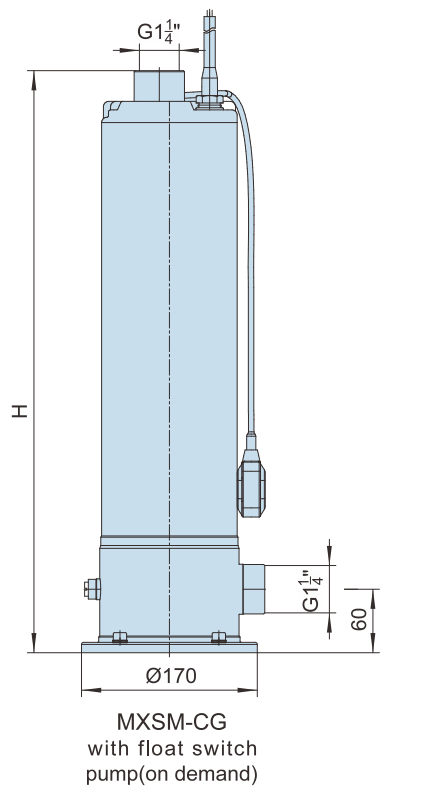

Control box with capacitor. And thermal device; Float switch(on demand)

MXS: three phase 230v+10%, 50HZ: 220V+10%, 60HZ

          three phase400v±10%,50Hz;380V±10%,60Hz

Cable length: 15m
