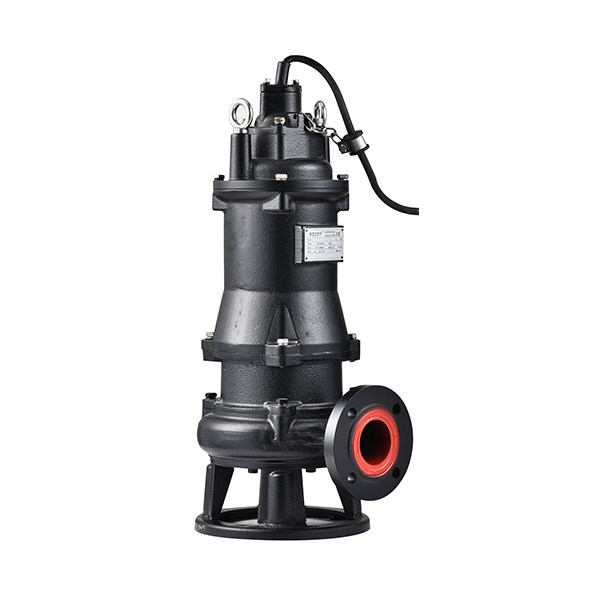

Z SERIES SEWAGE PUMP 0.75~7.5kW 2P

Structure and characteristics

Designed with a unique spiral structure and sharp blade, the impeller has a efficiency hydraulic performance and great cutting performance. Waste materials such as cotton cloth and fiber fabrics can easily pass through pipes after being cut into pieces.

Application

The Z series is especially useful for pumping waste water containing soft and all kinds of high strength fiber from slaughter house and biogas plants.

Specification

Insulation class: F

Protection class: IP68

Water temperature: up to 40

PH: 6-10

Density of liquid: up to 1.3g/cm³

Power supply: three phase 380V±10%, 50Hz

                        three phase 380V±10%, 60Hz

Capacity: up to 132m³/h

Head: up to 41m

Cable length: 8m

Max water depth: 10m

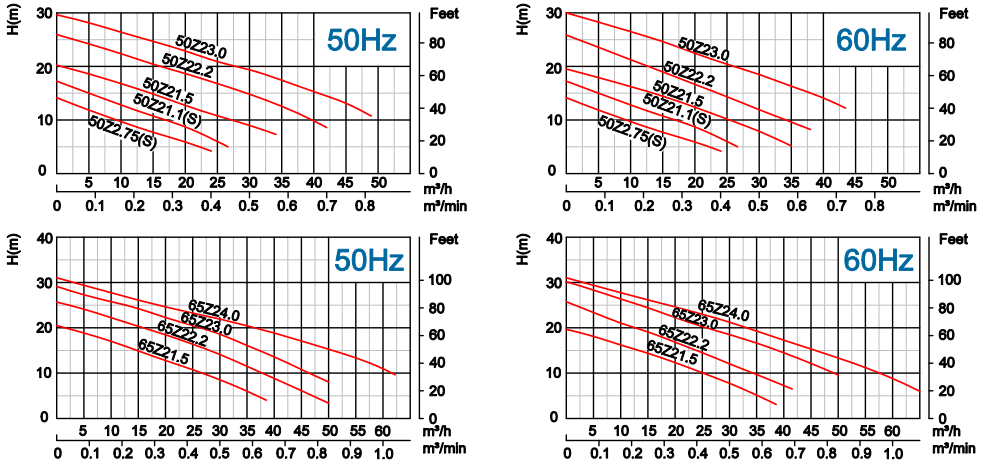

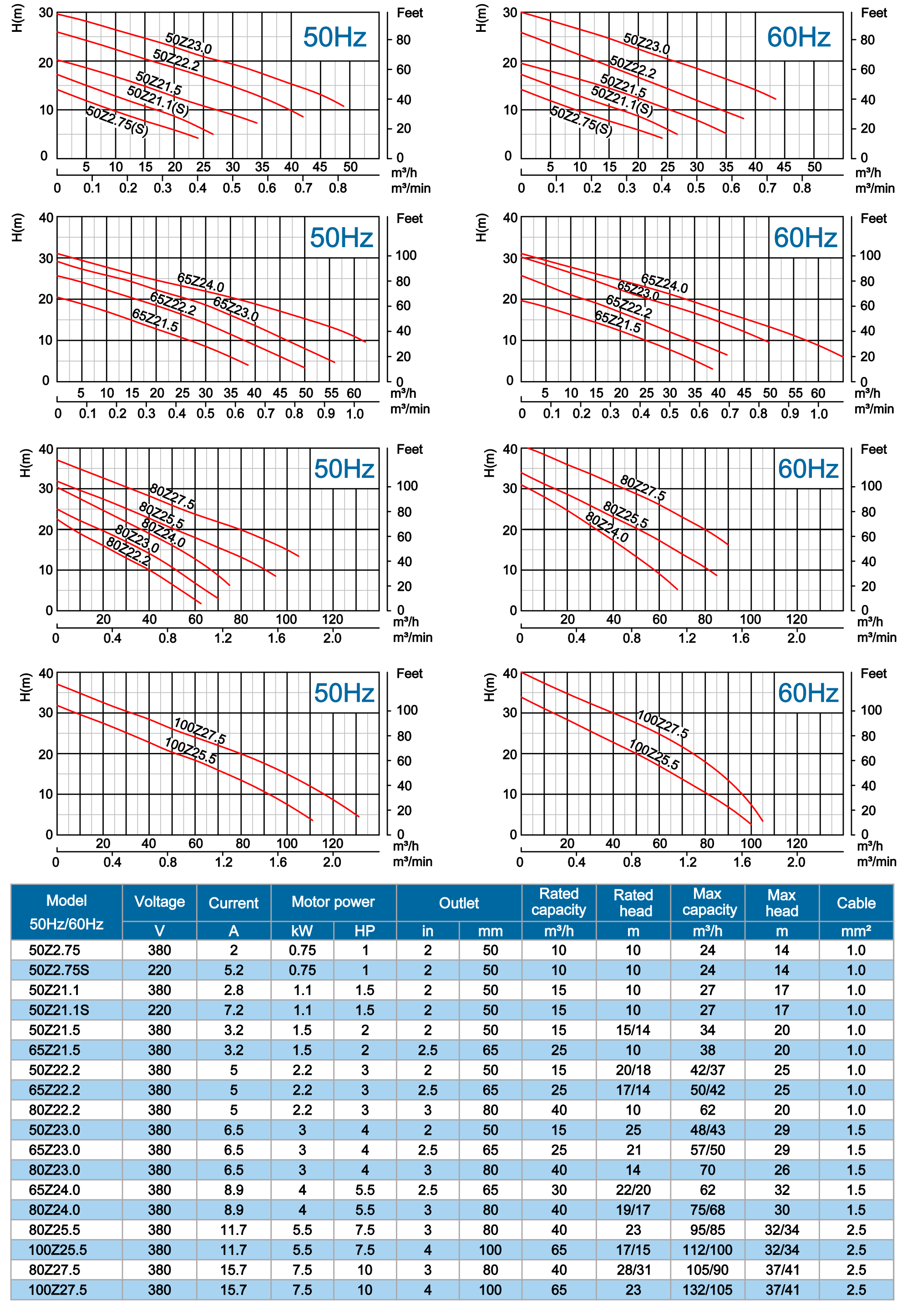

Series Product Specfications

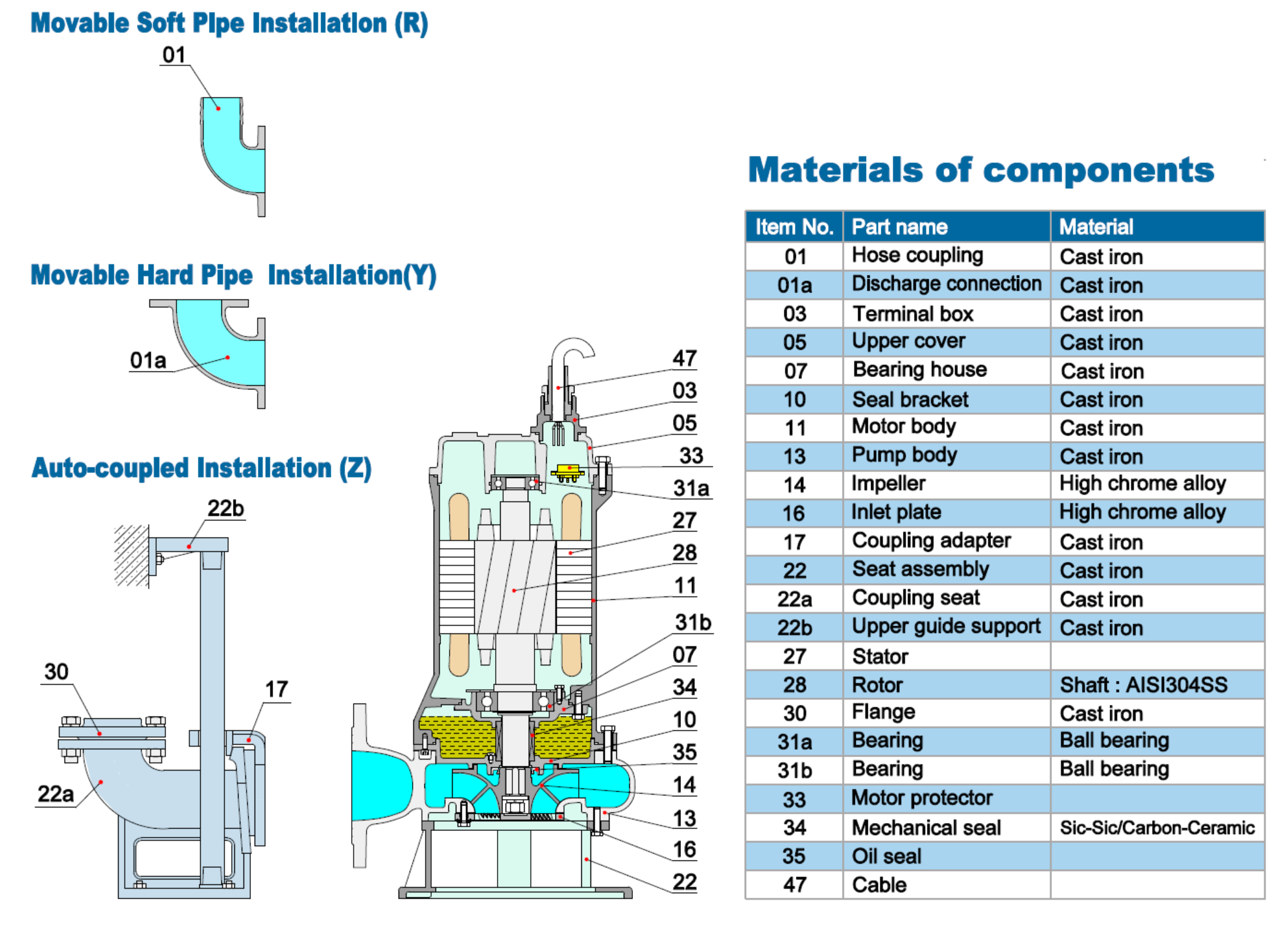

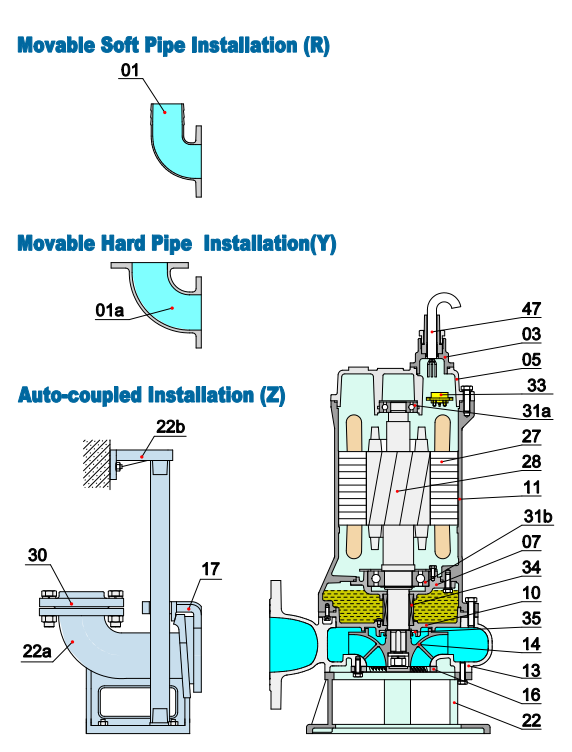

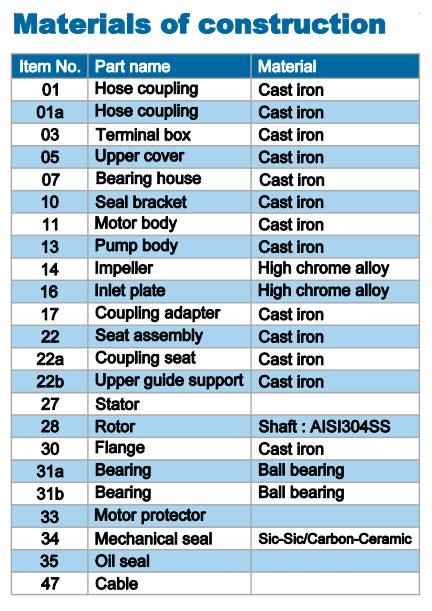

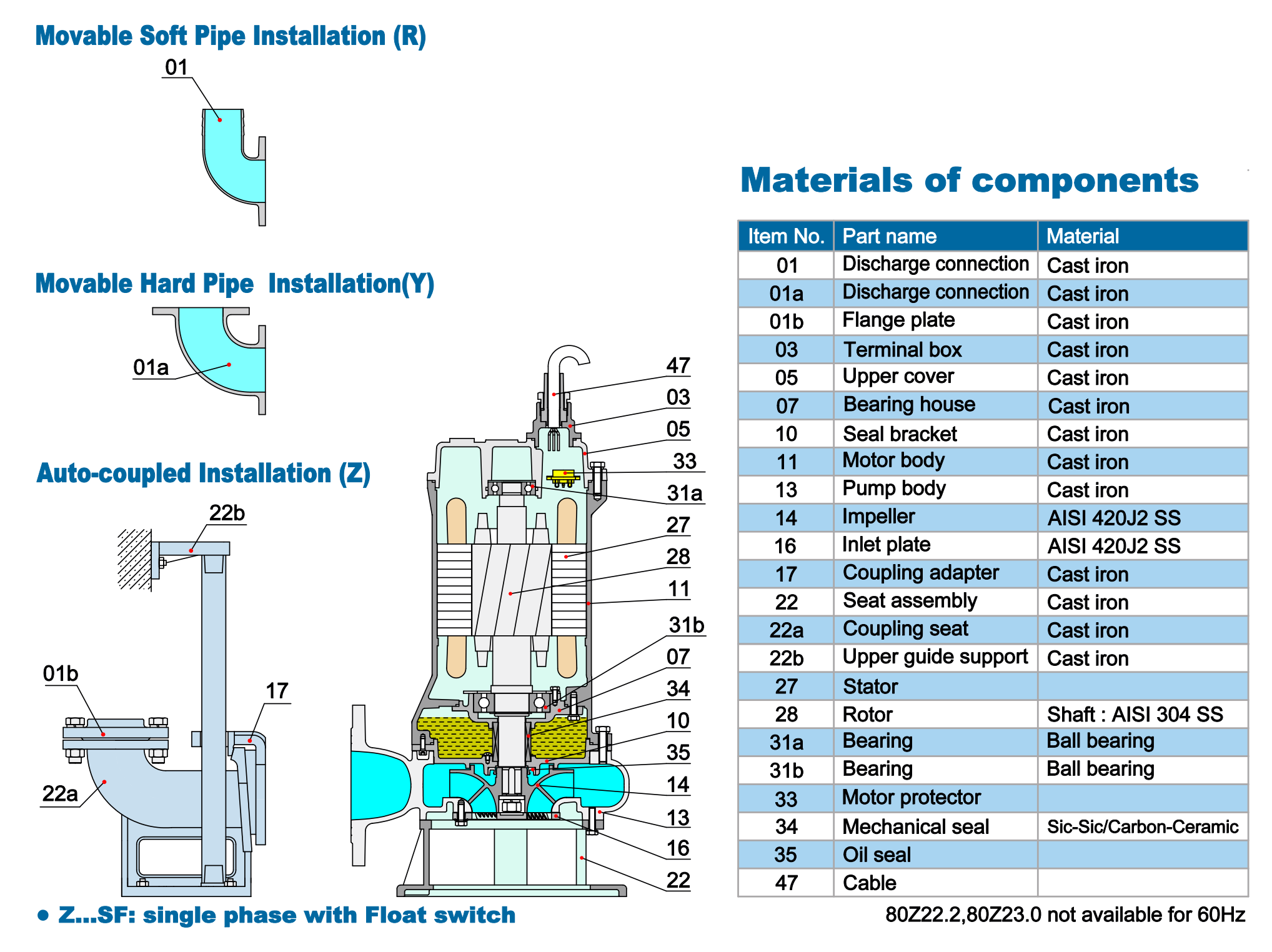

Material of Construction

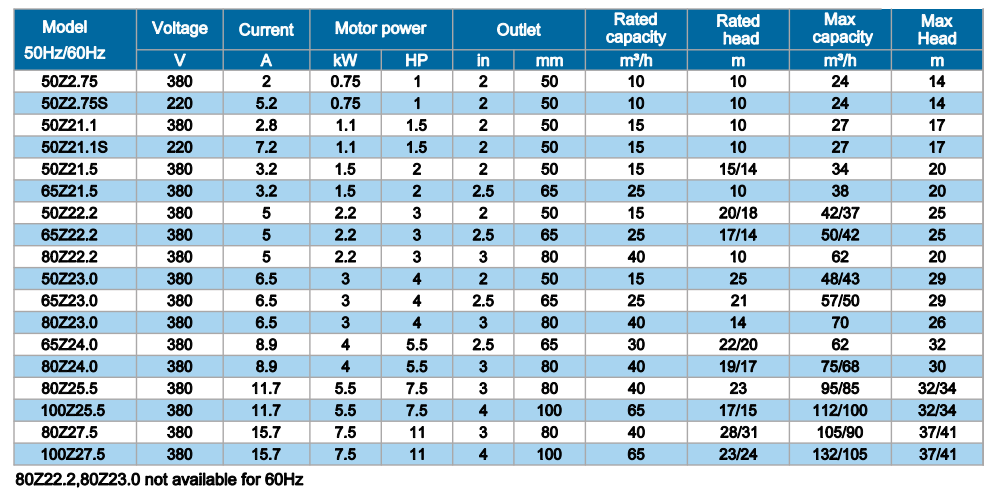

Specification

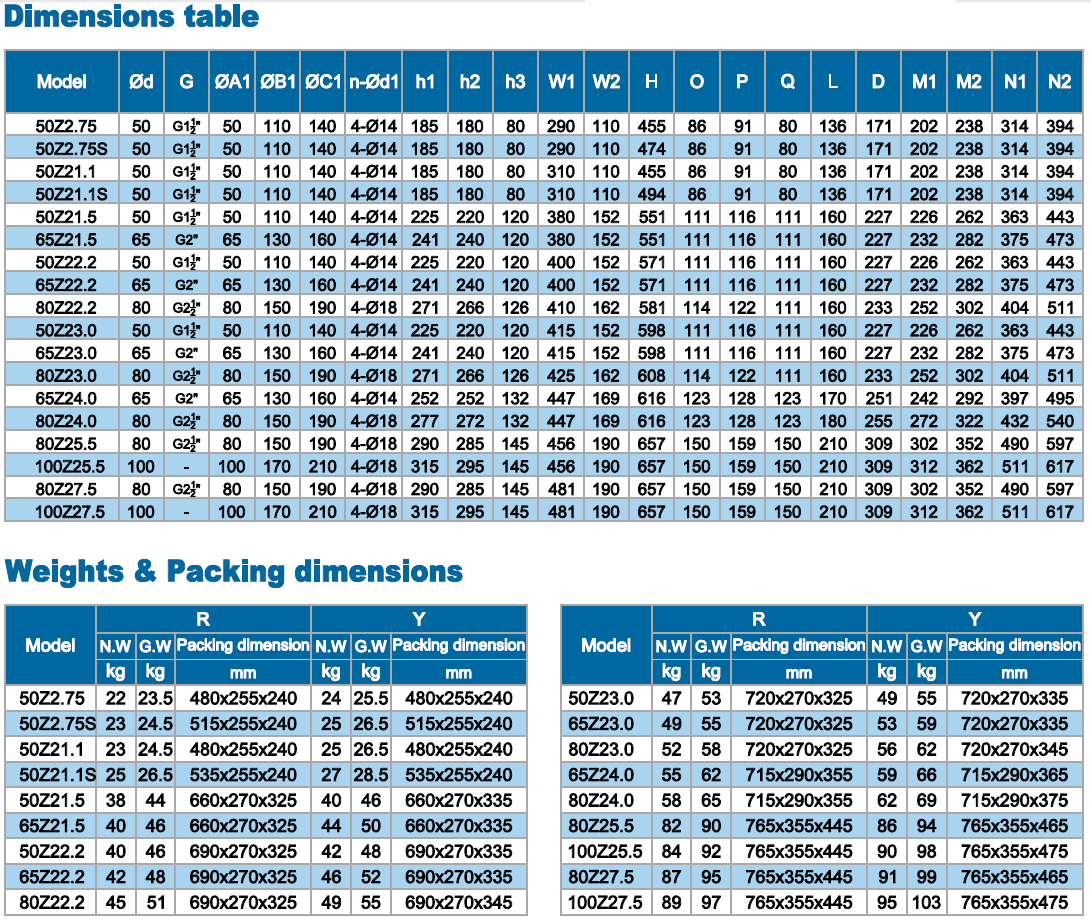

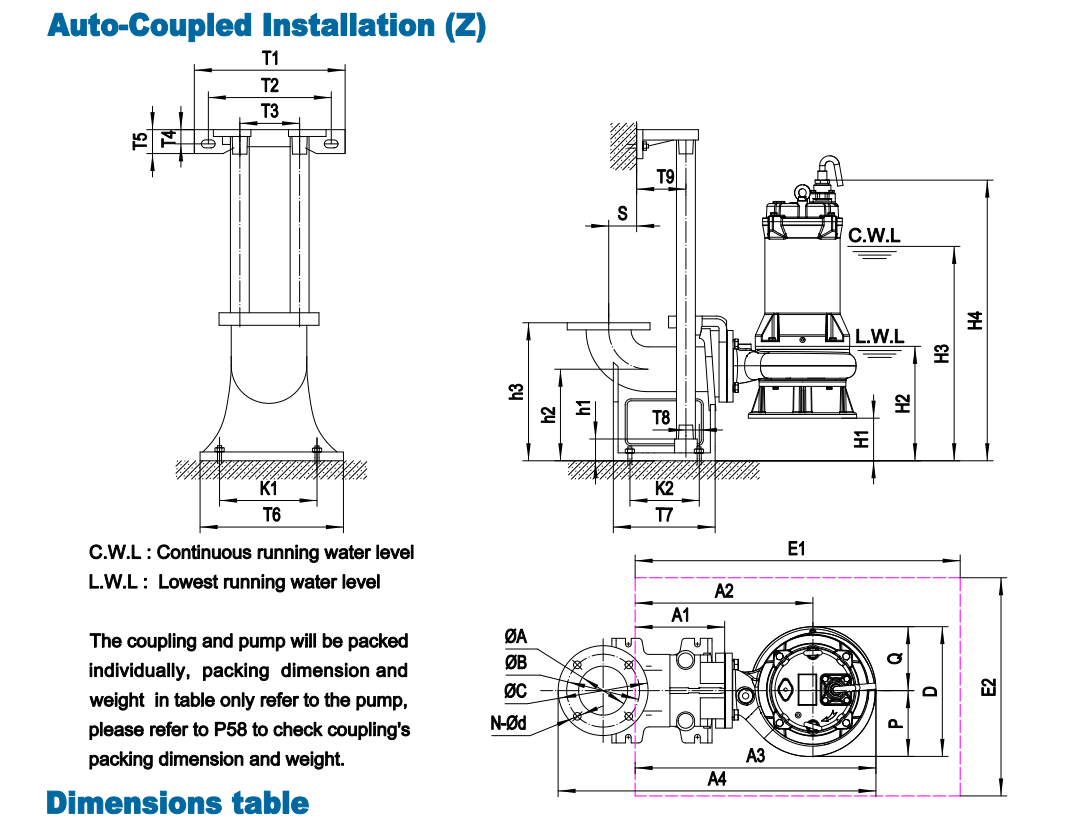

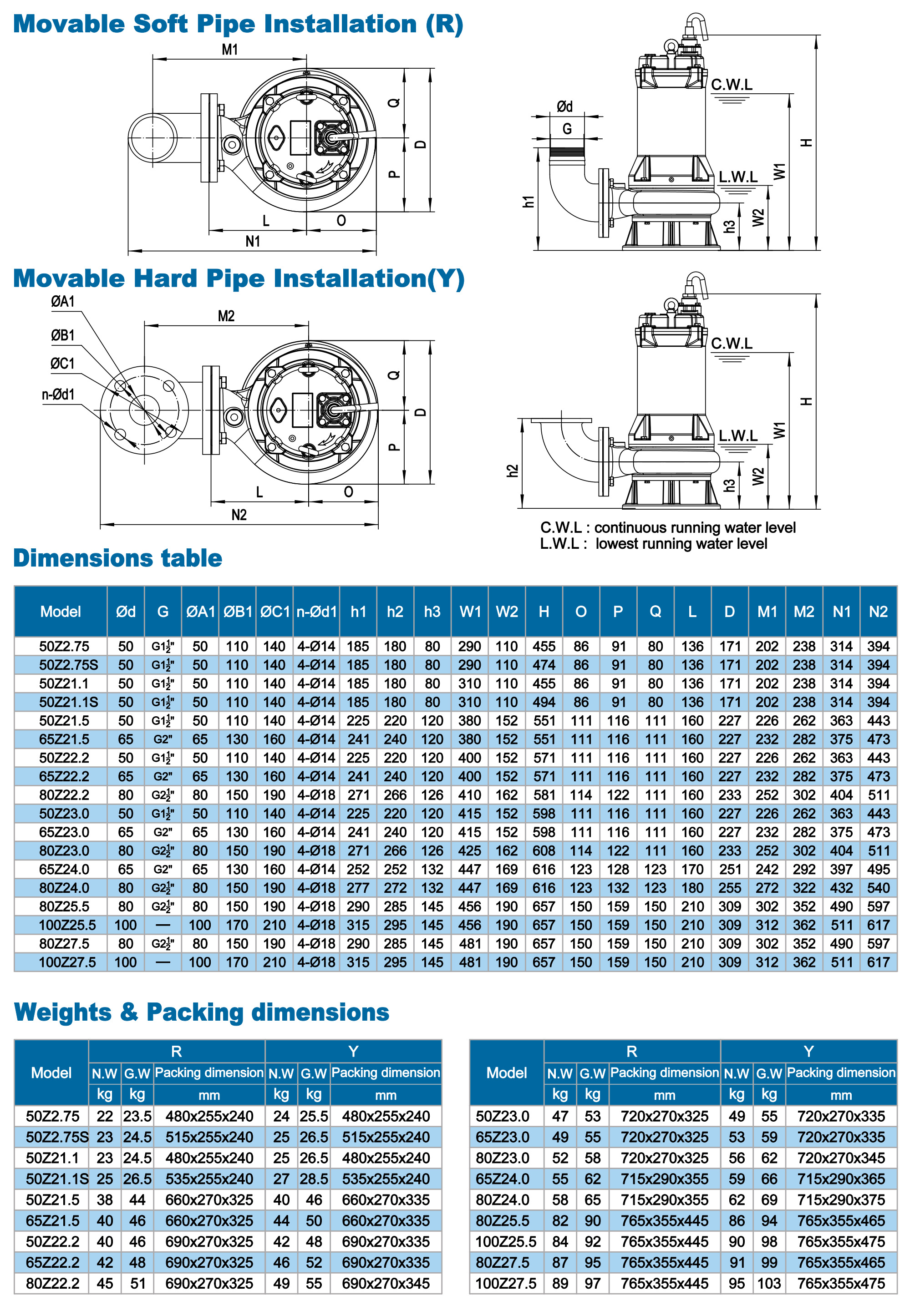

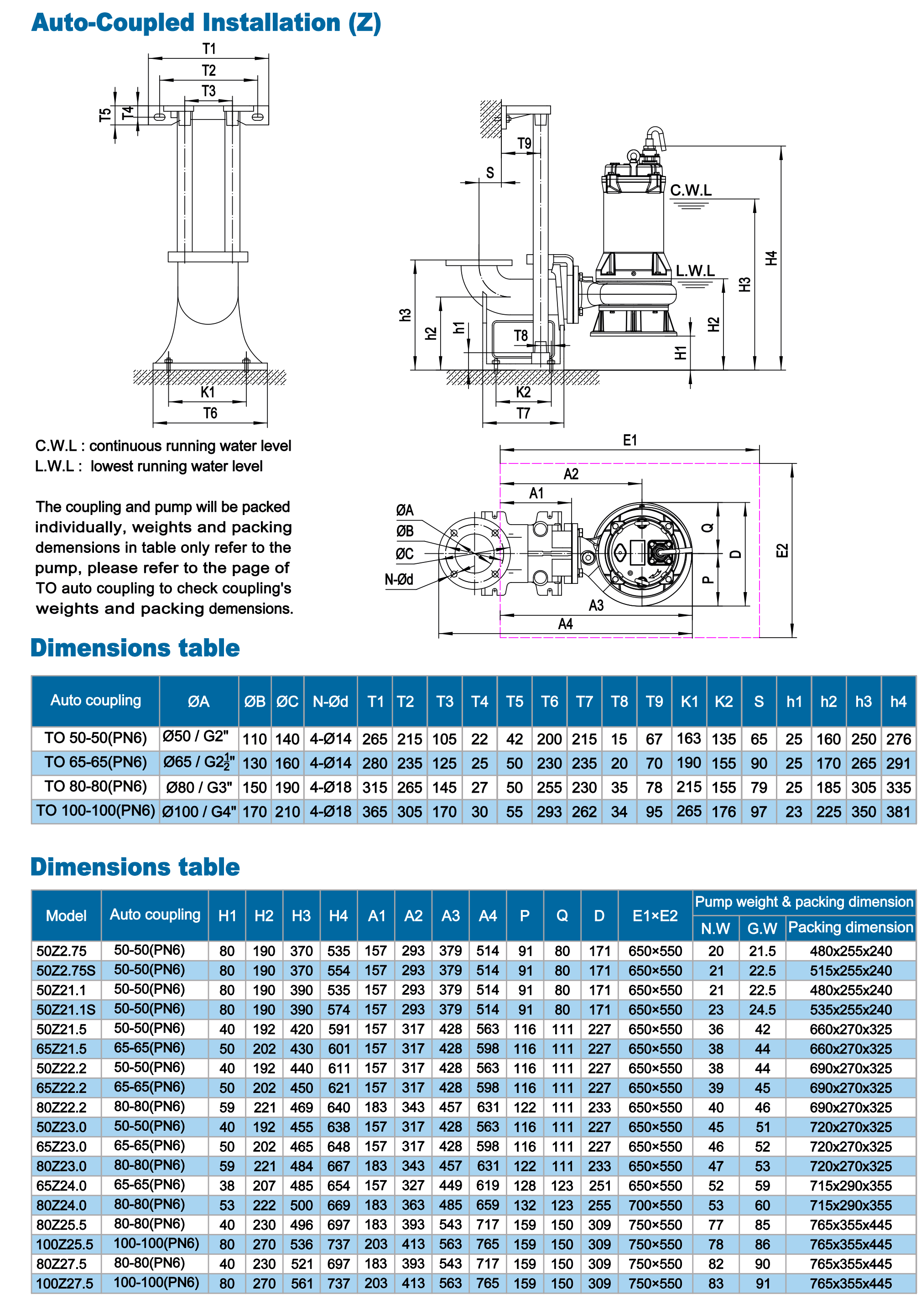

Packing Dimension







Consumable Parts

Z SERIES SEWAGE PUMP 0.75~7.5kW 2P

pump body

Z SERIES SEWAGE PUMP 0.75~7.5kW 2P

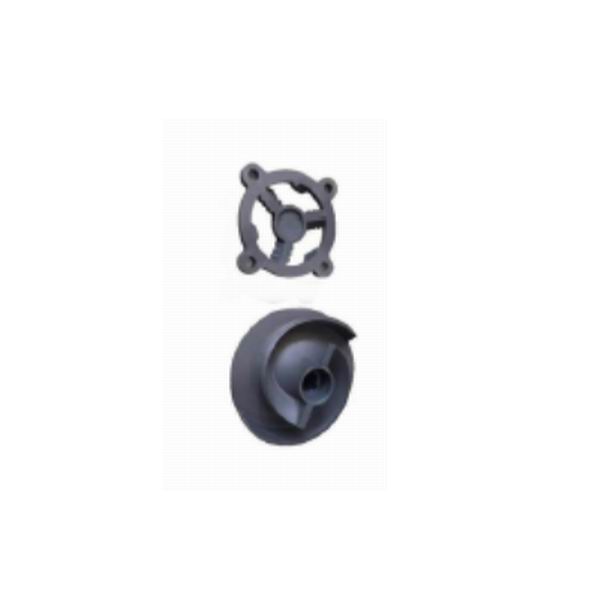

cutting

Z SERIES SEWAGE PUMP 0.75~7.5kW 2P

impeller

Z SERIES SEWAGE PUMP 0.75~7.5kW 2P

oil housing

No matter what, why, when and where we are always ready to support. Please get in contact with us and hear what we can offer.
