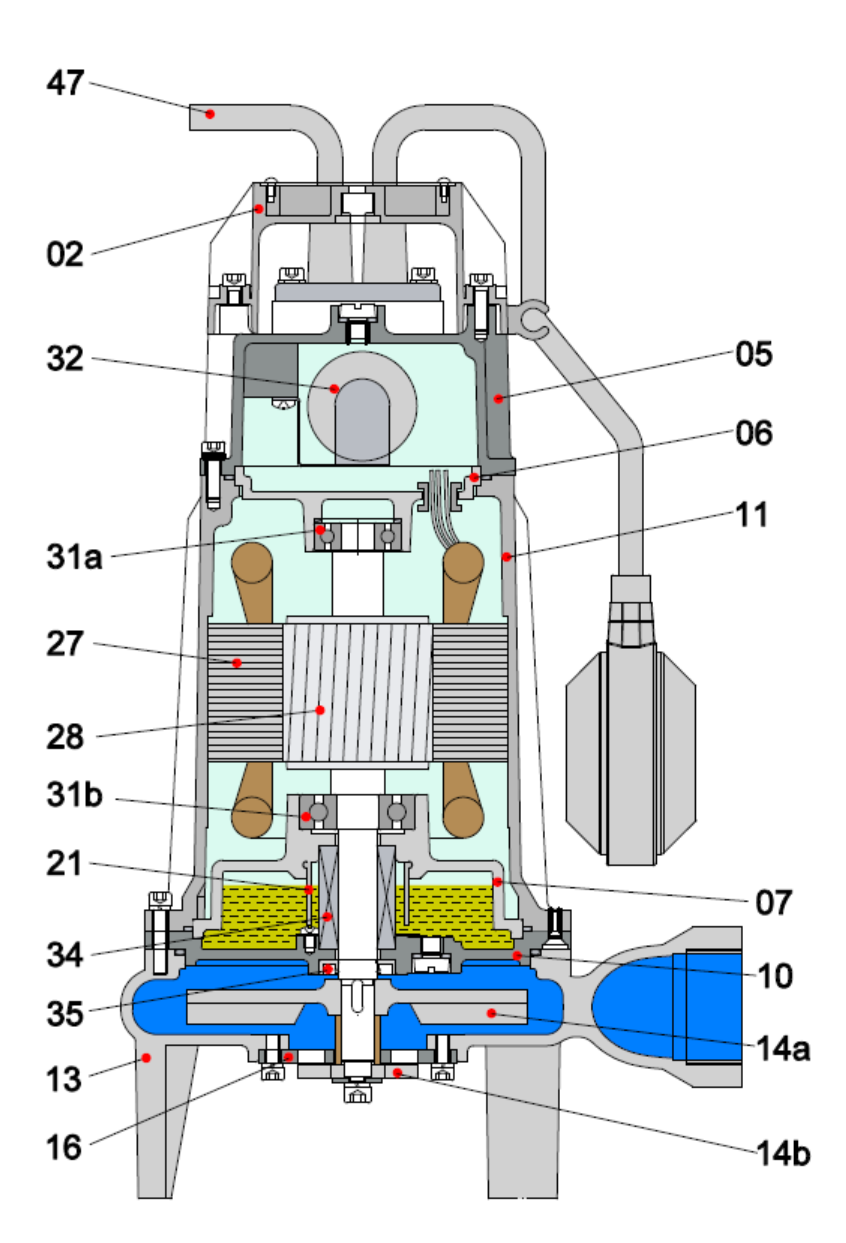

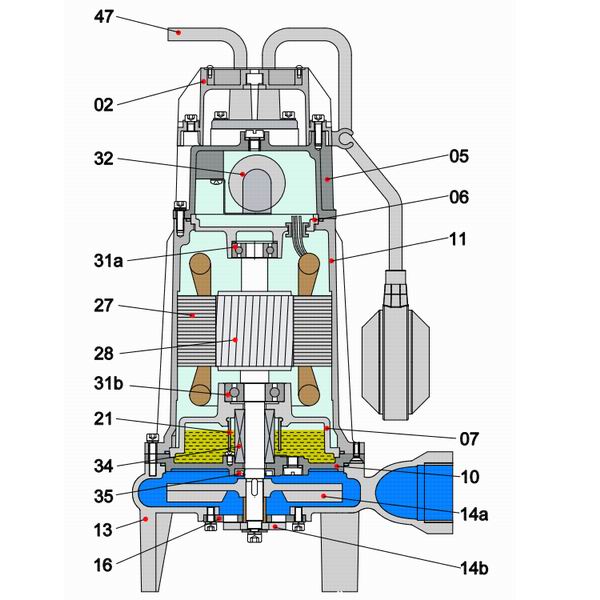

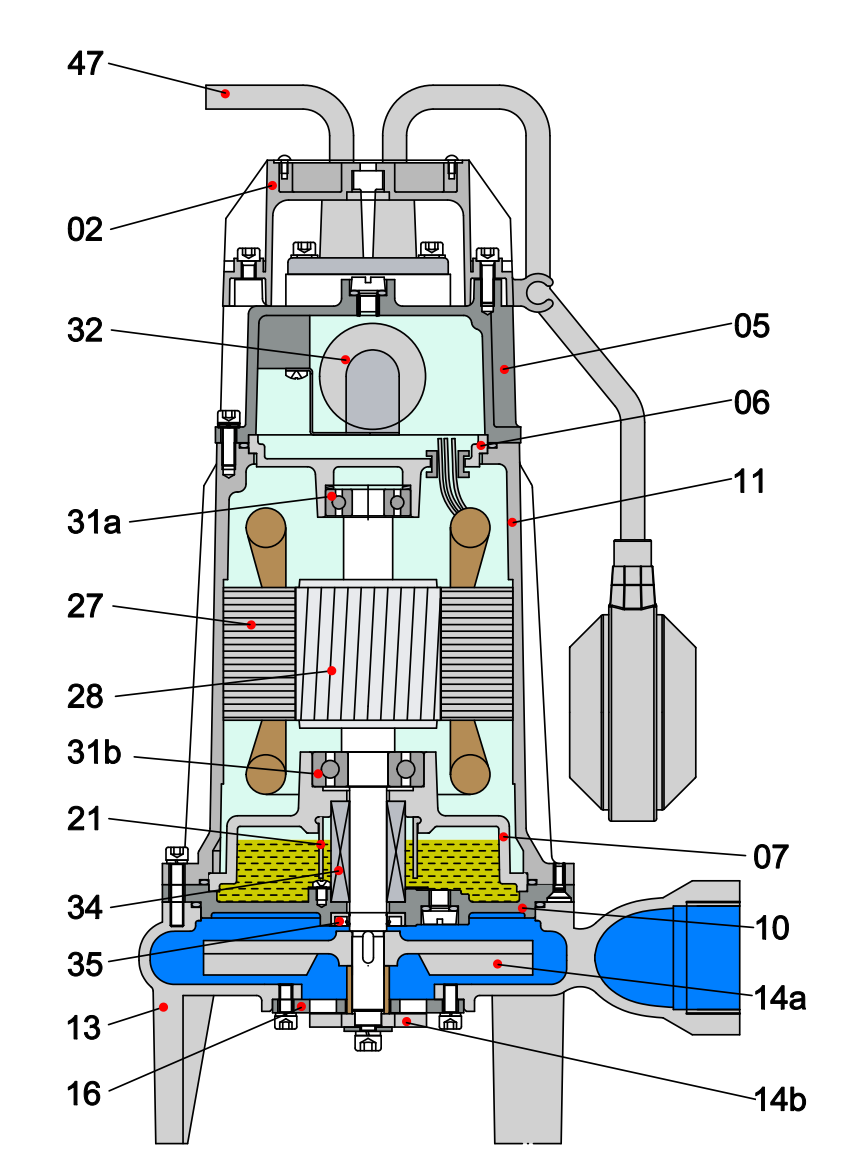

Structure and characteristics

Semi vortex impeller design minimizes clogging situation, maximizes durability and maintains pump performance. A  grinding mechanism is provided at the suction inlet of the pump. Suspended solids in flow are cut into small pieces and  pumped out by a vortex impeller without any fear of causing any clogging in the discharge pipe.

Application

Transferring domestic sewage.

Transferring wastewater from wastewater tanks in hospitals, hotels, department stores, etc.

Transferring and grinding sewage containing plastic bags, fabrics, small bones, etc.

Specification

Water temperature: up to 40℃

PH: 6-10

Power supply: single phase 230V±10%, 50Hz

                        single phase 220V±10%, 60Hz

                        three phase 400V±10%, 50Hz

                        three phase 380V±10%, 60Hz

Insulation class: F

Protection class: IP68

Cable length: 8m

Max water depth: 10m
