FBM SUBMERSIBLE DRAINAGE PUMP

Structure and characteristics

The FBM series is a portable small submersible drainage pump with lightweight design. The small outer diameter allows it to be used in an 8-inch well. The components of FBM series are made of wear-resistant rubber and ductile iron which is with excellent durability.

The water is sucked from the bottom and discharged from the top through the inner layer between the motor case and the water jacket, which provide the highest cooling efficiency for the motor and thus allow continuous operation at low water level. A large gap is between the semi open impeller and the pump body, so the impeller will not easily be stuck by mud or sand. The hose coupling could be installed vertically or obliquely to prevent the soft hose pipe from folding or bending.

Application

Civil engineering, building sites, basements or other utility pits, rainwater and mud water

Specification

Water temperature: up to 40°C

PH: 6.5 to 8.5

Power supply: single phase 220V ± 10%, 50Hz, 60Hz

Insulation class: F

Protection class: IP68

Cable length: 8m

Max water depth: 10m

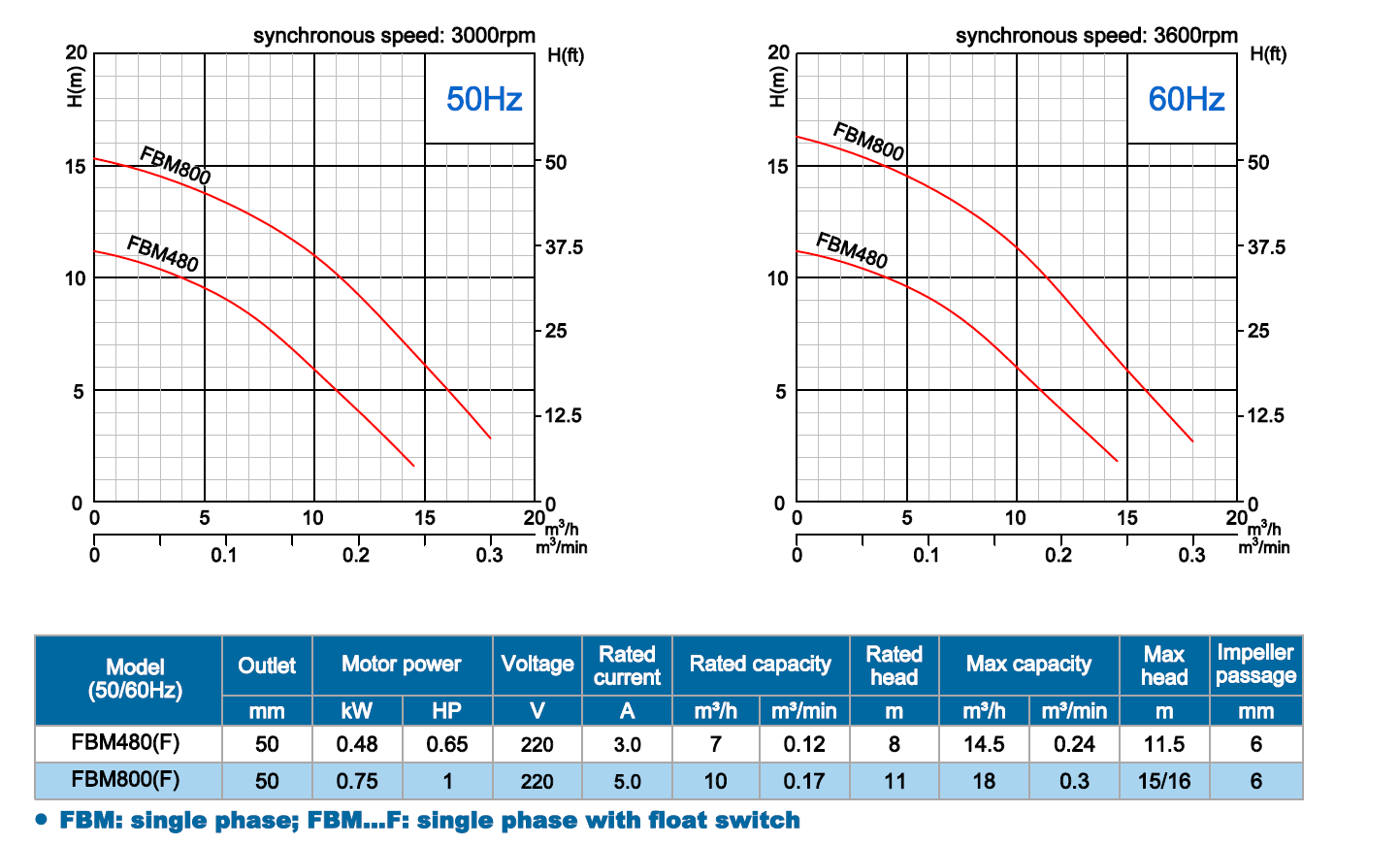

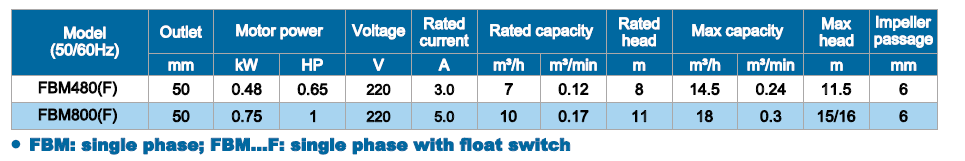

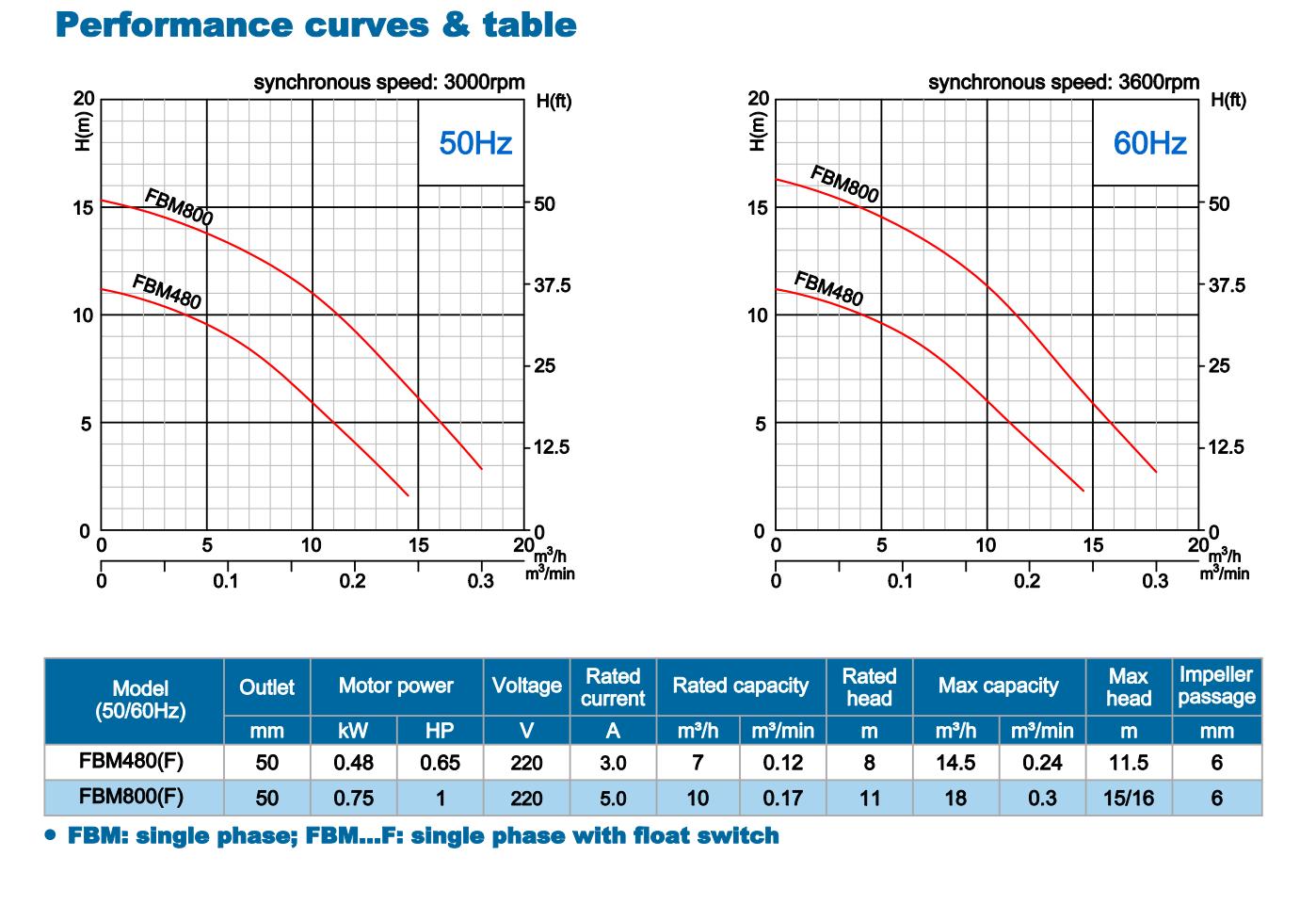

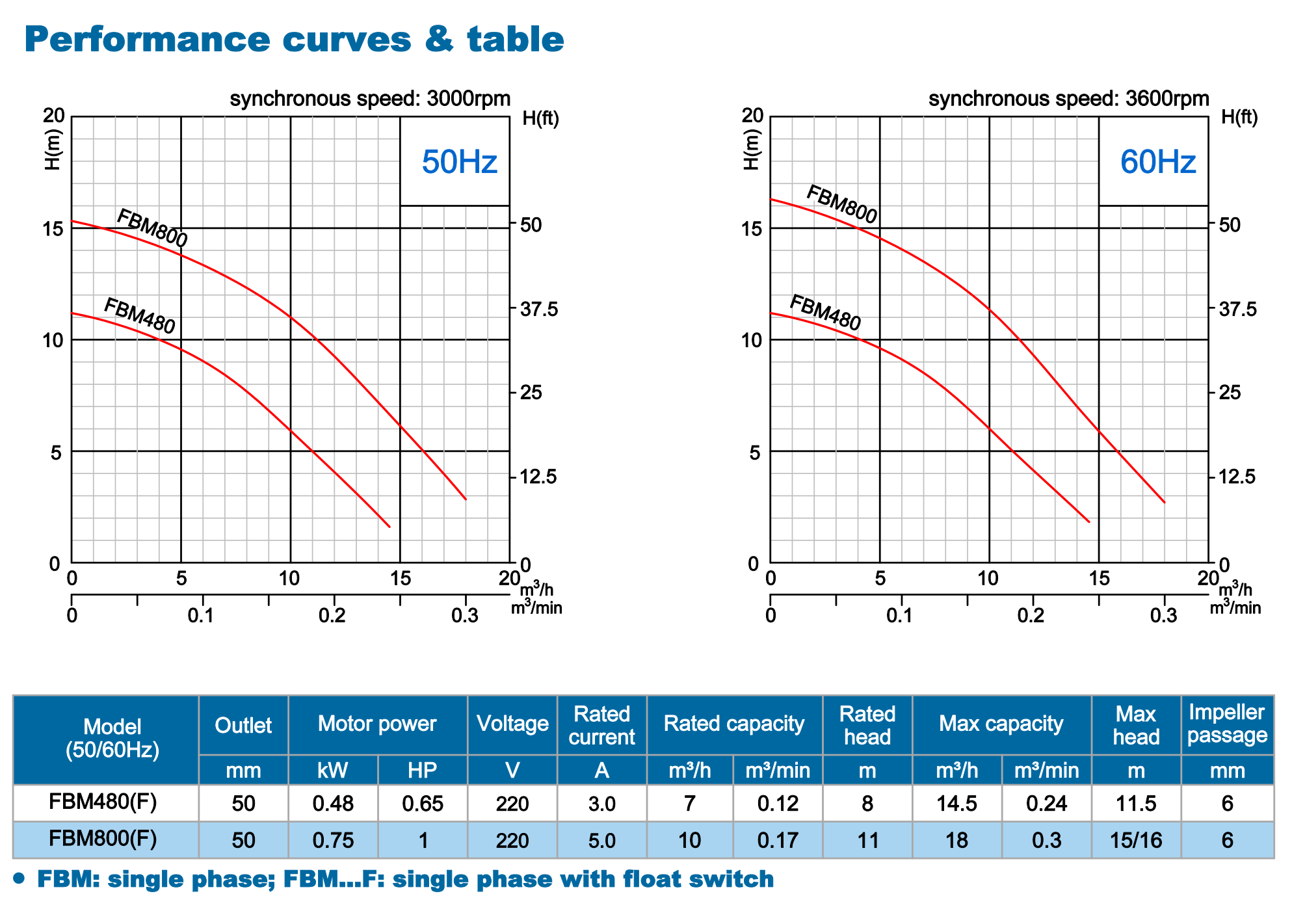

Series Product Specfications

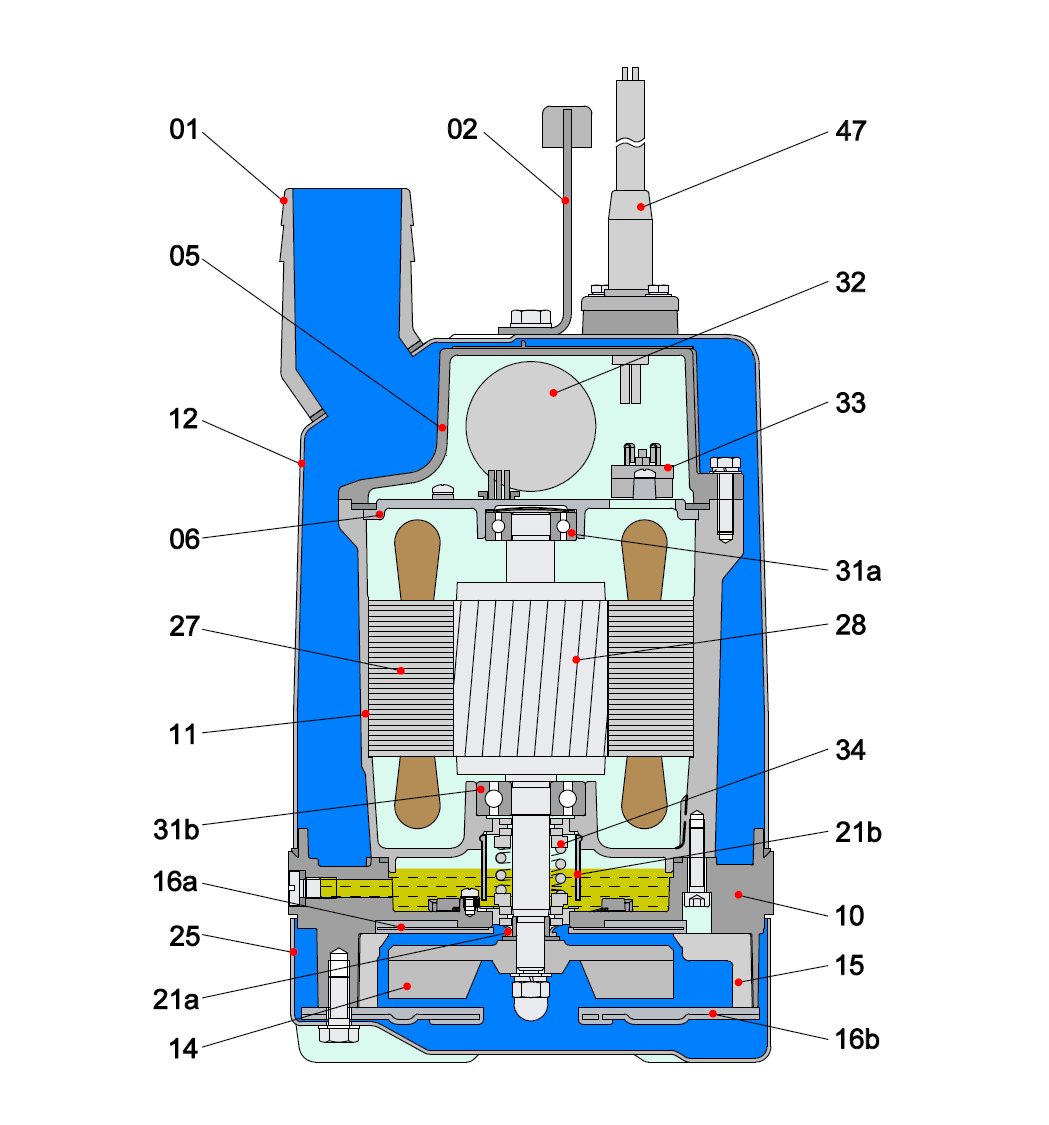

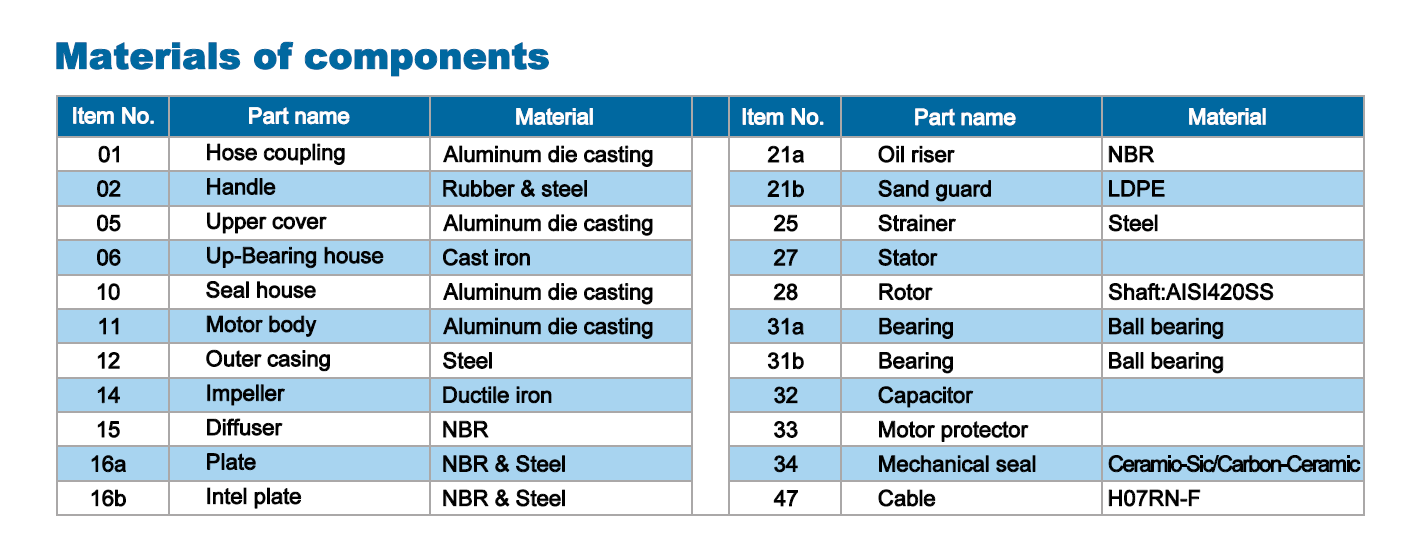

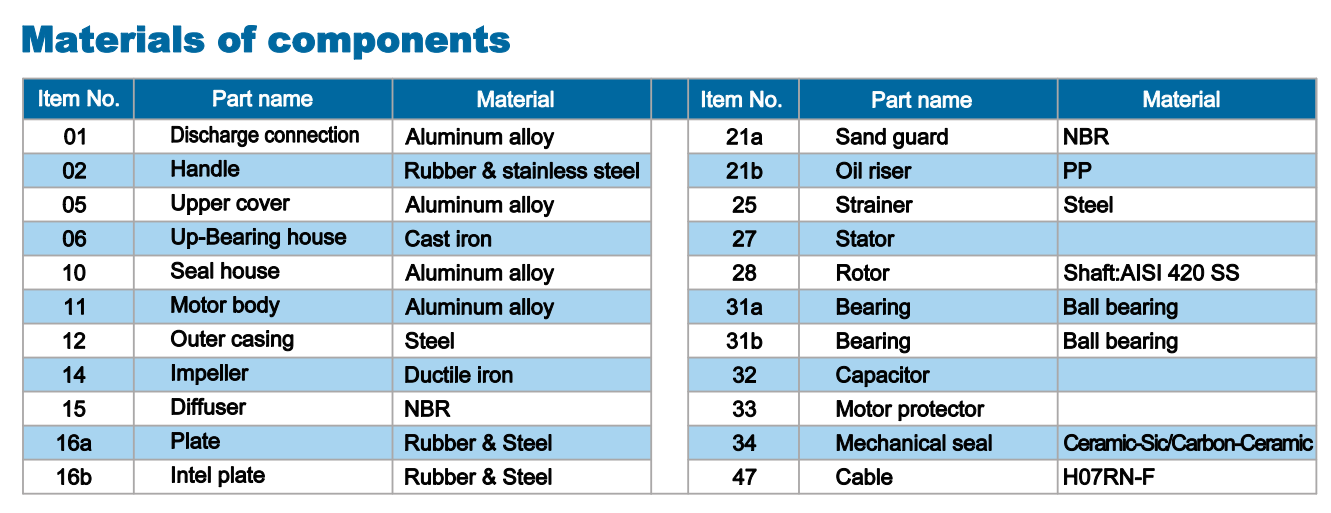

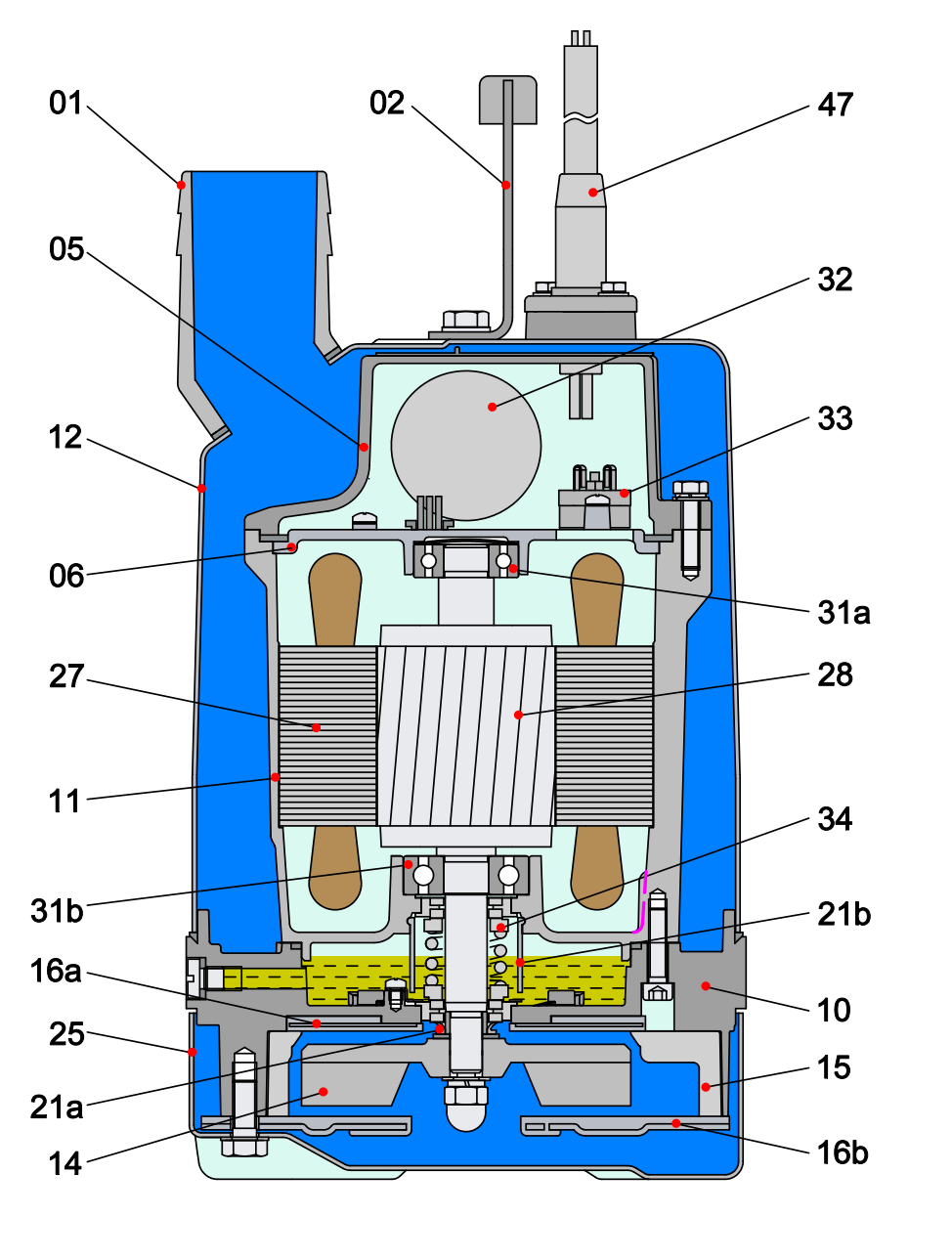

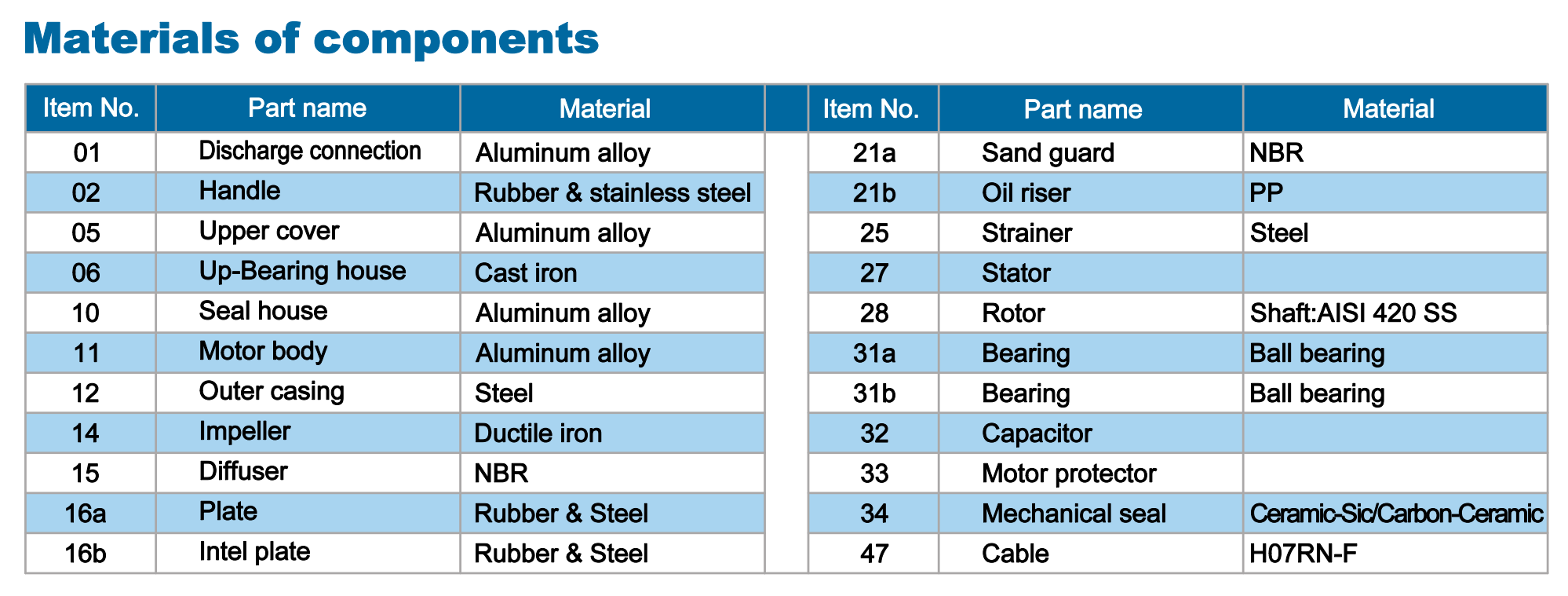

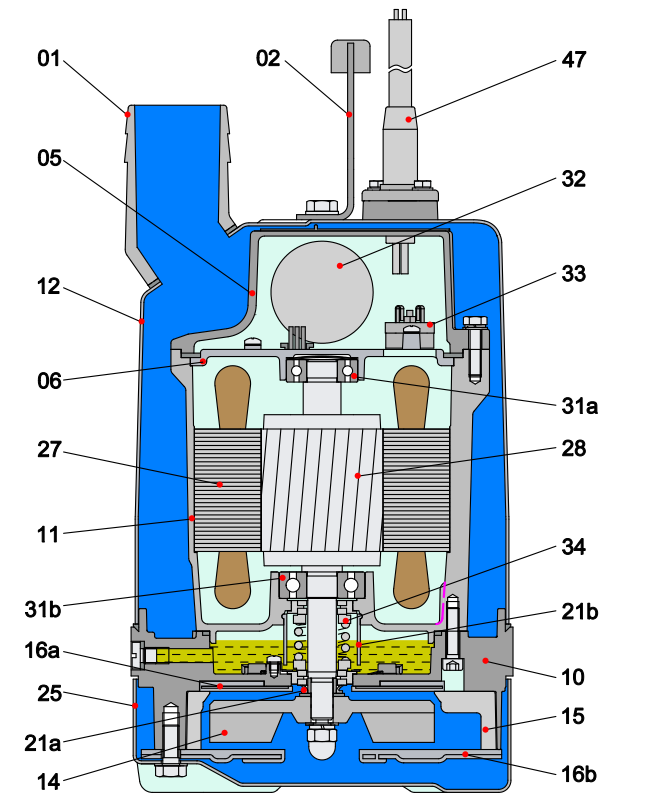

Material of Construction
Specification

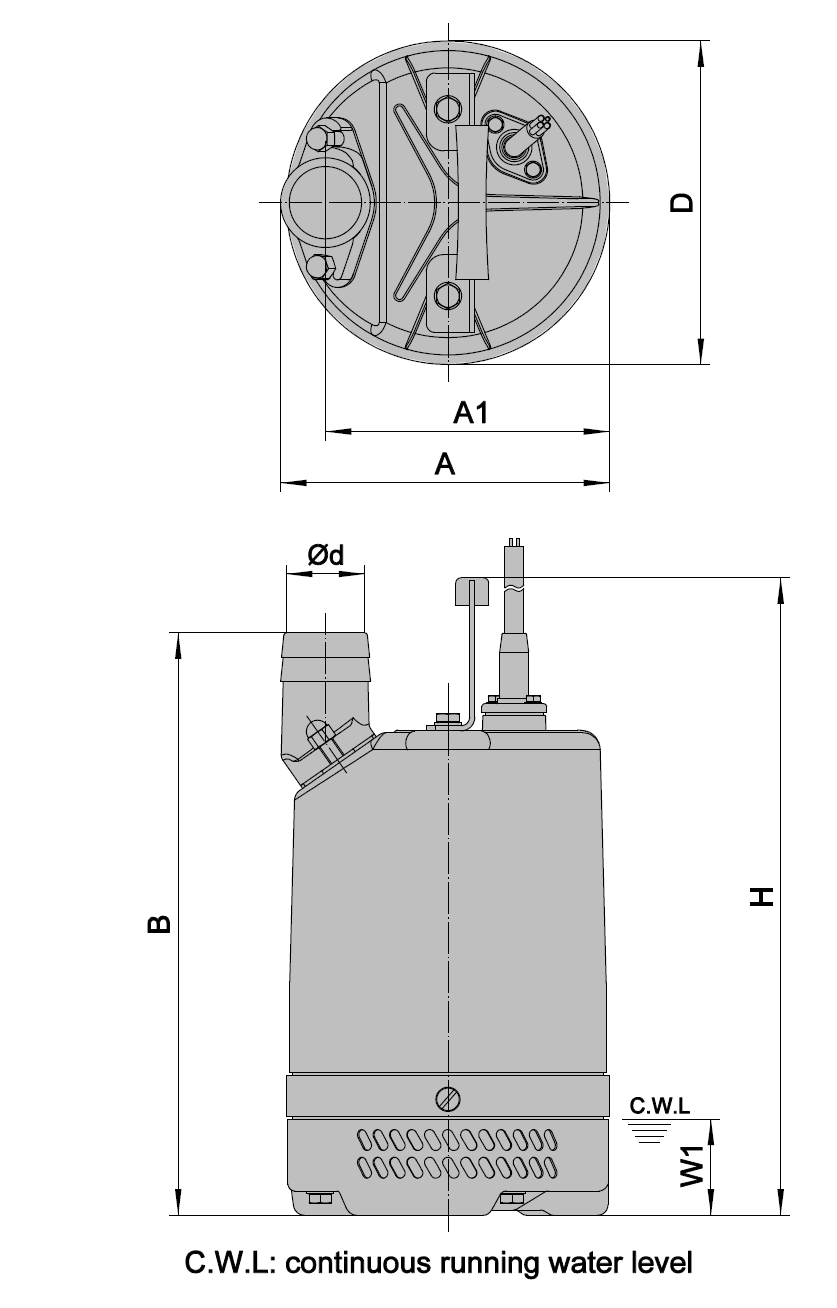

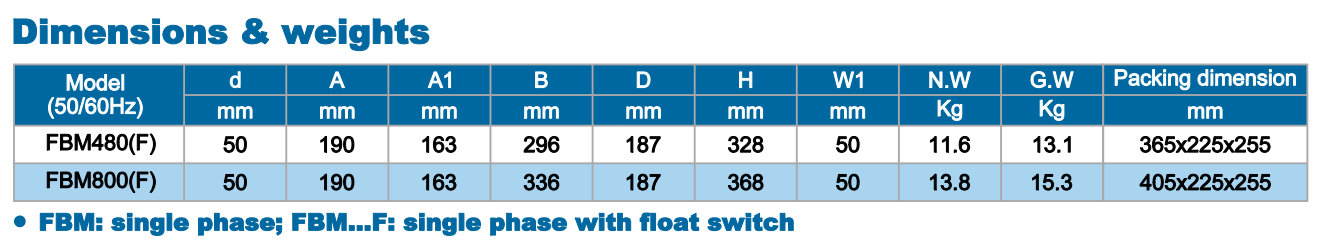

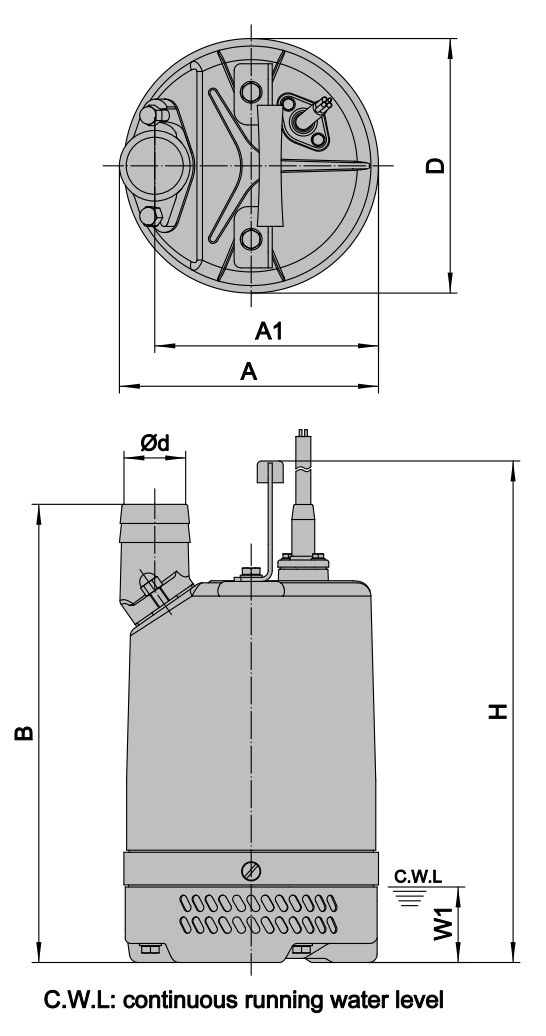

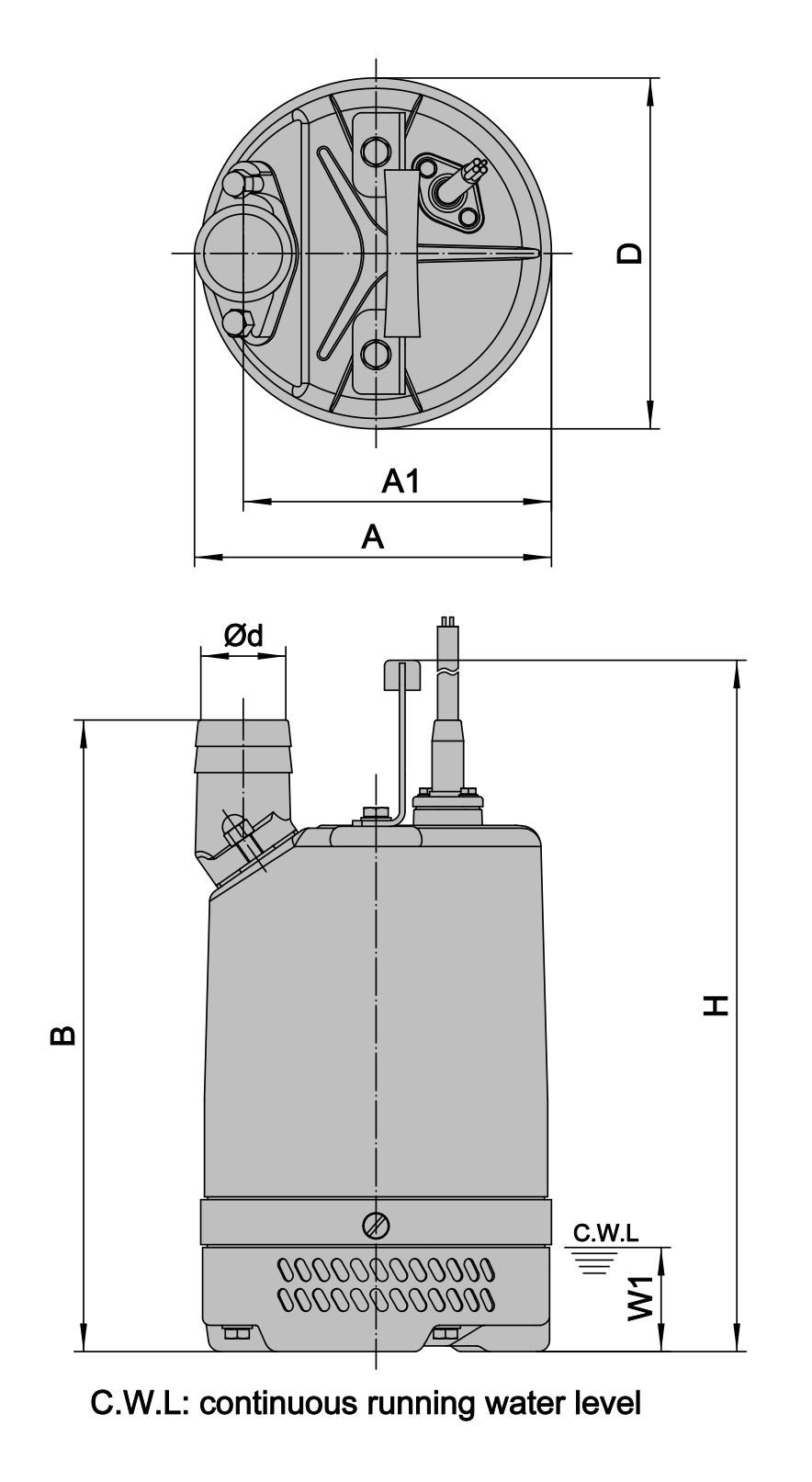

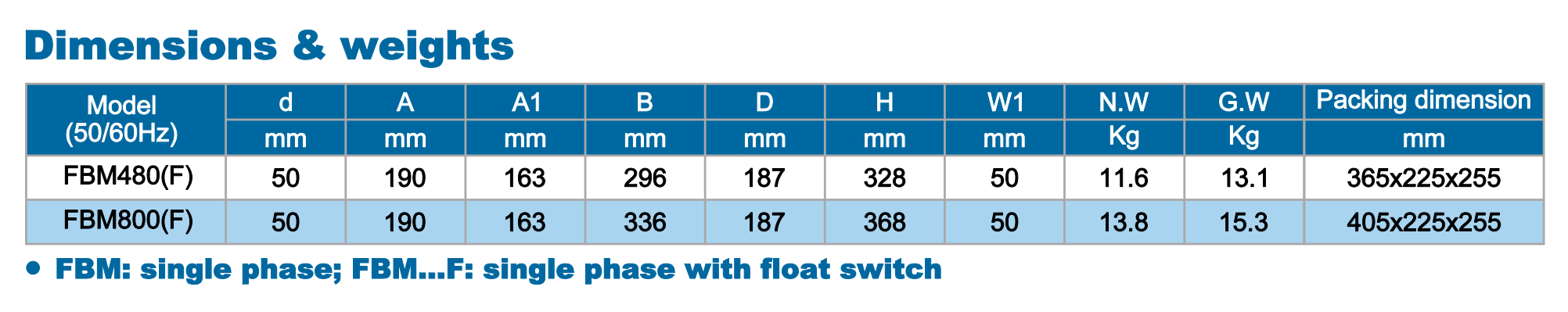

Packing Dimension








Consumable Parts

FBM SUBMERSIBLE DRAINAGE PUMP

impeller

FBM SUBMERSIBLE DRAINAGE PUMP

impeller

FBM SUBMERSIBLE DRAINAGE PUMP

under suction cover

FBM SUBMERSIBLE DRAINAGE PUMP

upper suction cover
