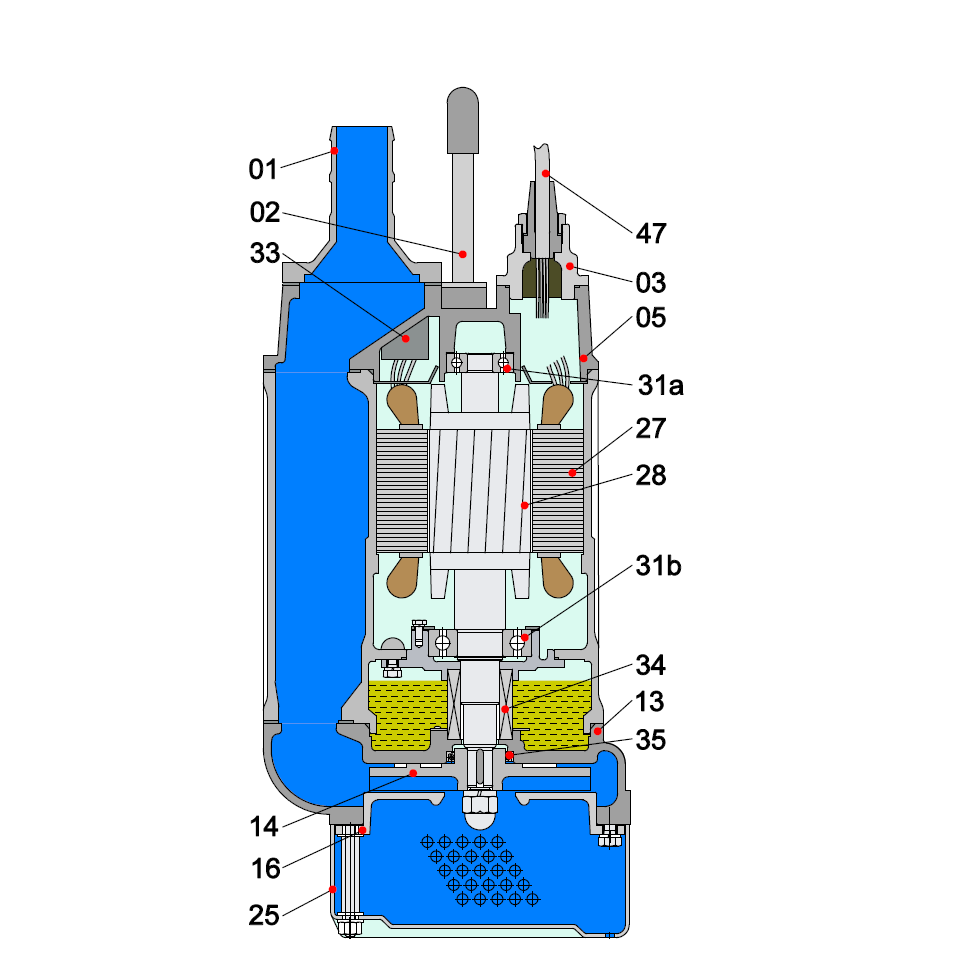

Structure and characteristics

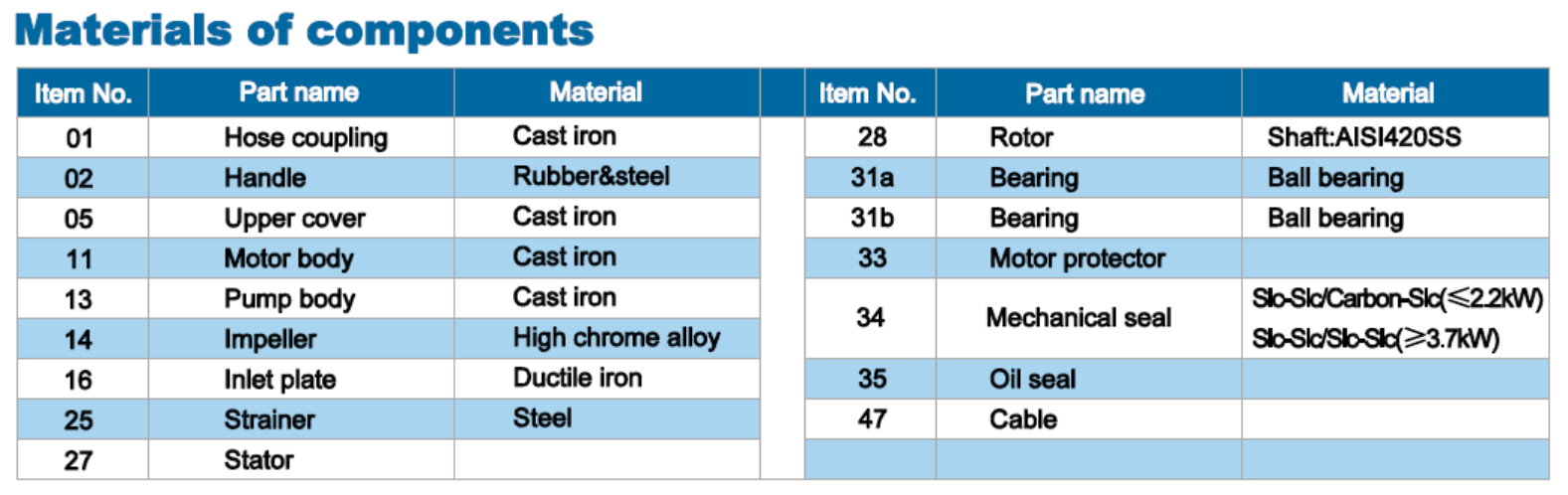

The body of motor and pump is made of rigid cast iron for long-lasting durability.

Greatly increased maximum submersion depth due to mechanical seal resistant to high pressure.

Semi-open impeller made of high chrome alloy matching with wear plate (ductile iron) achieves superior durability.

Effective motor cooling due to discharge channel cast as part of the motor housing. Top outlet design saves space required for installation.

Discharge 50mm(2'') to 150mm(6''), motor 1.5kW (2HP) to 15 kW (20HP).

Application

Civil engineering

Mines, quarries, coal ore & slurries

Sewage treatment plants

General pumping purposes

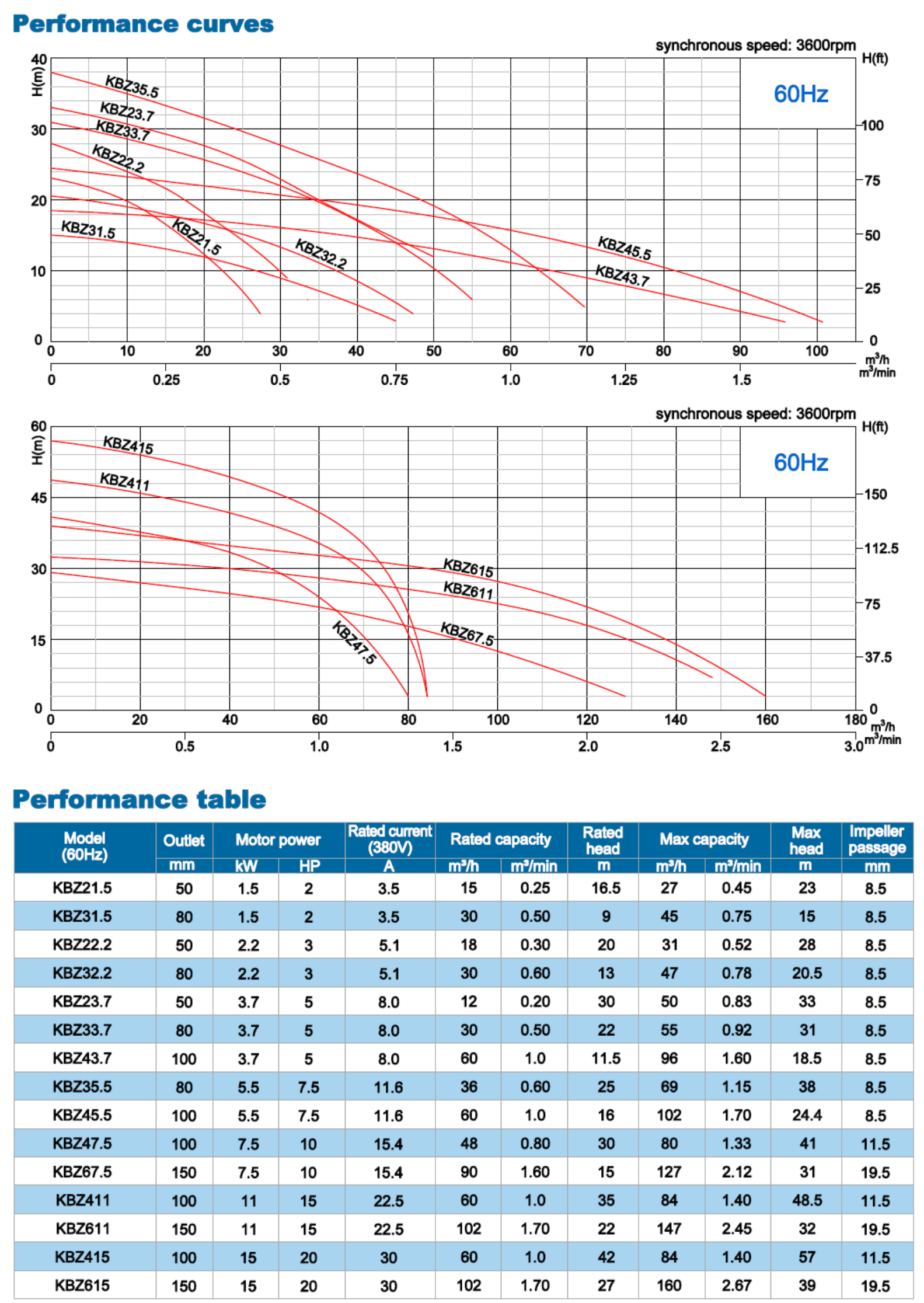

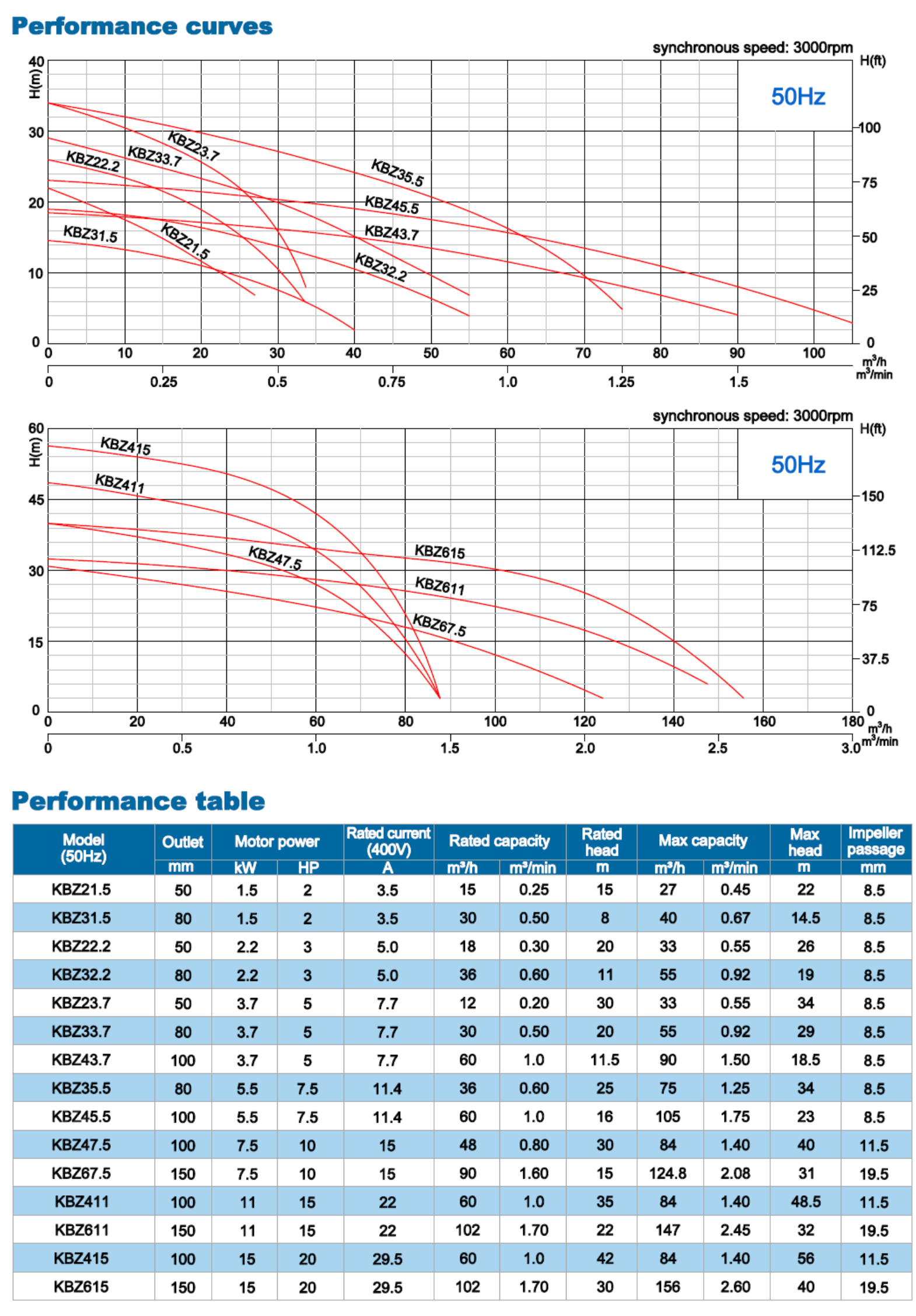

Specification

Capacity: up to 160m³/h

Head: up to 57 meters

Power: 1.5kW (2HP) to 15 kW (20HP)

Power supply: three phase 400V ±10%, 50Hz

                                           380V ± 10%, 60Hz

Insulation class: F

Protection class: IP68

Cable length: 8m

Water temperature: up to 40℃

Max. water depth: 25m
