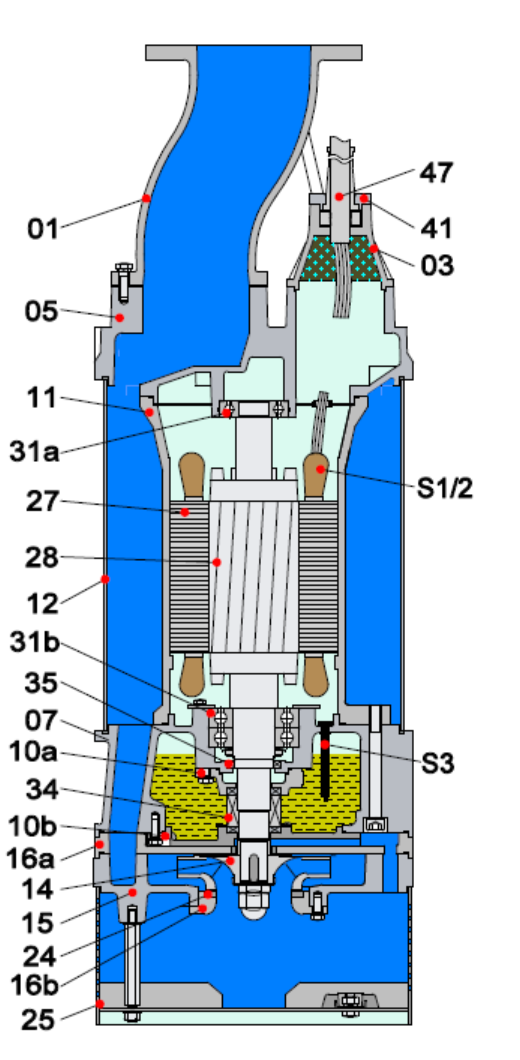

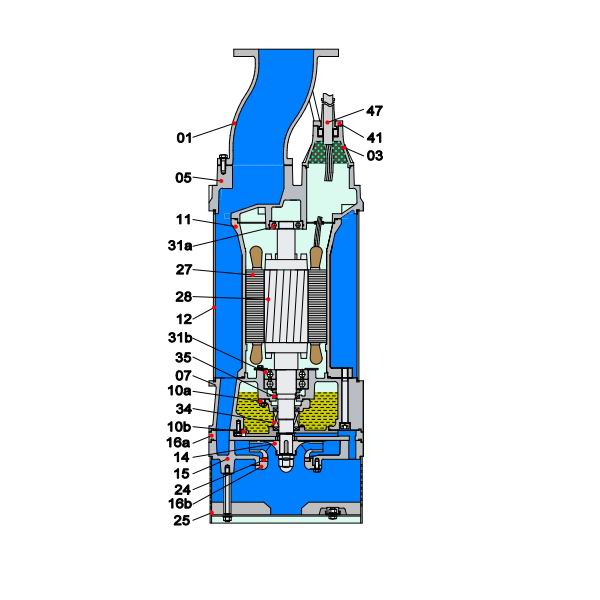

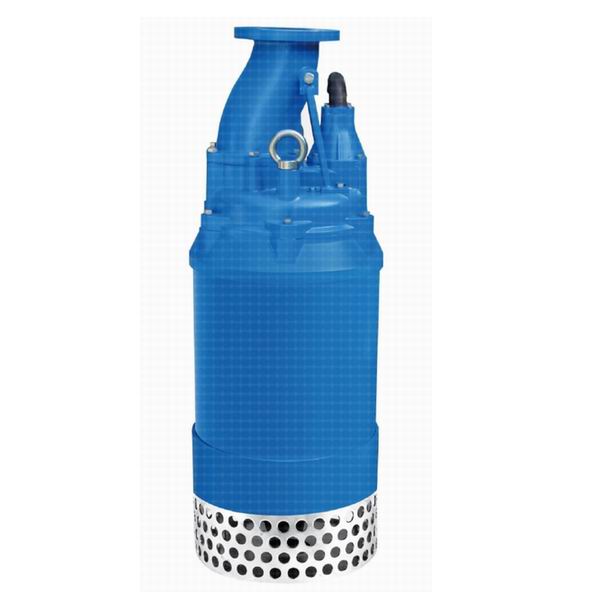

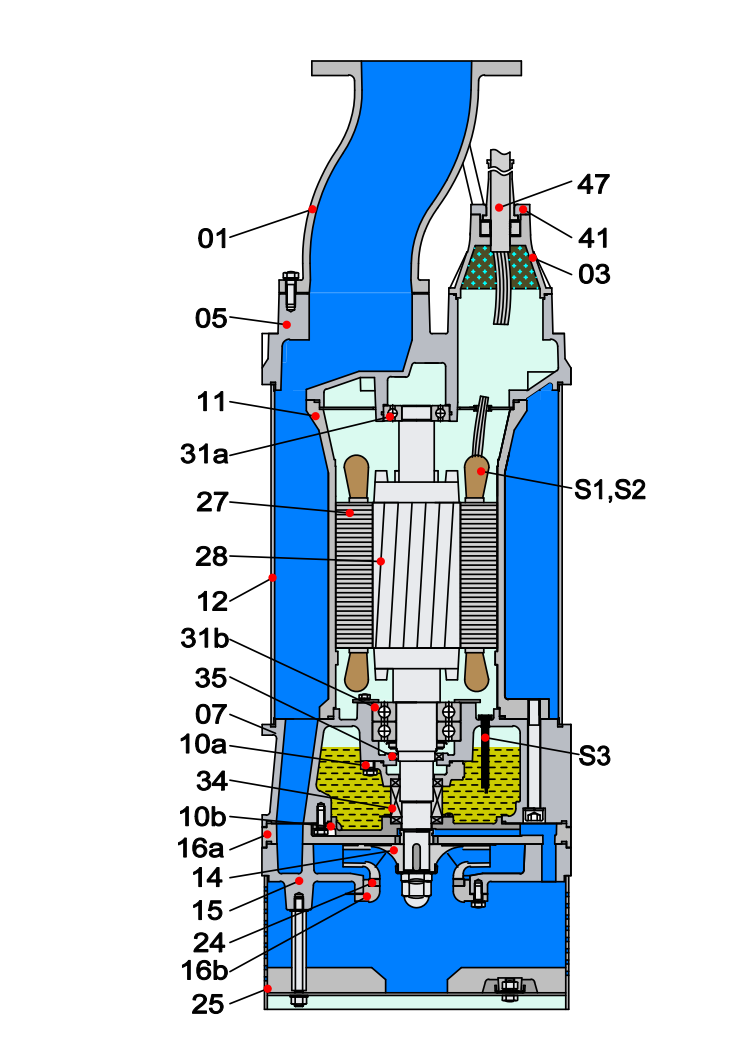

Structure and characteristics

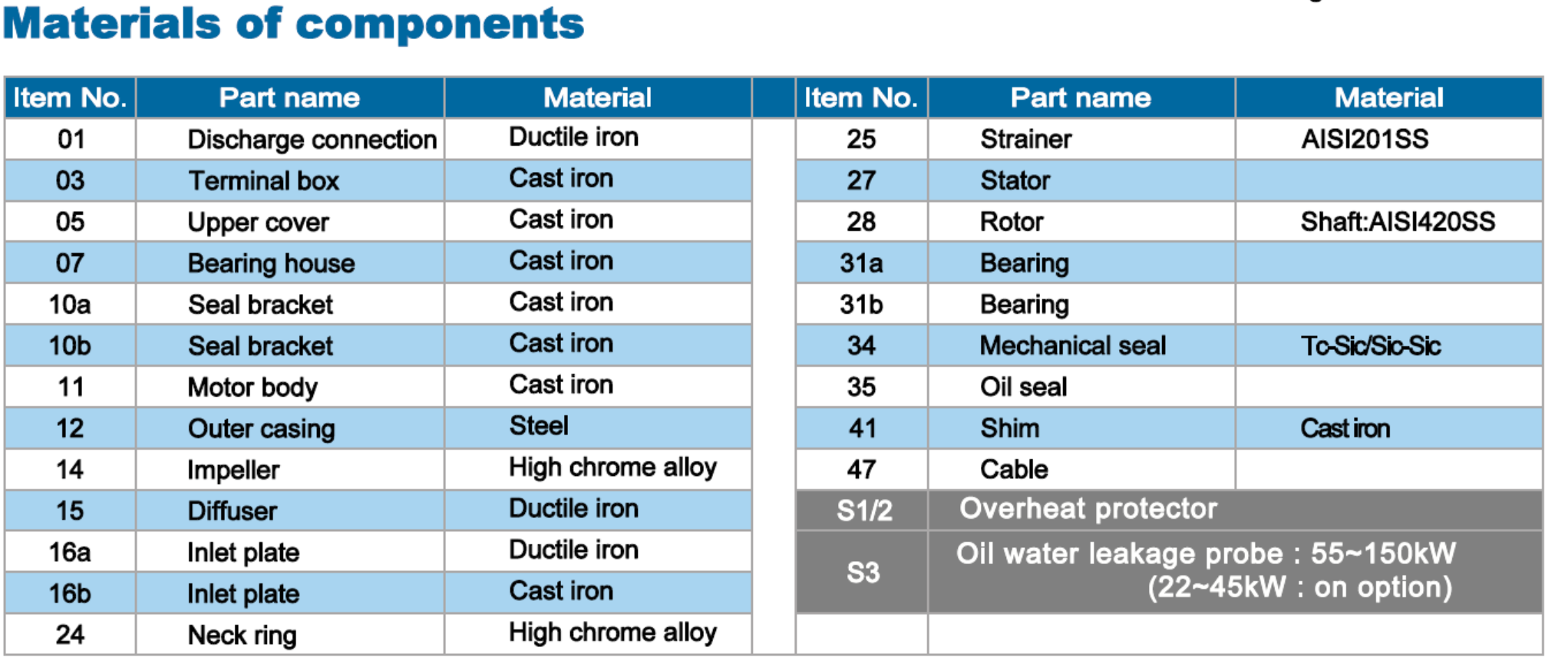

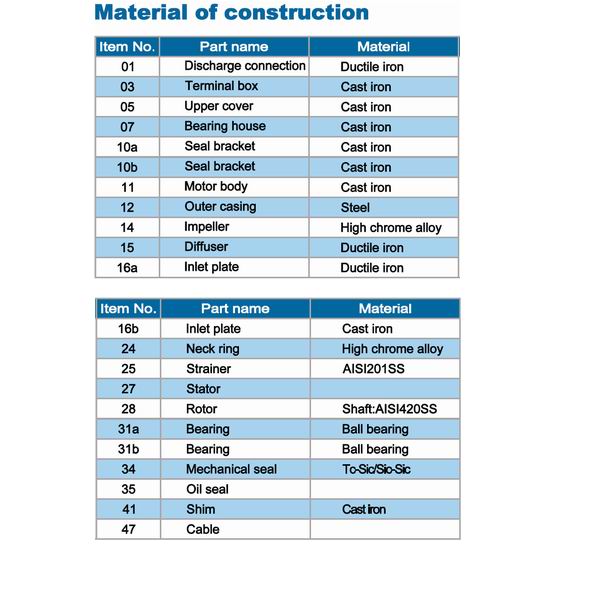

The body of motor and pump is made of hard cast iron for long-lasting durability.

Greatly increased maximum submersion depth due to mechanical seal resistant to high pressure.

The pump can be only partially immersed, with hydraulic part under motor and motor cooled by pumped water for safe operation. The top discharge design maximize the utilization of space. Hermetically sealed motor equipped with built-in thermal protection. Seal pressure relief ports is incorporated to prevent the pumping pressure from applying to the shaft seal.

Discharge 100mm(4'') to 200mm(8''), motor 22kW (30HP) to 110 kW (150HP).

Motor is dry type submersible induction motor (2 poles).

Application

Deep-well pre-dewatering or high-head dewatering

Civil engineering and construction works

Mines, quarries, coal ore &slurries

Sewage treatment plants

General pumping purposes

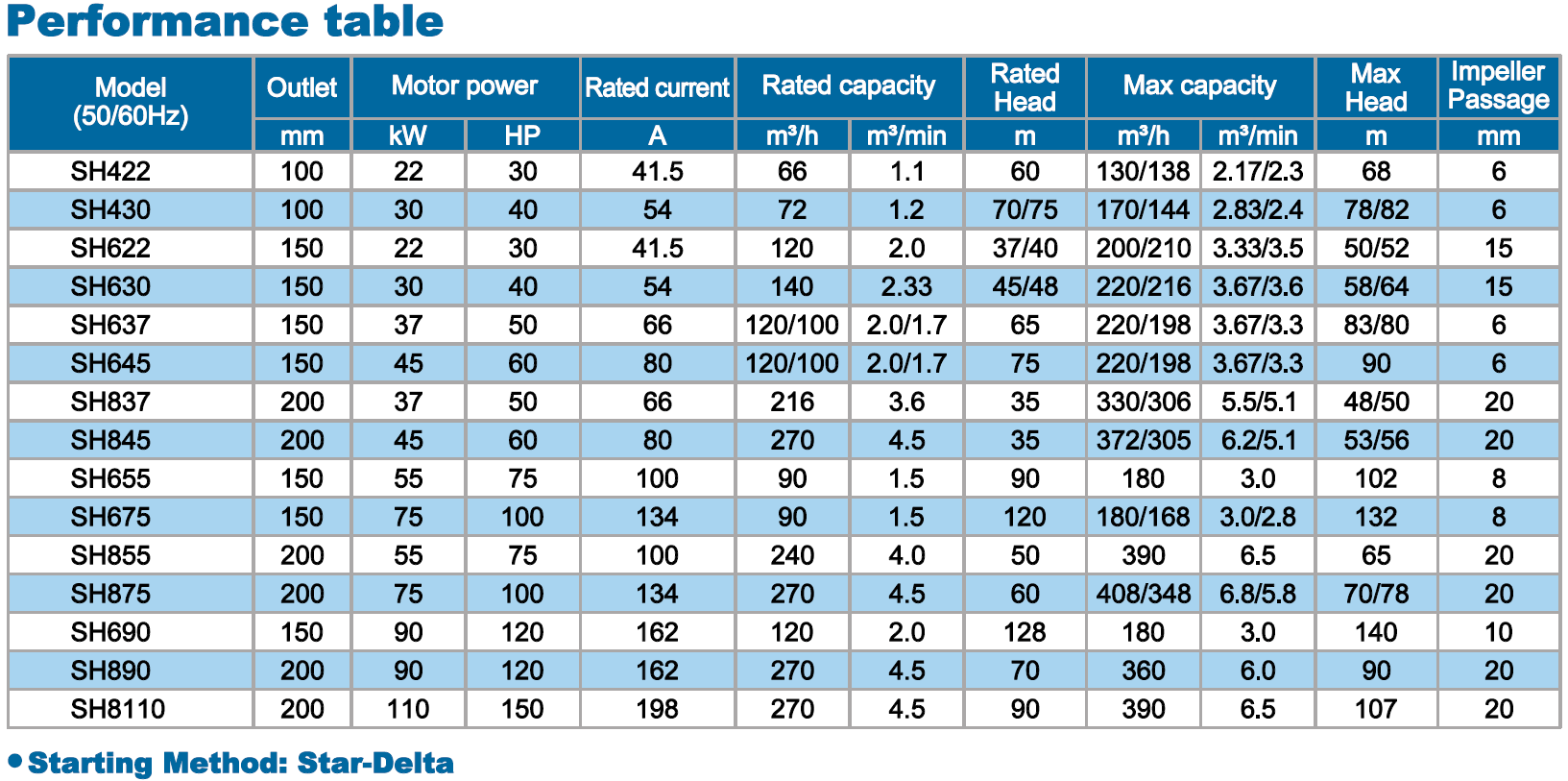

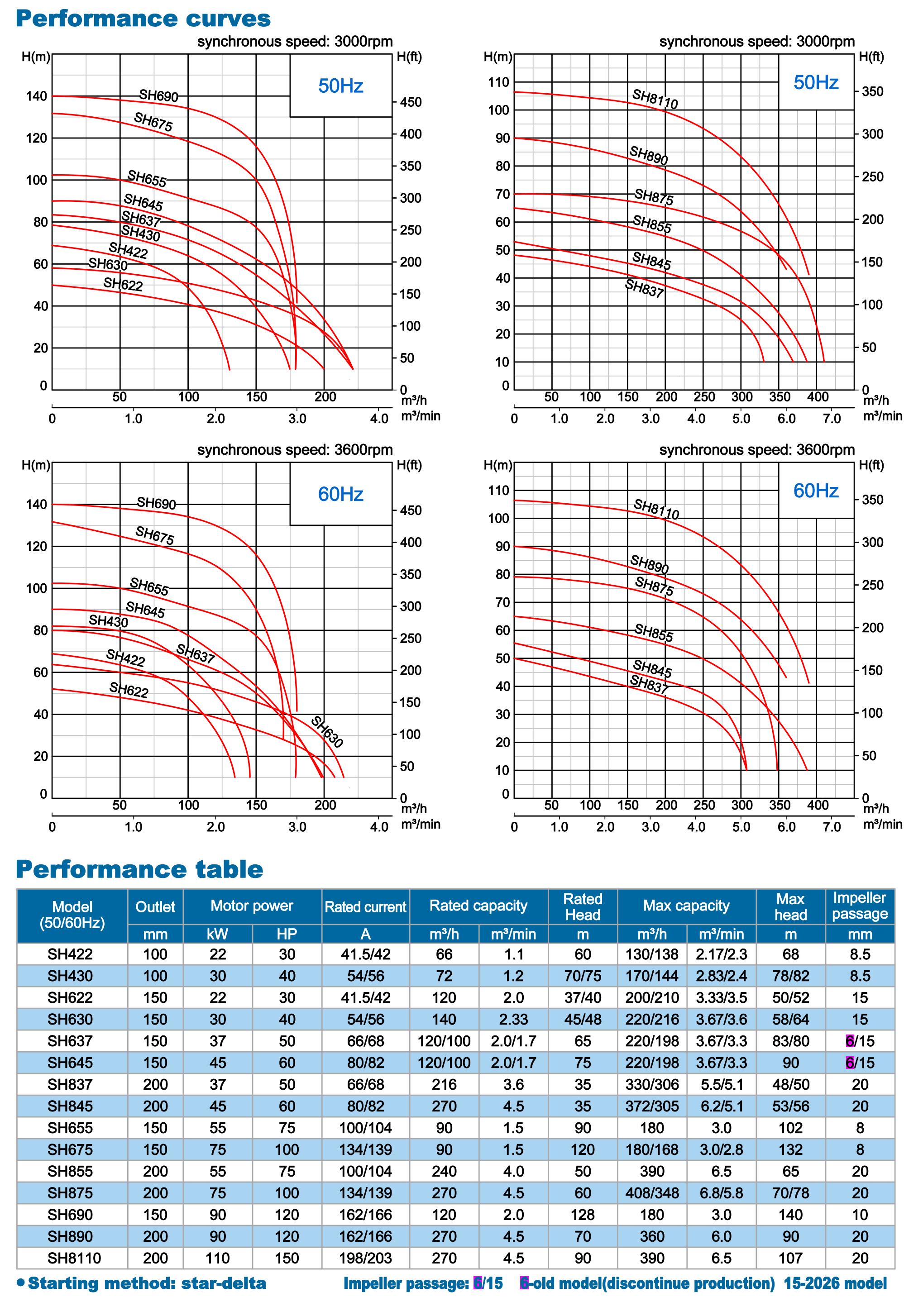

Specification

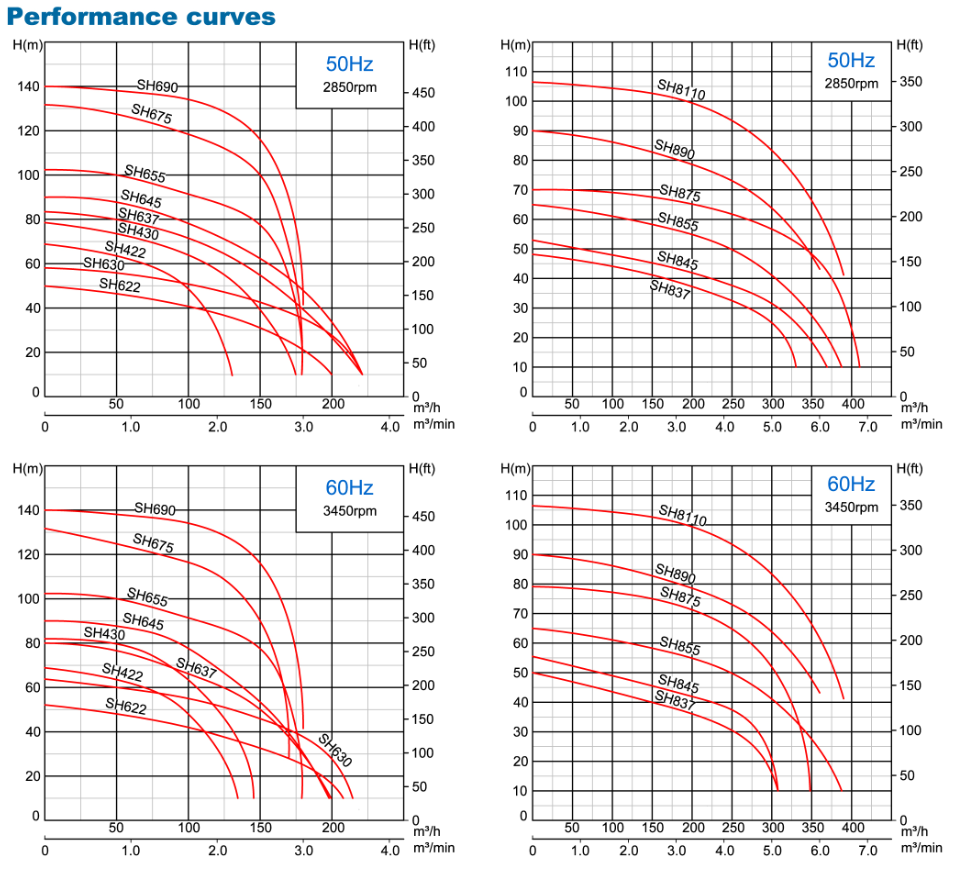

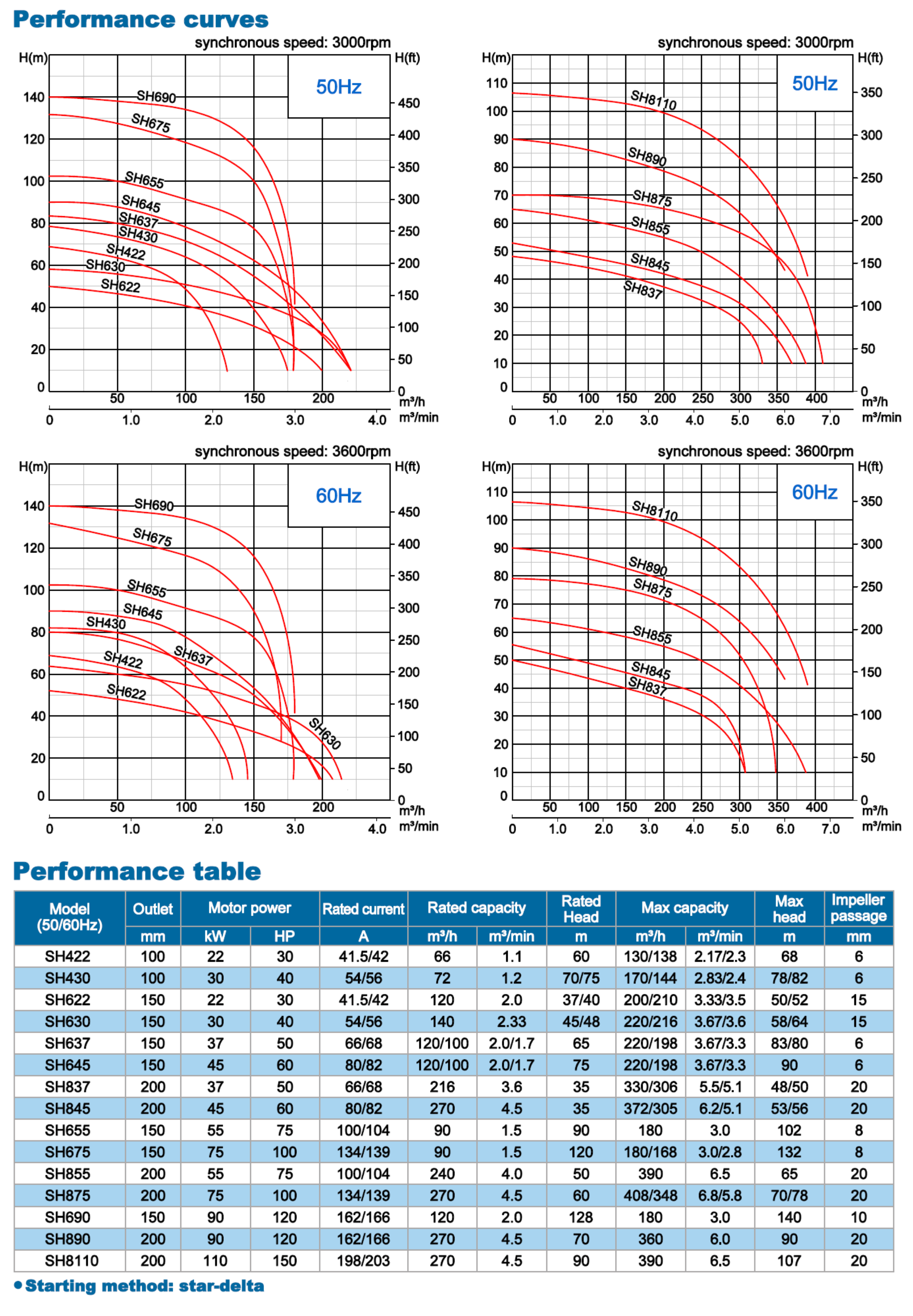

Capacity: up to 408m³/h

Head: up to 140 meters

Power: 22kW (30HP) to 110 kW (150HP)

Power supply: three phase 400V ± 10%, 50Hz

                                            380V ± 10%, 60Hz

Insulation class: F

Protection class: IP68

Cable length: 20m

Water temperature: up to 40℃

Max. water depth: 30m
