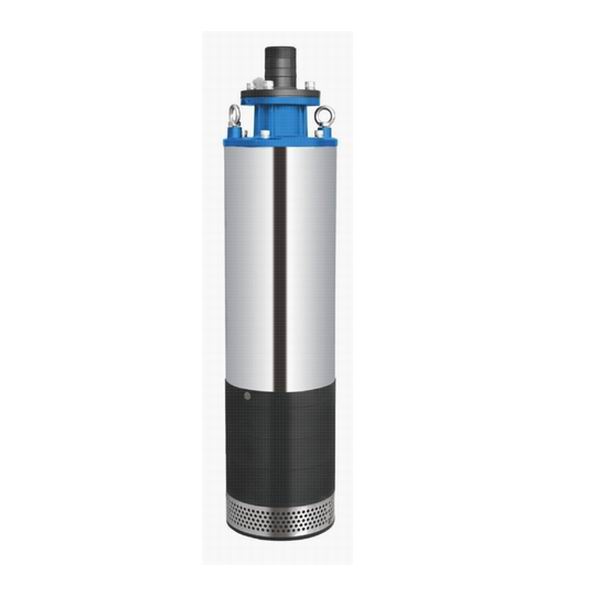

Structure and characteristics

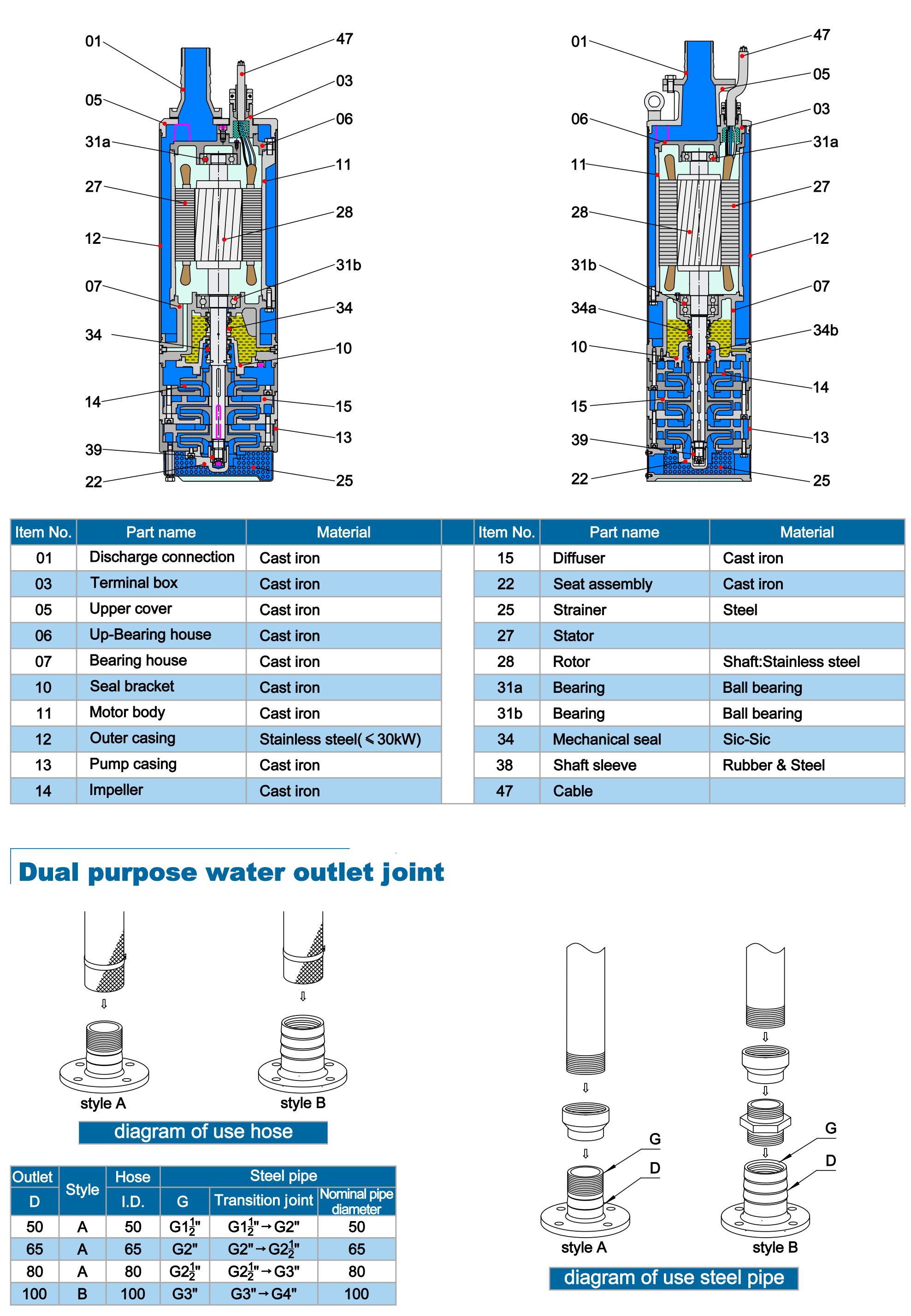

Hydraulic part is under the motor and motor is cooled by the pumped water for safe operation even with the pump only partially immersed.

Double shaft seals are utilized with interposed oil chamber.

Application

For mining, building, factory and industrial applications

For water supply from wells, tanks or reservoirs

For garden use and agricultural irrigation

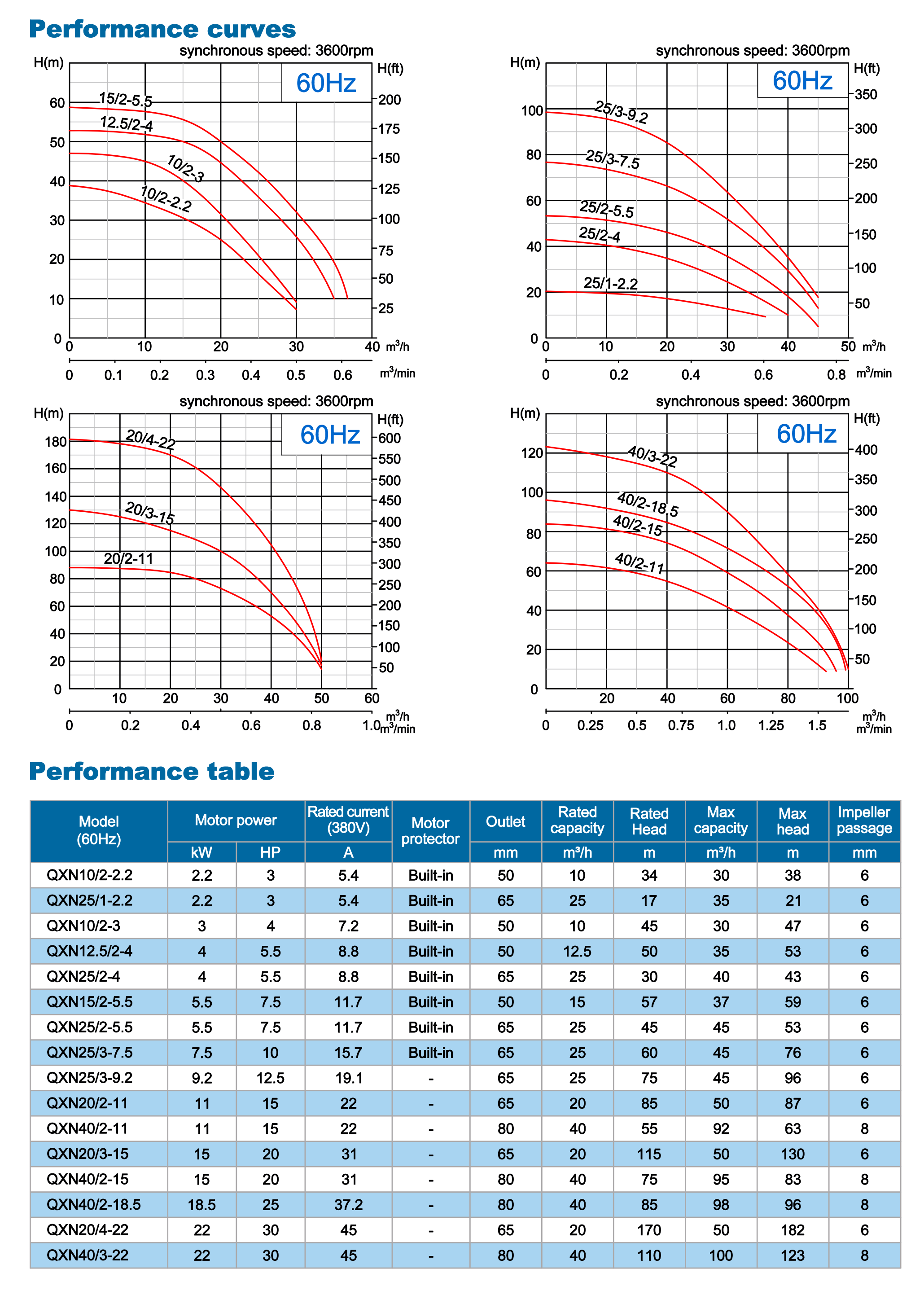

Specification

Water temperature: up to 40℃

PH: 6.5-8.5

Power supply:  three  phase, 380V ± 10%, 50Hz

                                              380V ± 10%, 60Hz

Power: 2.2 kW ~ 75kW

Insulation class: ≤30kW   B

                           ≥37kW   F

Protection class: IP68

Capacity: up to 190m³/h

Head: up to 204 m

Maximum immersion depth:20 m

Cable length: 15m
