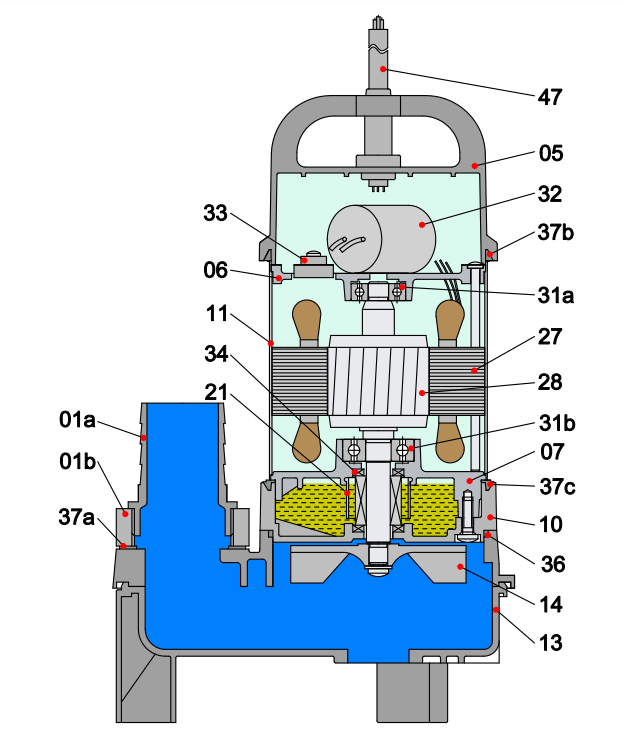

Structure and characteristics

The PV(M) pump is made of stainless steel and special resin.

The pump is not only light weight but also corrosion-resistant as well.

Built-in vortex impeller and large passage facilitate pump operation to readily dispose of liquid containing various kinds of foreign matters

Application

Transferring wastewater between the tanks at small-scale treatment facility

Draining sewage from factory, residence, hotel, restaurant, etc Pumping rainwater and springwater at a place where foreign objects are likely to run into the water

Specification

Water temperature: up to 40°C

PH: 4 to 10

Power supply: single phase 220V ± 10%, 50Hz, 60Hz

                        three phase 380V ± 10%, 50Hz, 60Hz

Insulation class: F

Protection class: IP68

Cable length: 8m

Max water depth: 10m
