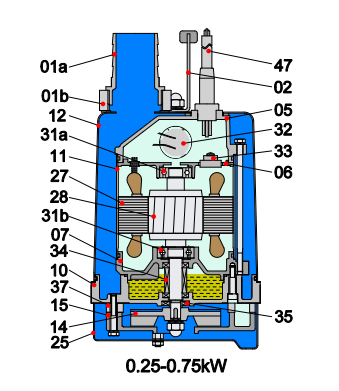

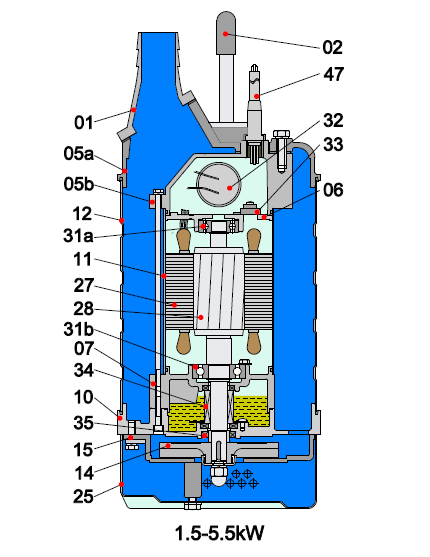

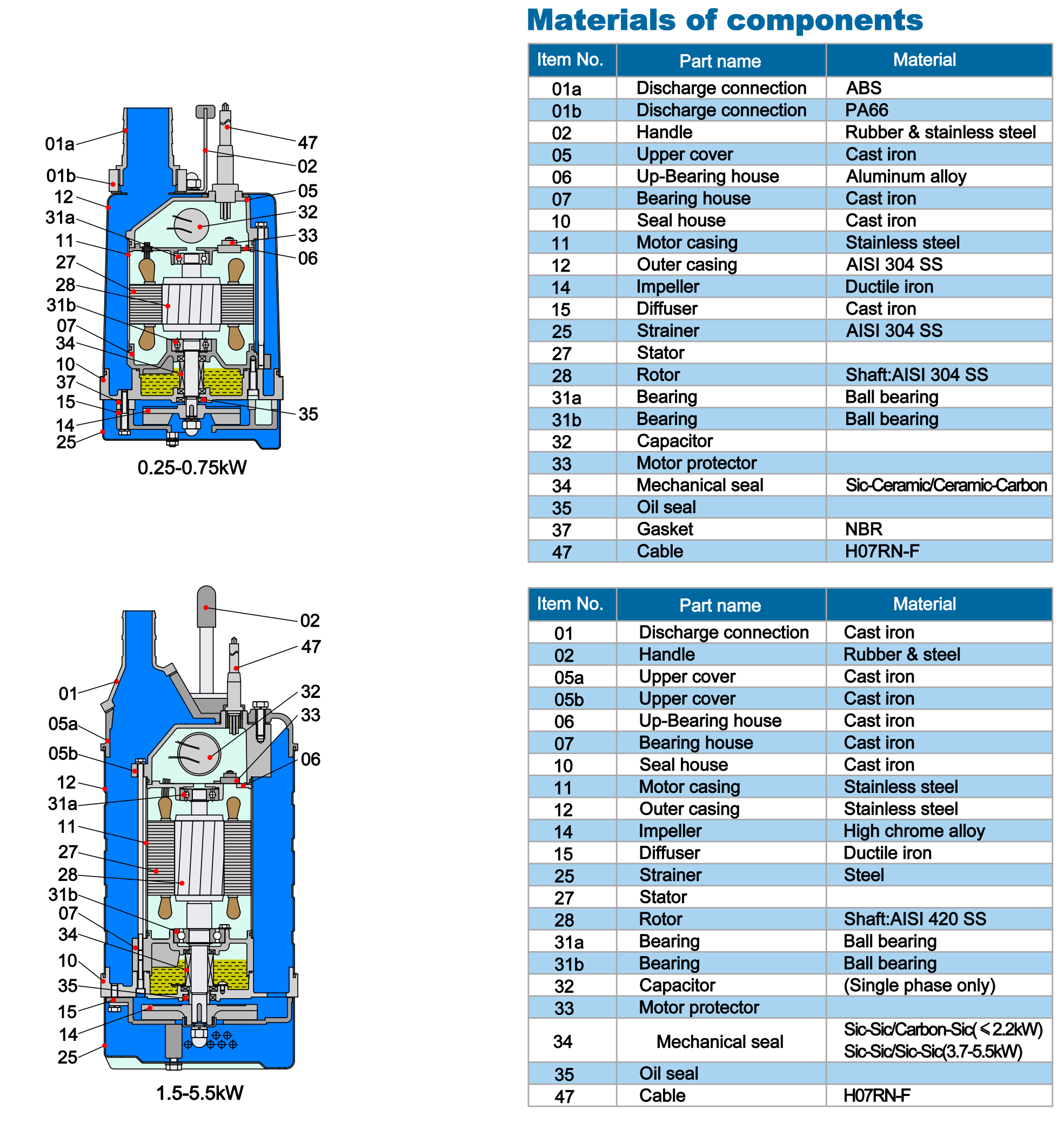

Structure and characteristics

Compact design, high performance and exceptional durability for handling abrasive liquid, widely used in general construction and civil engineering.

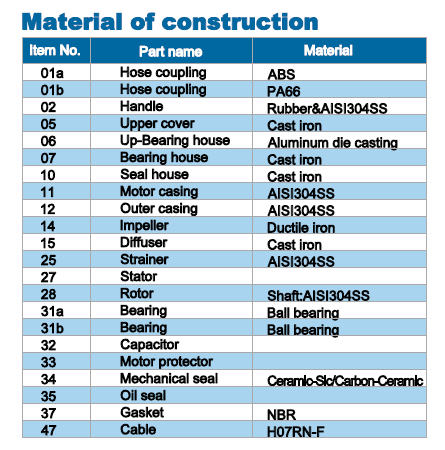

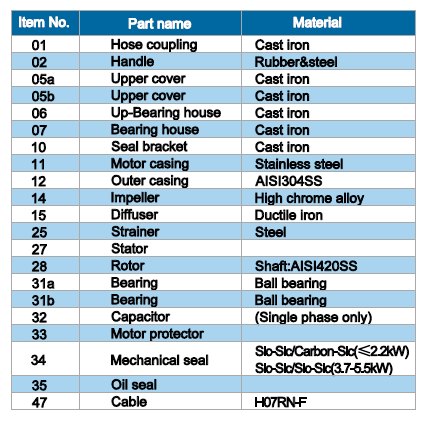

The motor body and pump body are made of rigid cast iron or stainless steel for long-lasting durability.

Greatly increased maximum submersion depth due to mechanical seal resistant to high pressure.

Semi-open impeller made of high chrome alloy matching with wear plate (ductile iron) achieves superior durability.

Effective motor cooling due to discharge channel cast as part of the motor housing.

Discharge 50mm(2'') to 150mm(6''), motor 0.25kW (0.35HP) to 15 kW (20HP).

Hermetically sealed motor equipped with built-in thermal protection.

Application

Civil engineering

Mines, quarries, coal ore & slurries

Sewage treatment plants

General pumping purposes

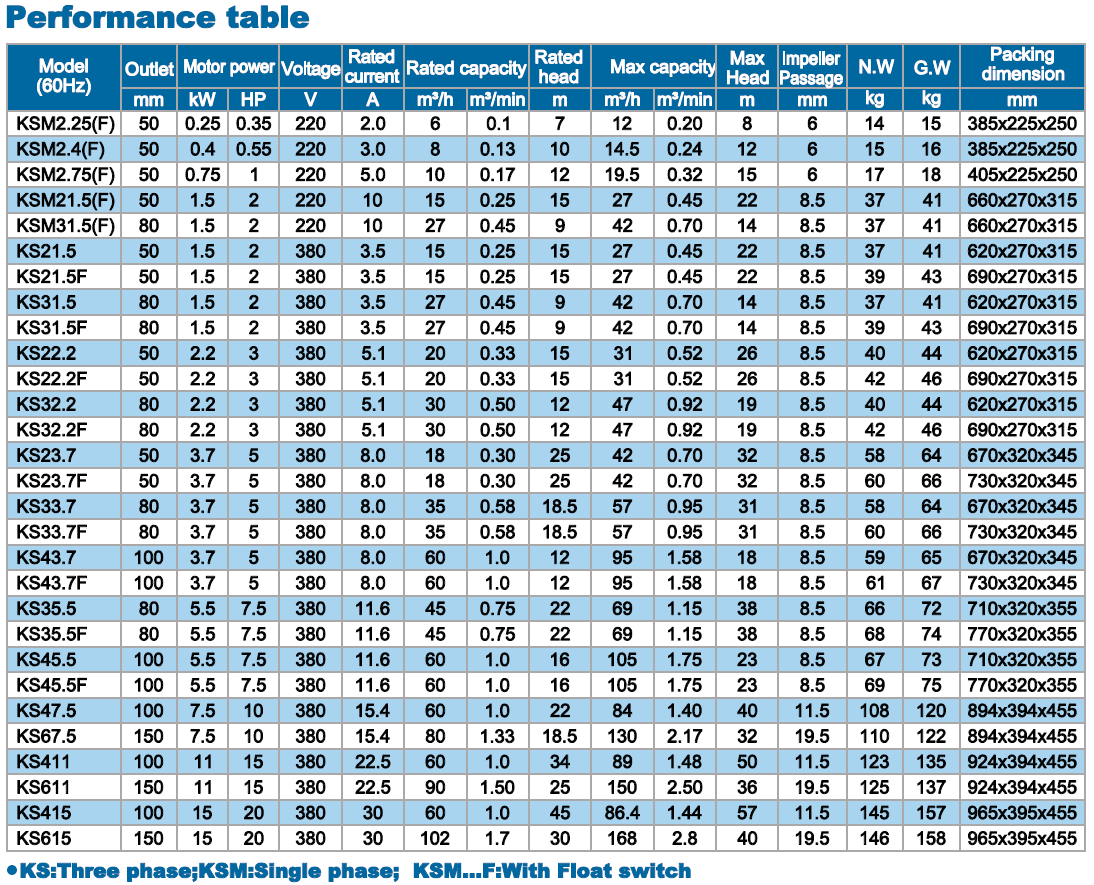

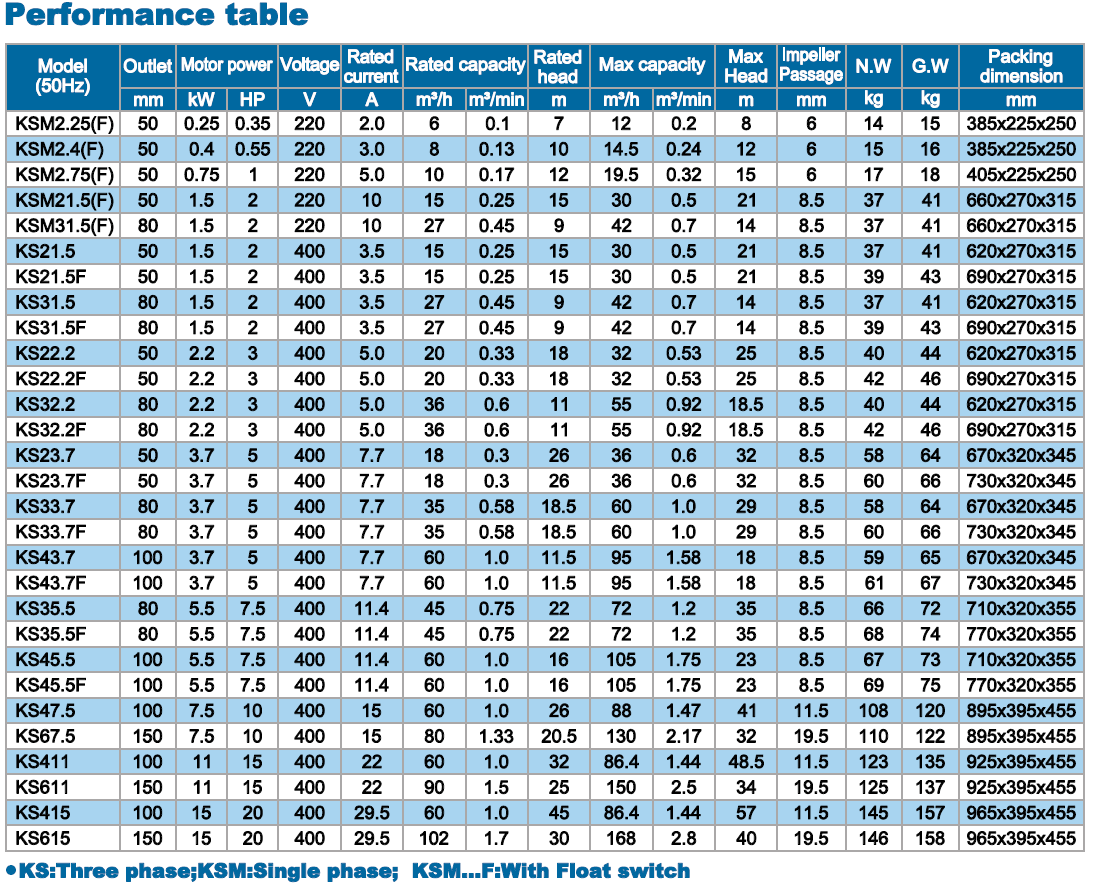

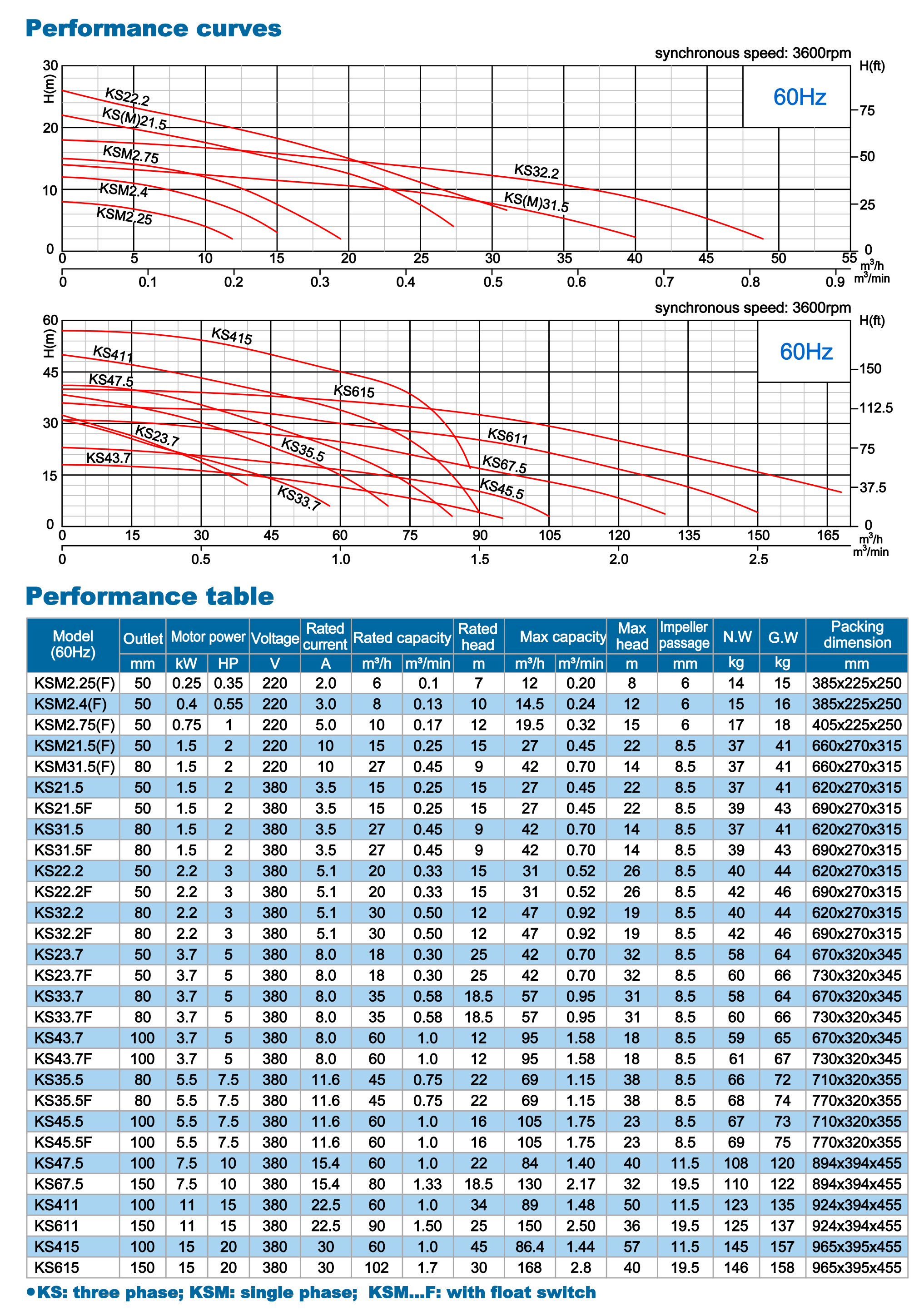

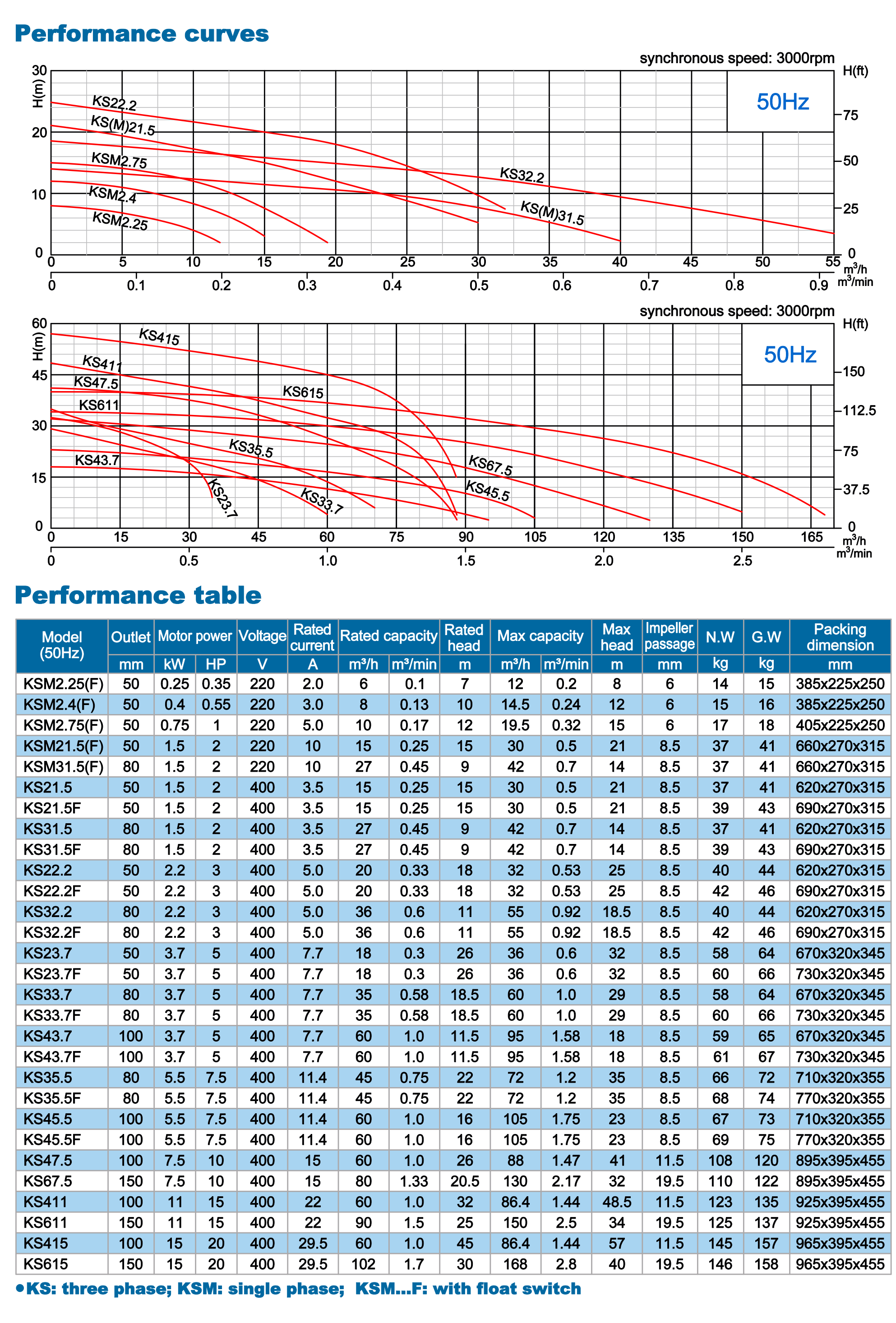

Specification

Capacity: up to 168m³/h

Head: up to 57 meters

Power: 0.25kW (0.35HP) to 15 kW (20HP)

KSM0.25~1.5: single phase 220V ± 10%, 50Hz

                                             220V ± 10%, 60Hz

KS1.5~15: three phase 400V ± 10%, 50Hz

                                      380V ± 10%, 60Hz

Insulation class: F

Protection class: IP68

Cable length: 8m(0.25～0.75kW)

                      15m(1.5～5.5kW)

                      8m(7.5～15kW)

Water temperature: up to 40℃

Max. water depth: KSM0.25~0.75kW: 10m

                             KS(M)1.1~15kW: 25m
