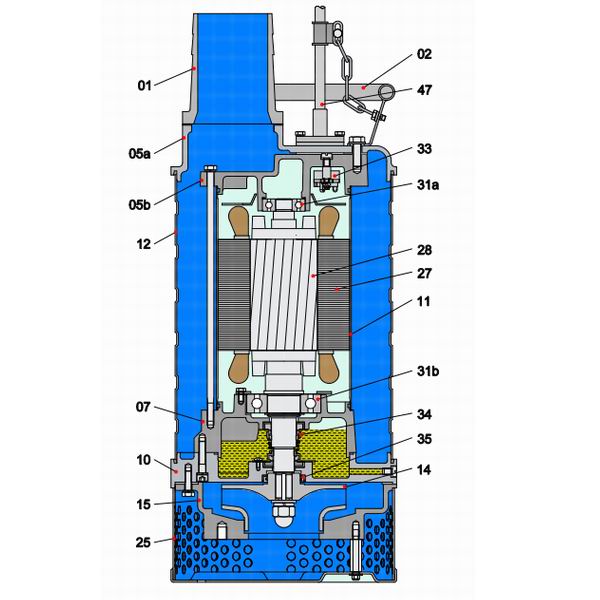

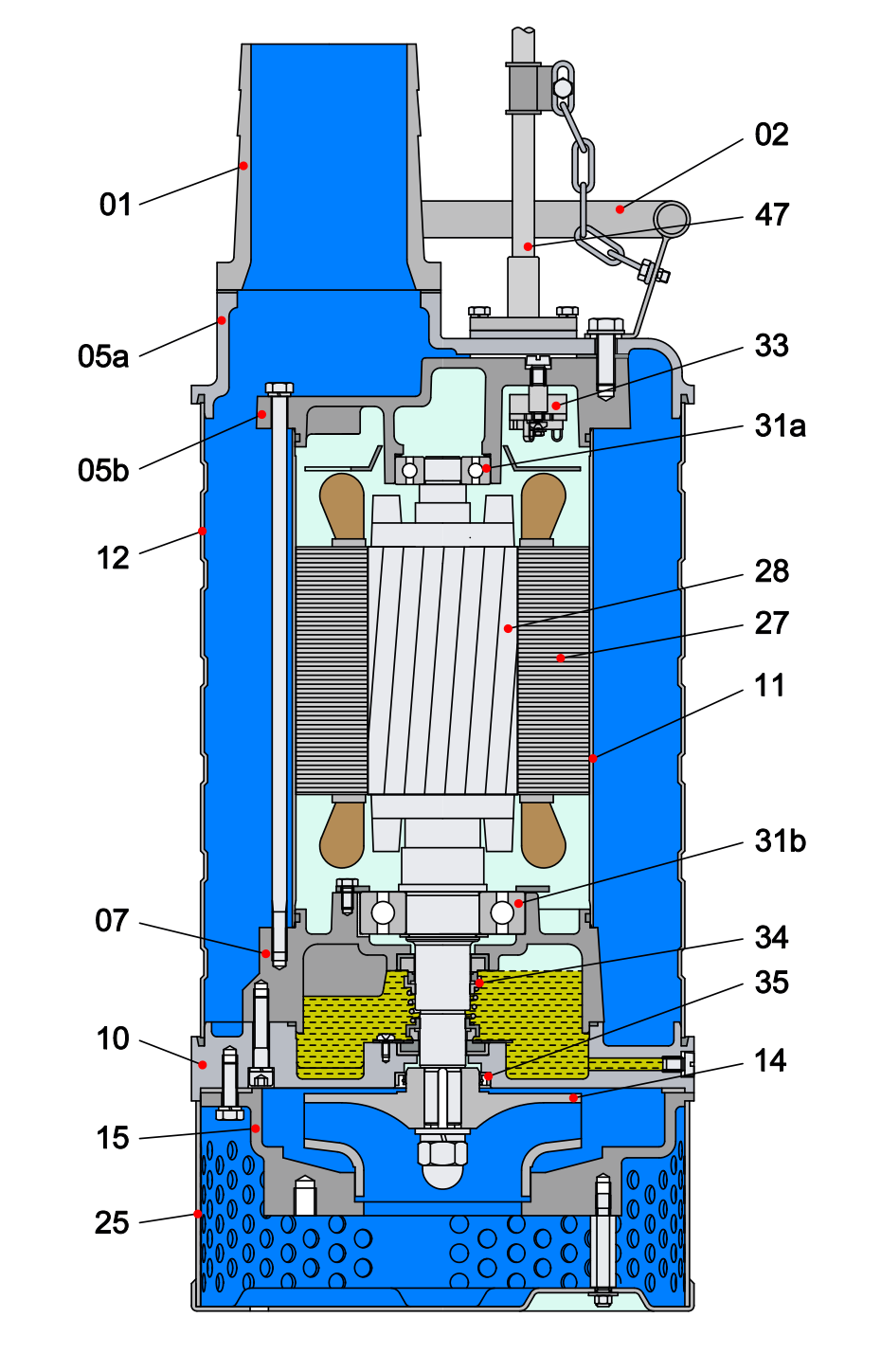

Structure and characteristics

The water-cooled motor ensures a long service life during continuous or intermittent operation, which is highly efficient and energy-saving.

The dry motor with thermal auto-cut can prevent the motor from overheating.

Greatly increased maximum submersion depth due to mechanical seal resistant to high pressure.

The cast iron upper cover and strengthened AISI304SS pumps casing can provide better anti-hitting performance.

The impeller is designed by 3D technology and made of chrome steel, which can improve the efficiency and extend the product lifetime.

The KC pump strainer can be easily removed for maintenance.

Application

Aquiculture water supply and drainage

Water supply for agriculture irrigation systems and underground water pumping

Extraction of water from rivers, lakes and reservoirs

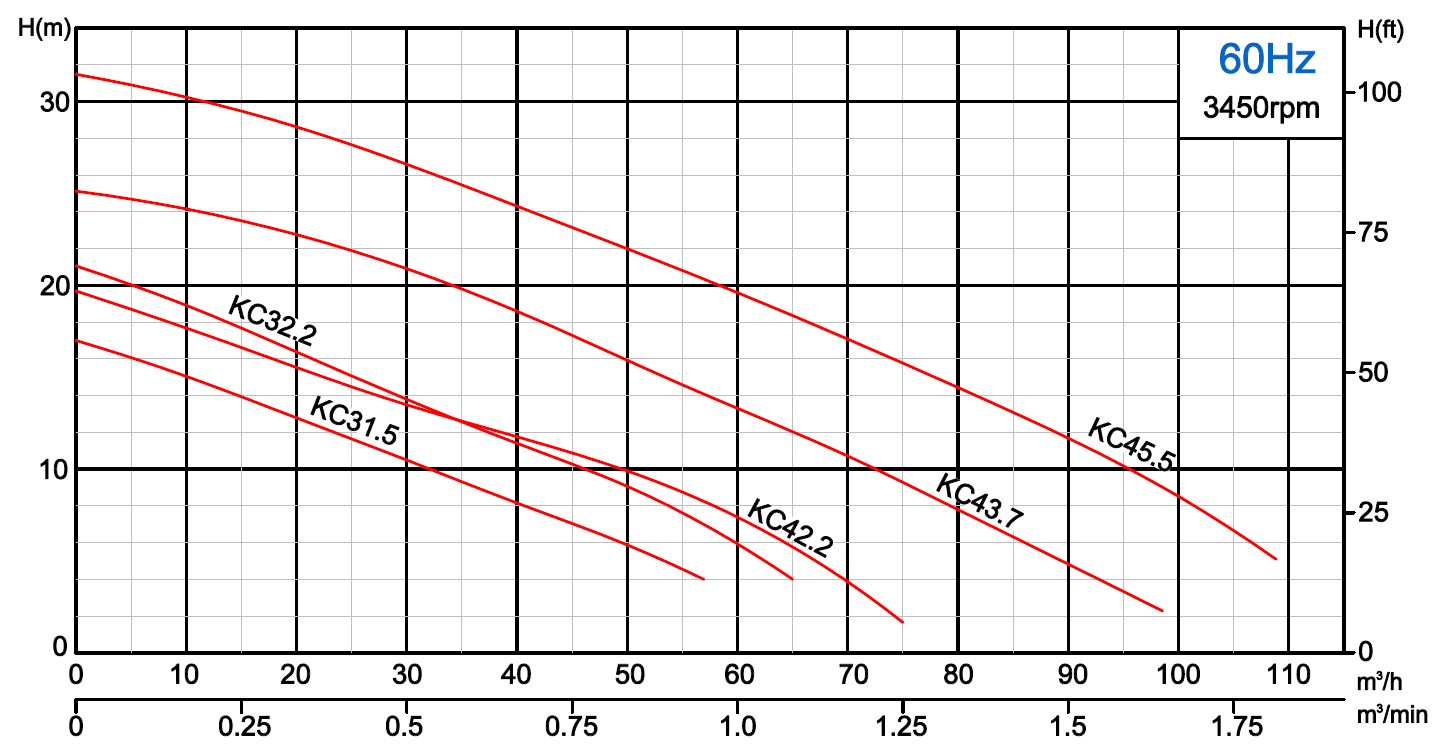

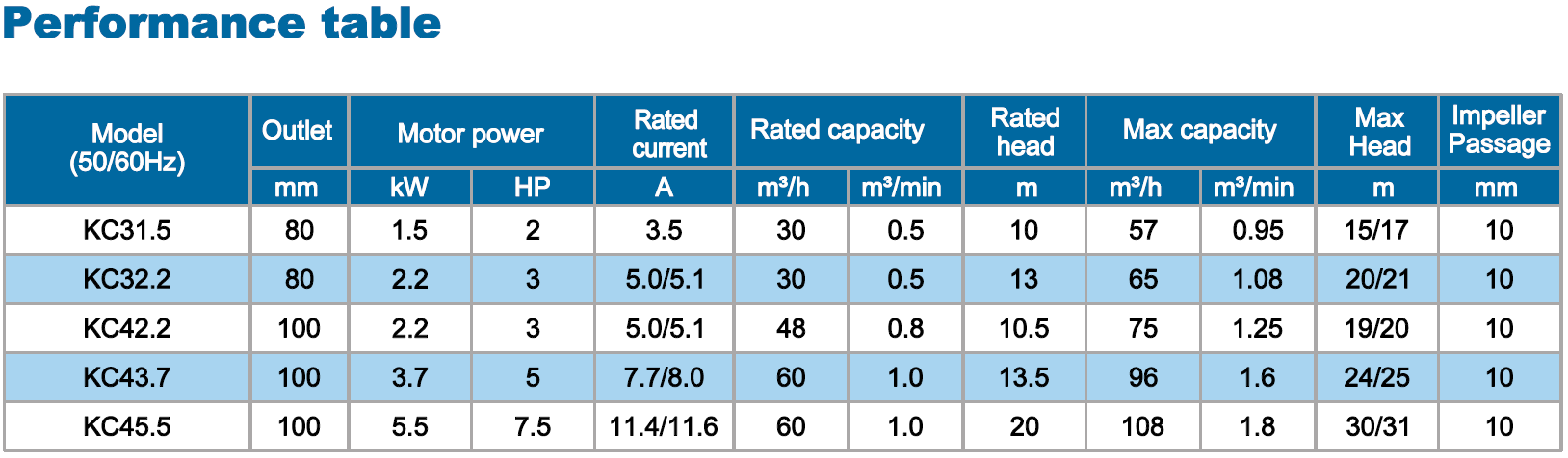

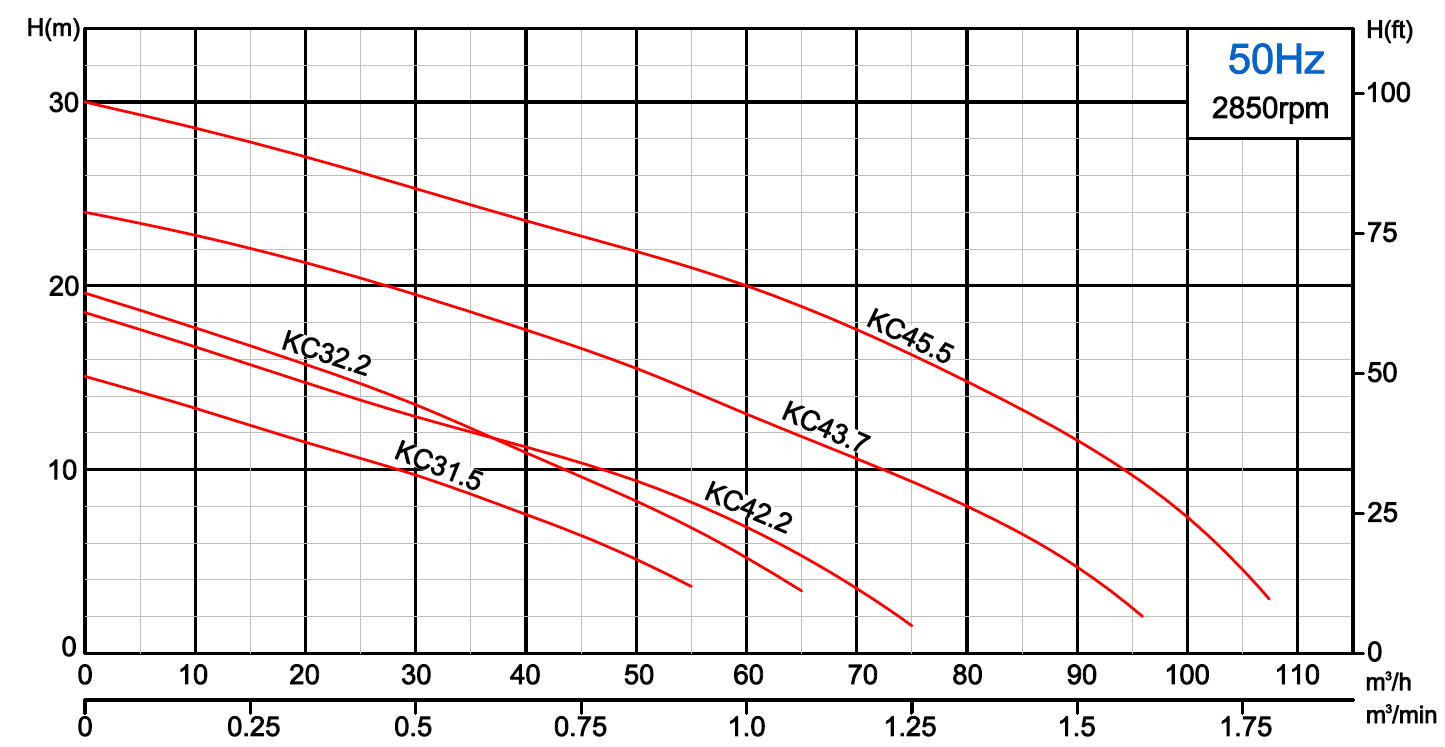

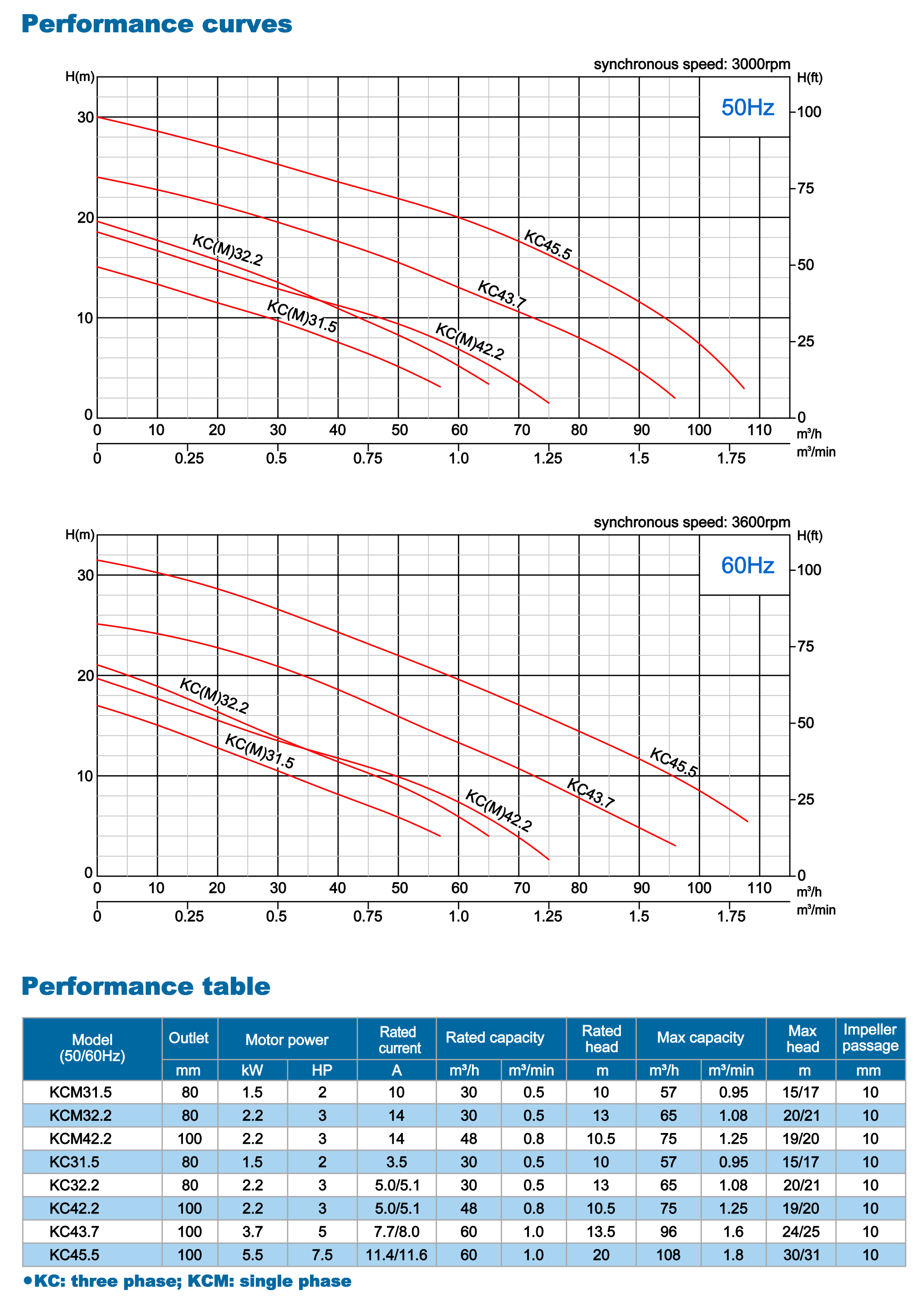

Specification

Capacity: up to 108 m³/h

Head: up to 31 meters

Power: 1.5kW (2HP) to 5.5kW (7.5HP)

Power supply: single phase 220V ± 10%, 50Hz, 60Hz

                        three phase 400V ± 10%, 50Hz

                                            380V ± 10%, 60Hz

Insulation class: F

Protection class: IP68

Cable length: 8m

Water temperature: up to 40℃

Max.water depth:  25m
