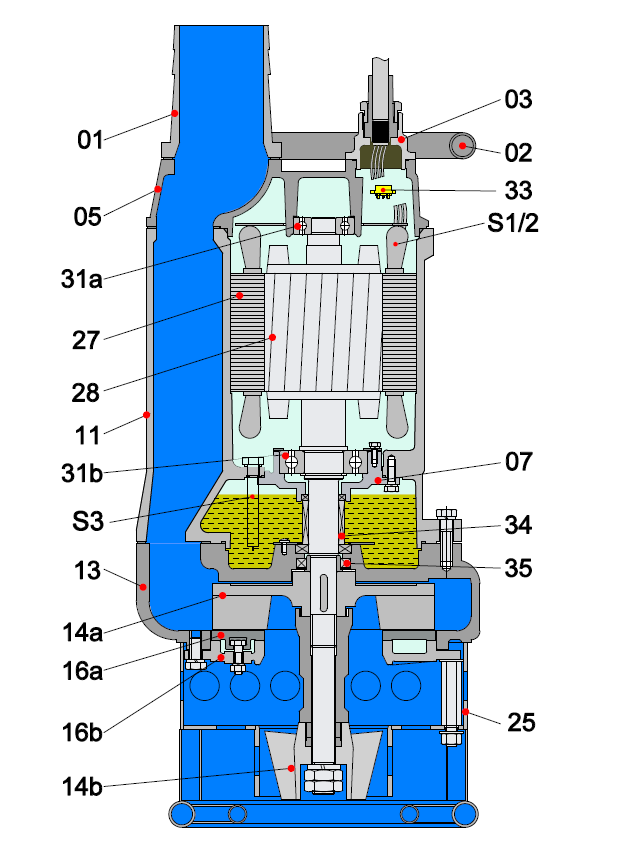

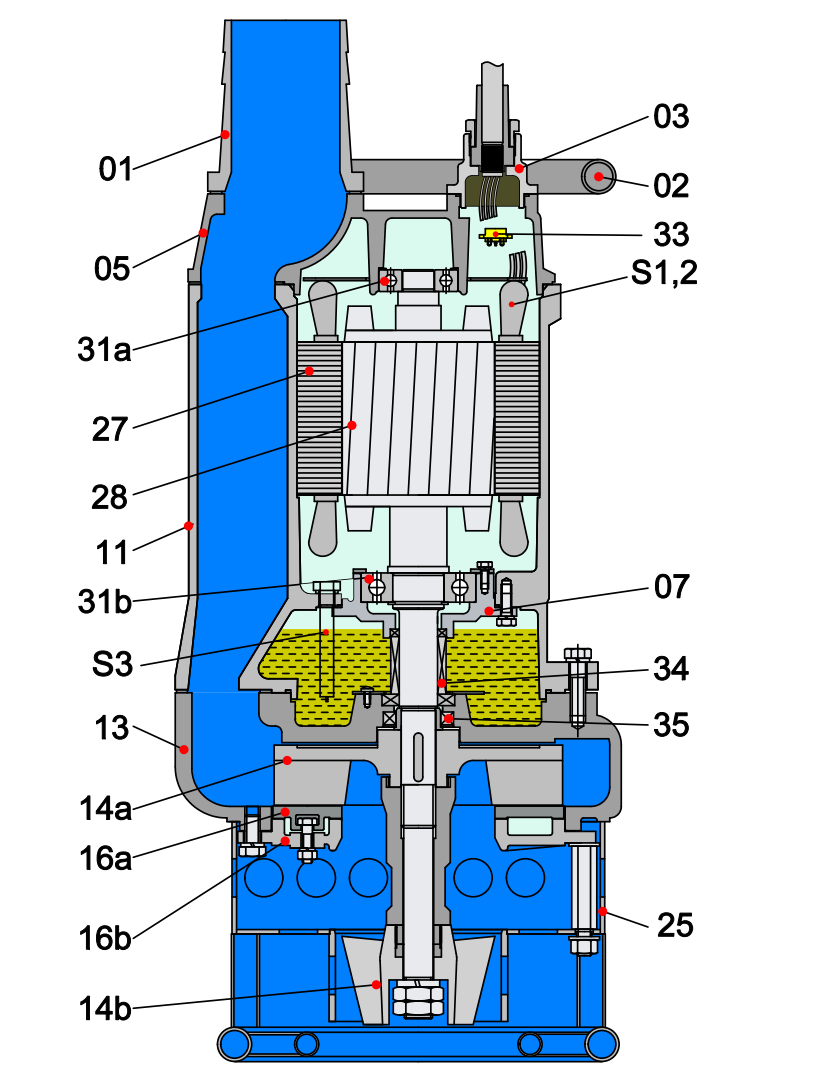

Structure and characteristics

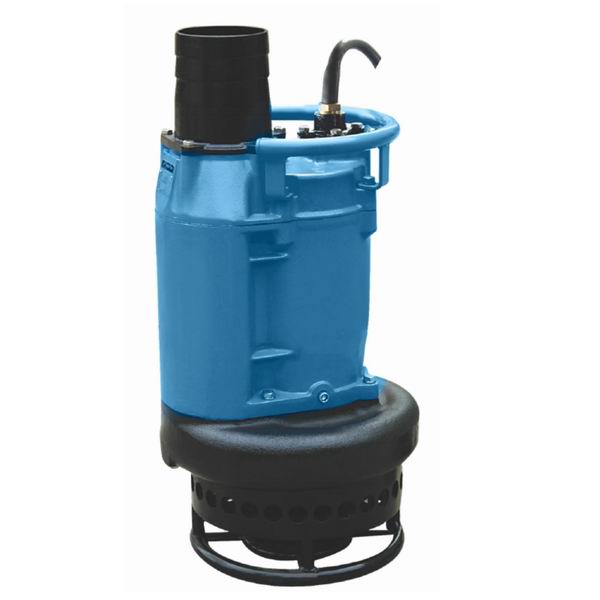

KBS series is submersible slurry pump with 4-pole motor for increased lifetime and greater convenience. High chrome alloy impeller combined with agitator is designed for pumping heavy slurry. Slim pump body with a top discharge design enables pump installation in narrow spaces. The pump is also designed for pumping bentonite mixed water in foundation works or muddy water in civil engineer works.

Application

Civil engineering

Mines, quarries, coal ore & slurries

Sewage treatment plants

General pumping purposes

Pumping fluid: sludge, liquid-containing mud and bentonite

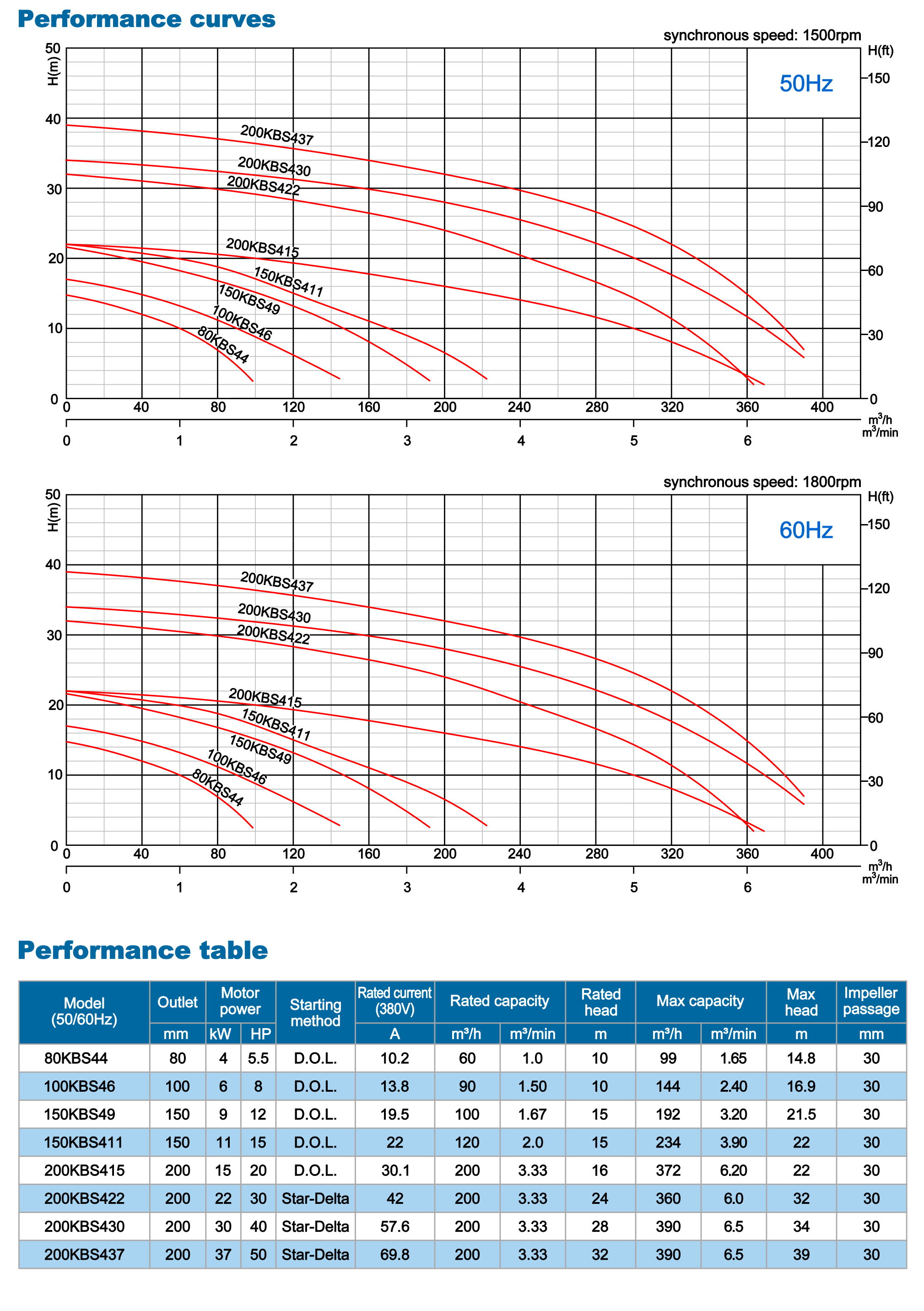

Specification

Capacity: up to 390m³/h

Head: up to 39 meters

Discharge: 80mm(3'') to 200mm(8'')

Power: 4kW (5.5HP) to 37 kW (50HP)

Power supply: three phase 380V ± 10%, 50Hz

                                            380V ± 10%, 60Hz

Insulation class: F

Protection class: IP68

Cable length: 8m

Water temperature: up to 40℃

Max. water depth: 15m
