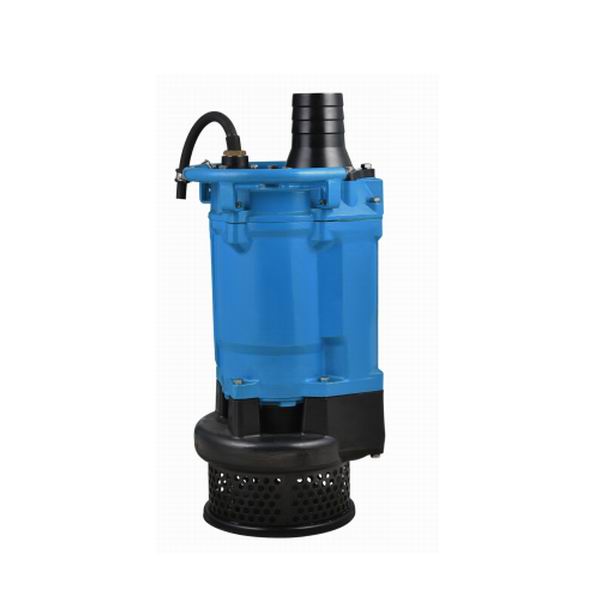

KBZ-HT submersible drainage pump for high temperature liquids

Structure and characteristics

The KBZ-HT series high temperature electric drainage pump can handle  liquids up to 80 degress Celsius.

The insulation level, rubber material, bearing and lubrication of the motor are upgraded on the basis of the standard type,（ handing liquids up to 40 degress Celsius）.


Specification

Discharge bore : 50-150mm

Power:1.5kW (2HP) to 15 kW (20HP)

Insulation class : H

Protection class : IP68

Water temperature : up to 80℃

PH : 6 to 10

Power supply :

      three  phase 400V ±10%, 50Hz

      three  phase 380V ±10%, 60Hz

Capacity : up to 150m³/h

Head : up to 52m

Maximum immersion depth : 25m

Cable Length : 8m

get a free quote
Catalogue Download

Series Product Specfications

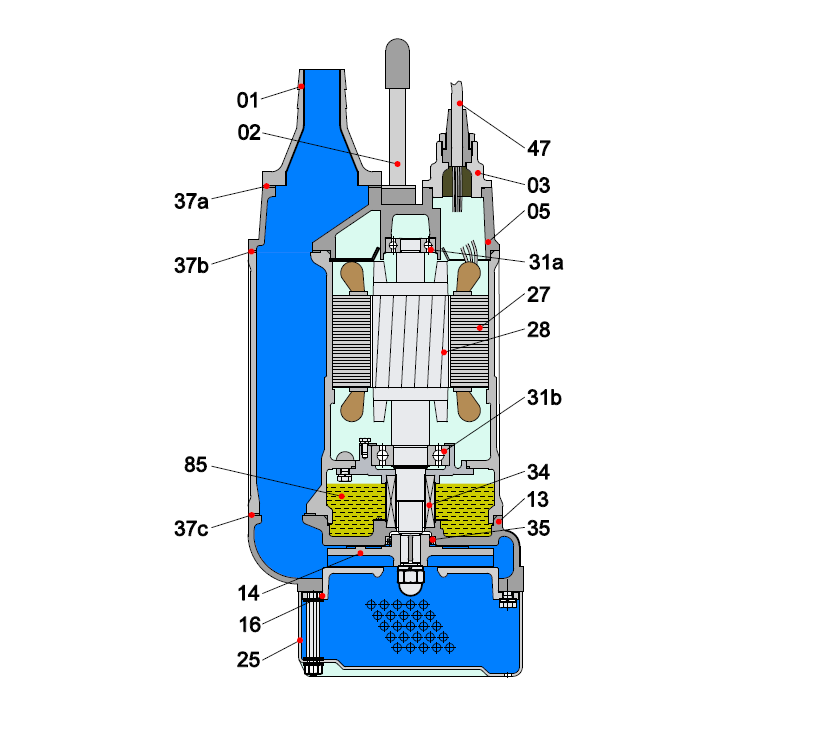

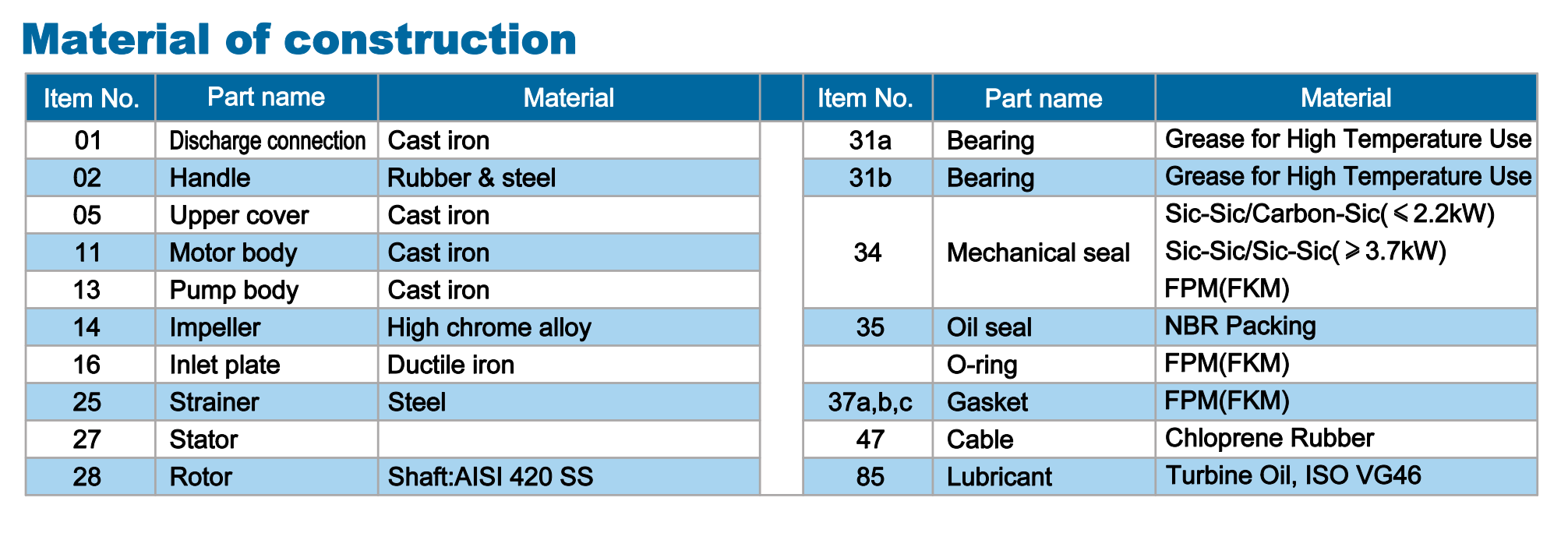

Material of Construction

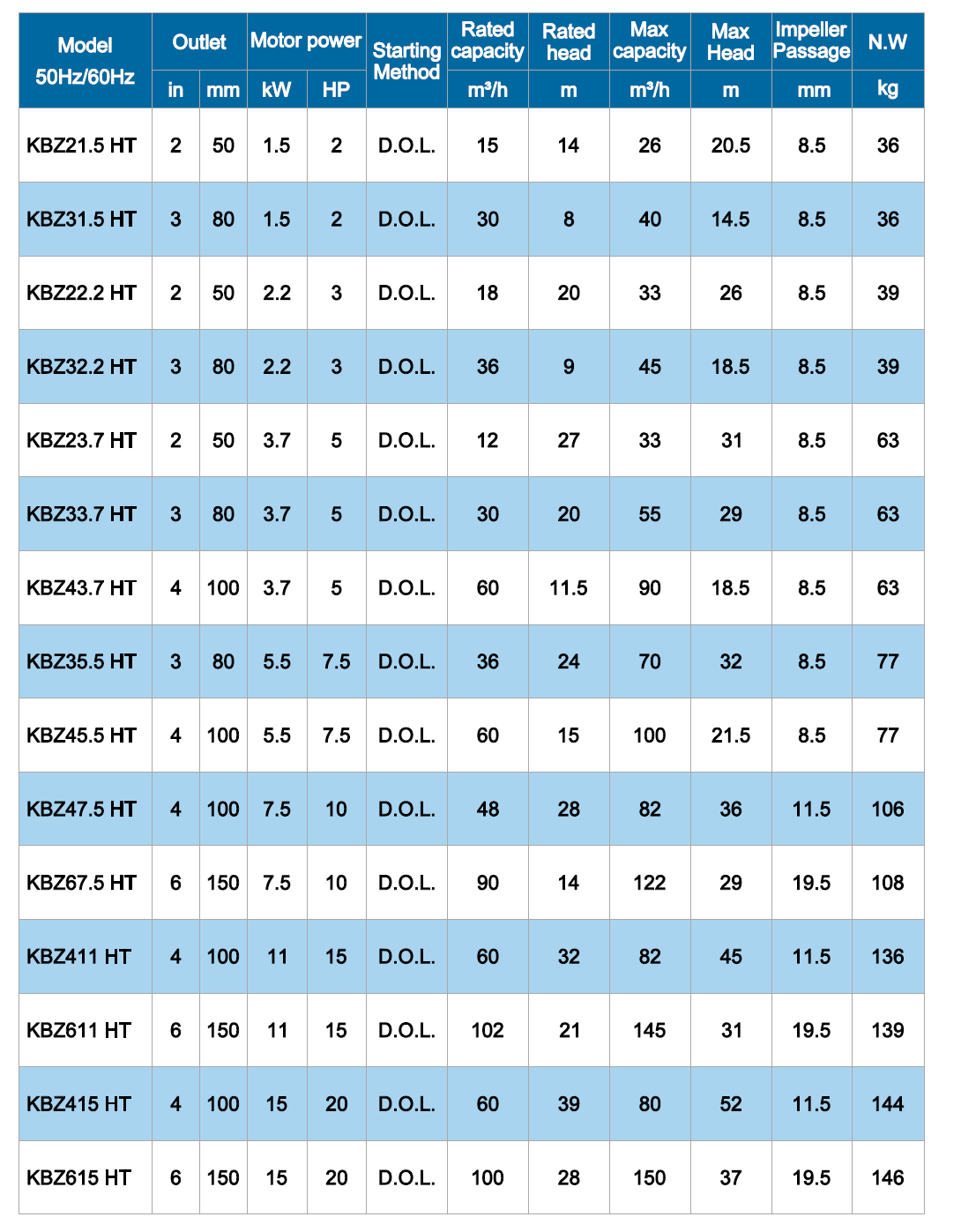

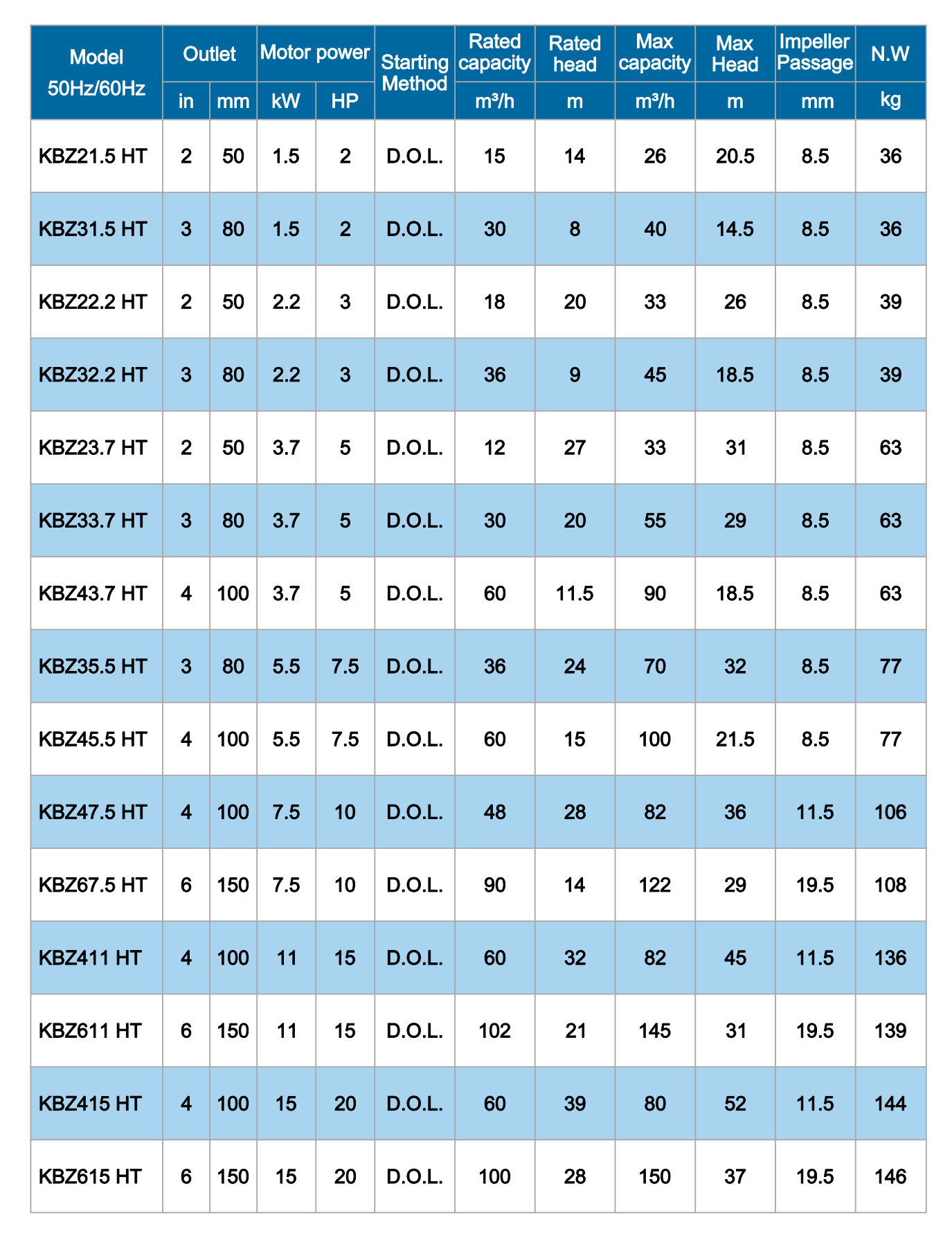

Specification

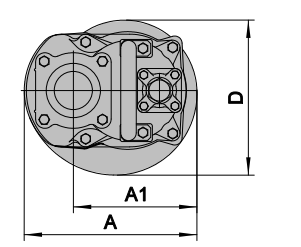

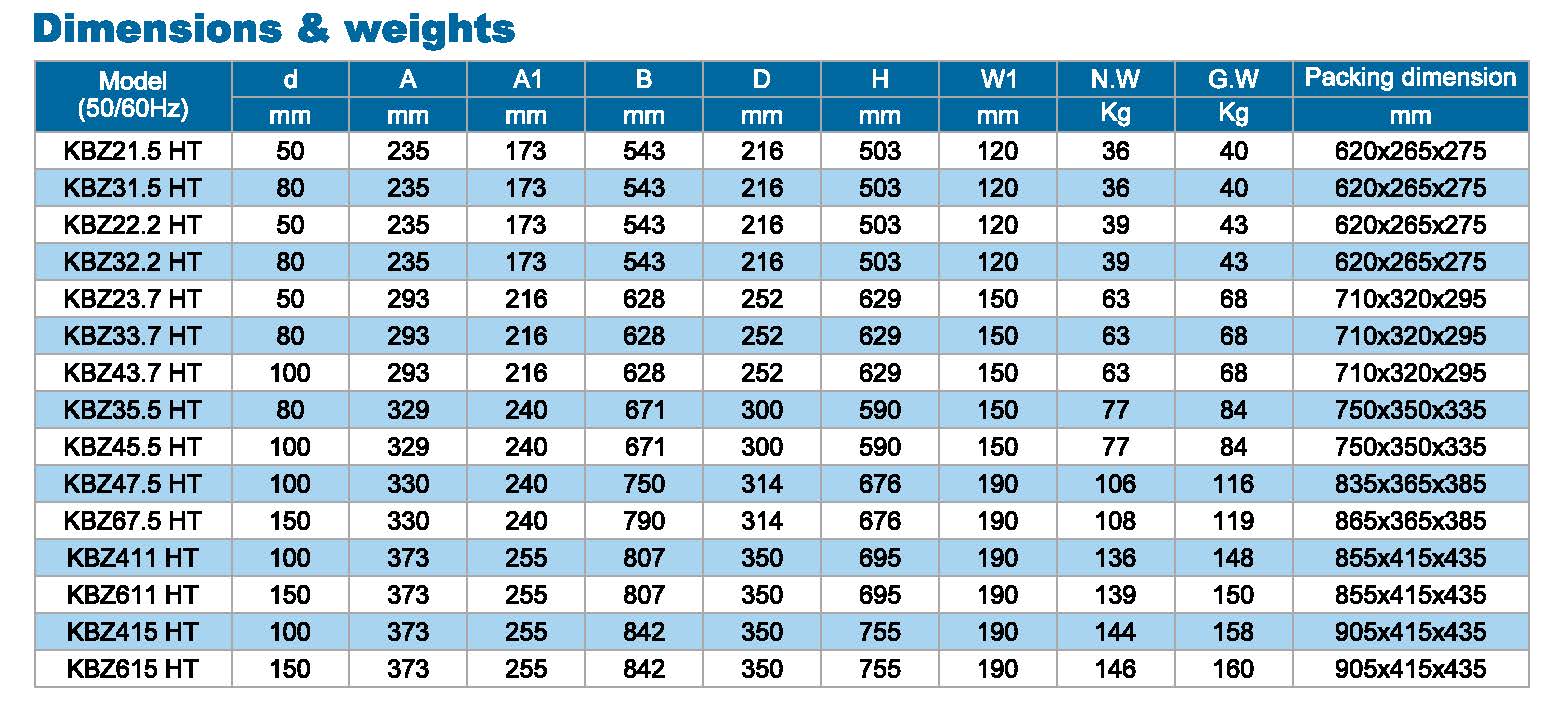

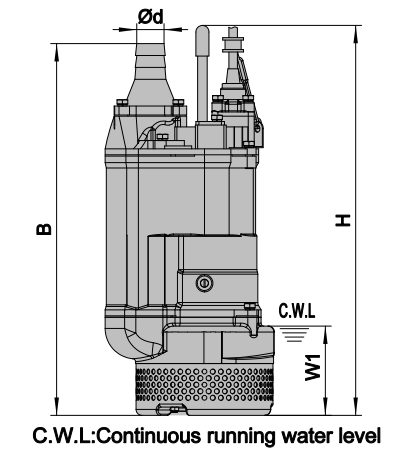

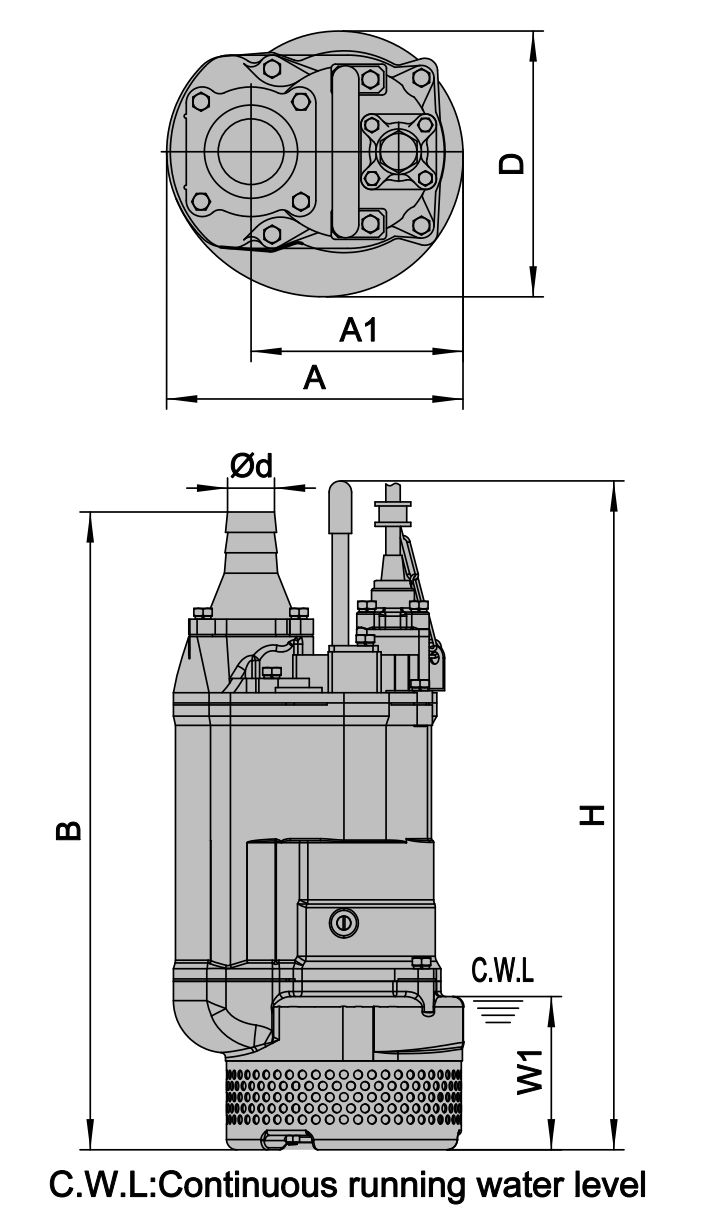

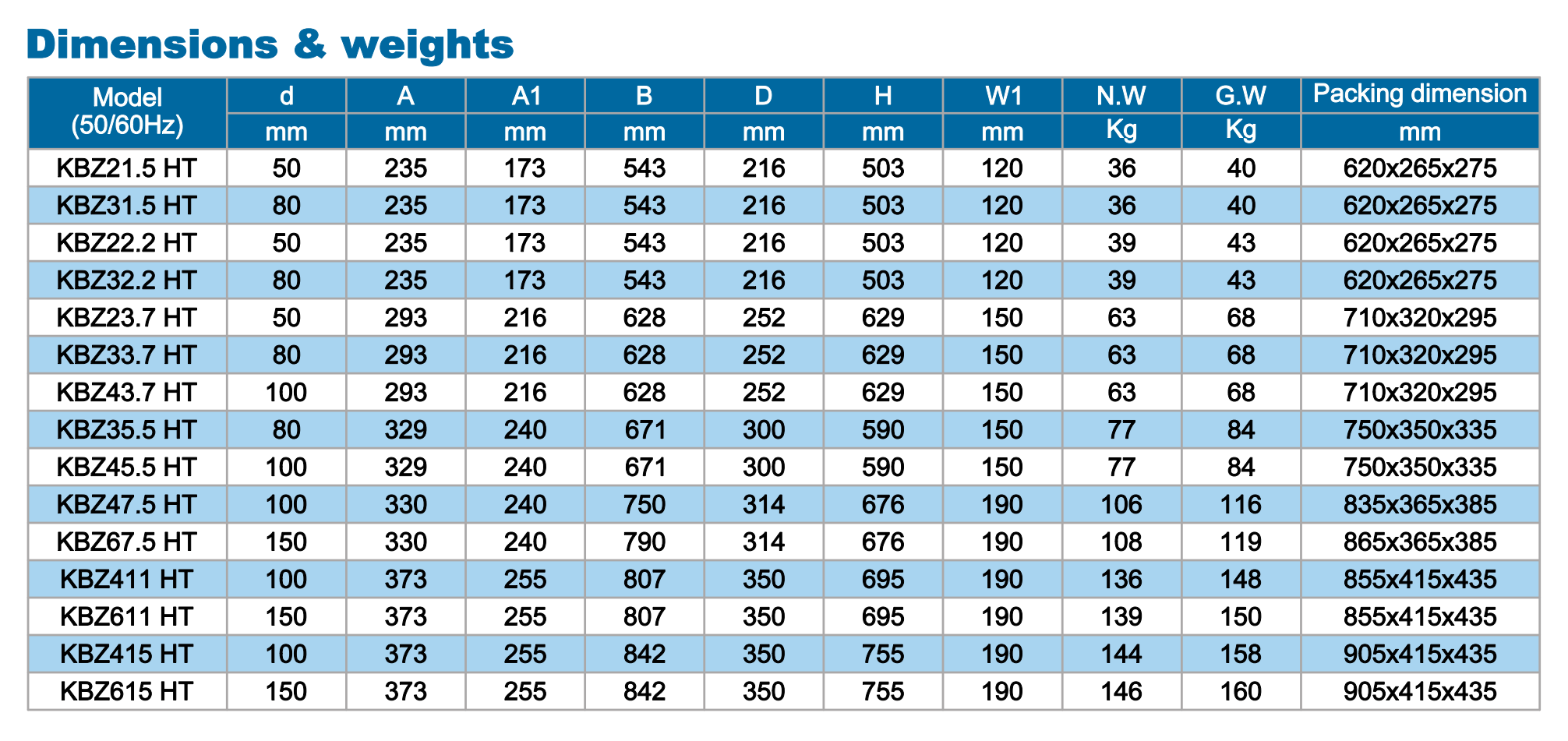

Packing Dimension










document dowload

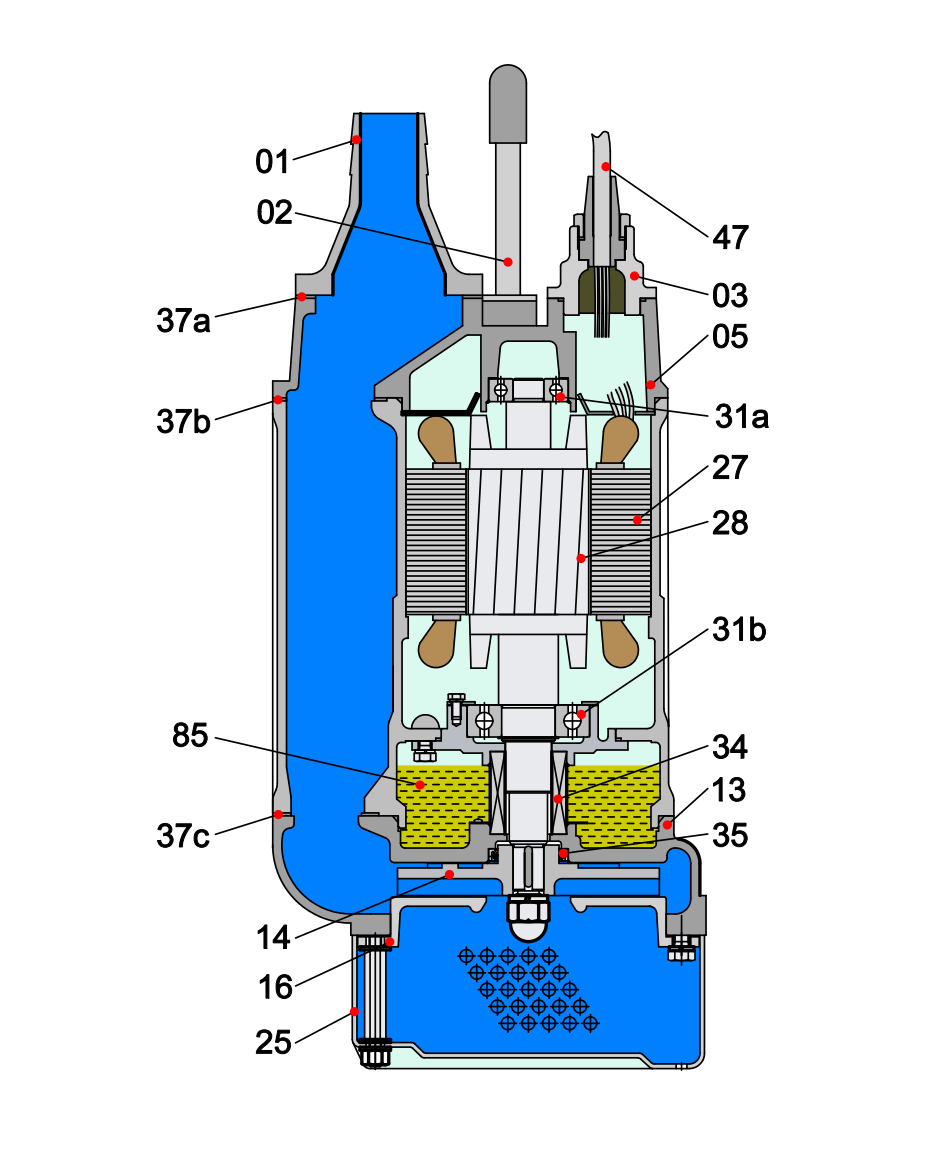

explosive view-G

Details

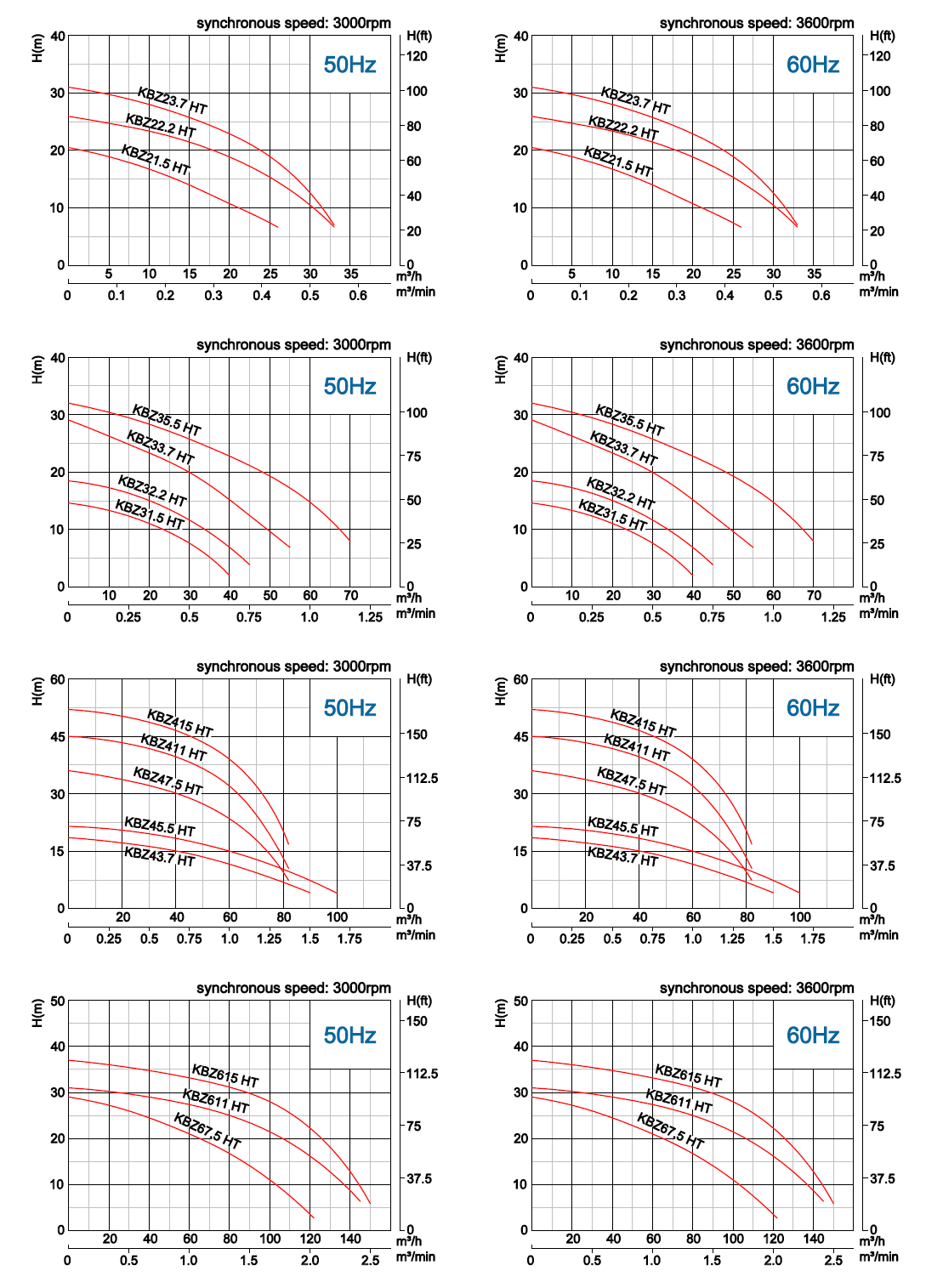

50Hz-G

Details

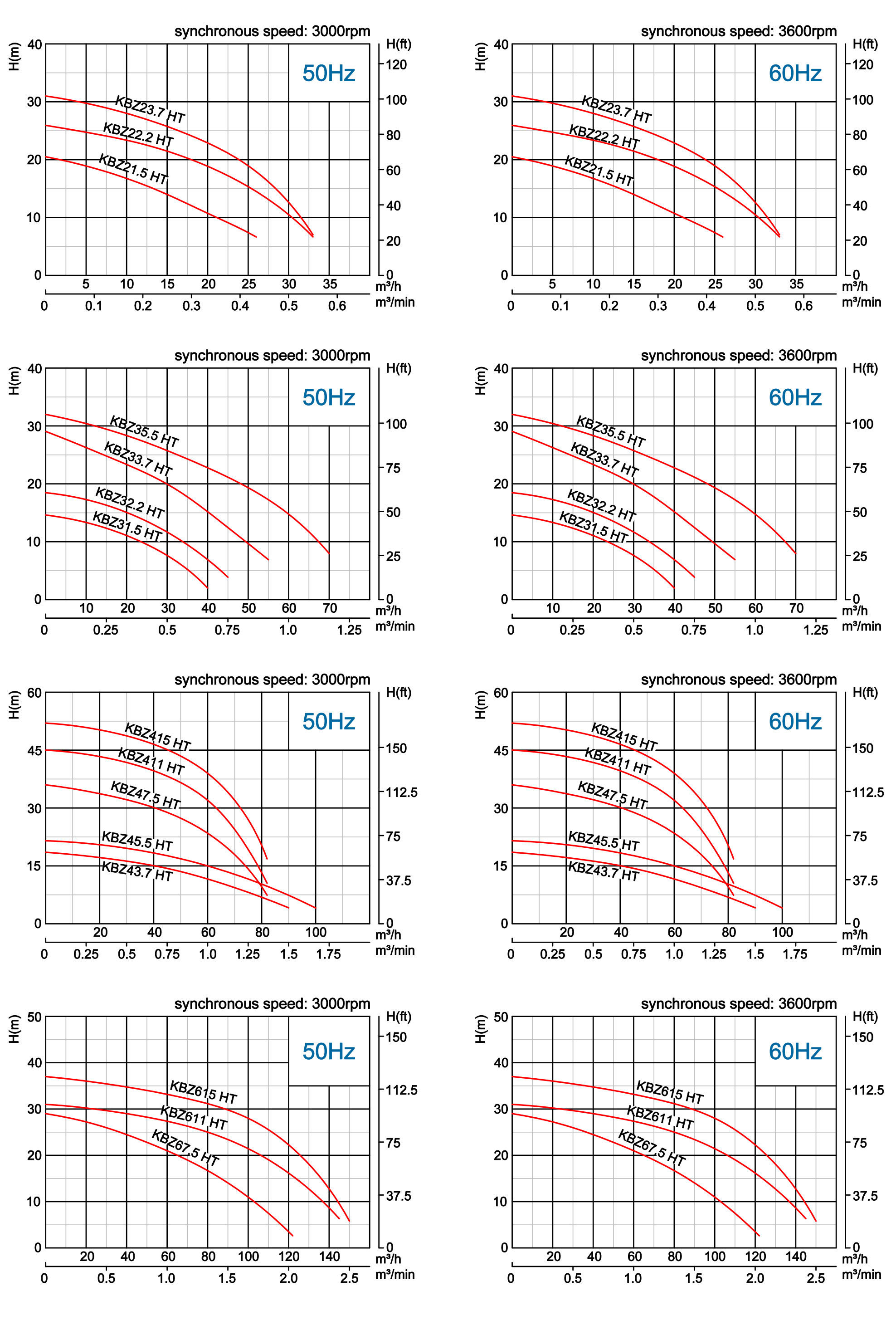

60Hz-G

Details

Consumable Parts

KBZ-HT submersible drainage pump for high temperature liquids

pump body

KBZ-HT submersible drainage pump for high temperature liquids

grinder system1

KBZ-HT submersible drainage pump for high temperature liquids

grinder system2

KBZ-HT submersible drainage pump for high temperature liquids

impeller
