Structure and characteristics

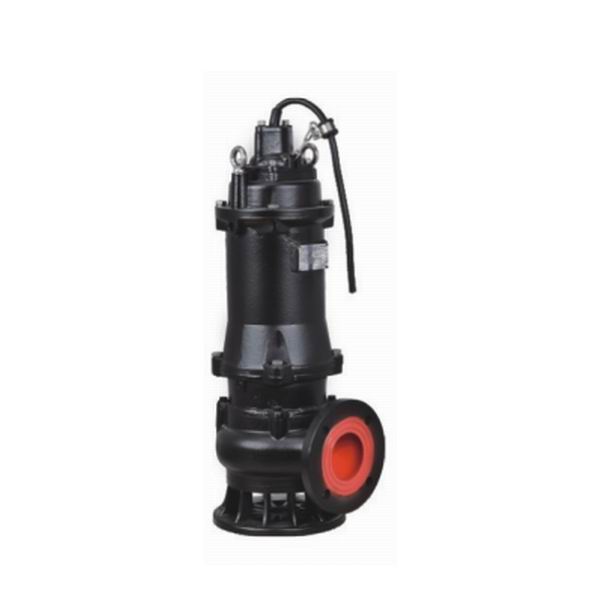

The B-HT series high-temperature submersible electric pump can handle liquids up to 80 degrees Celsius.

The insulation level, rubber material, bearings, and lubrication of the motor are upgraded on the basis of the standard type (handling liquids up to 40 degrees Celsius).

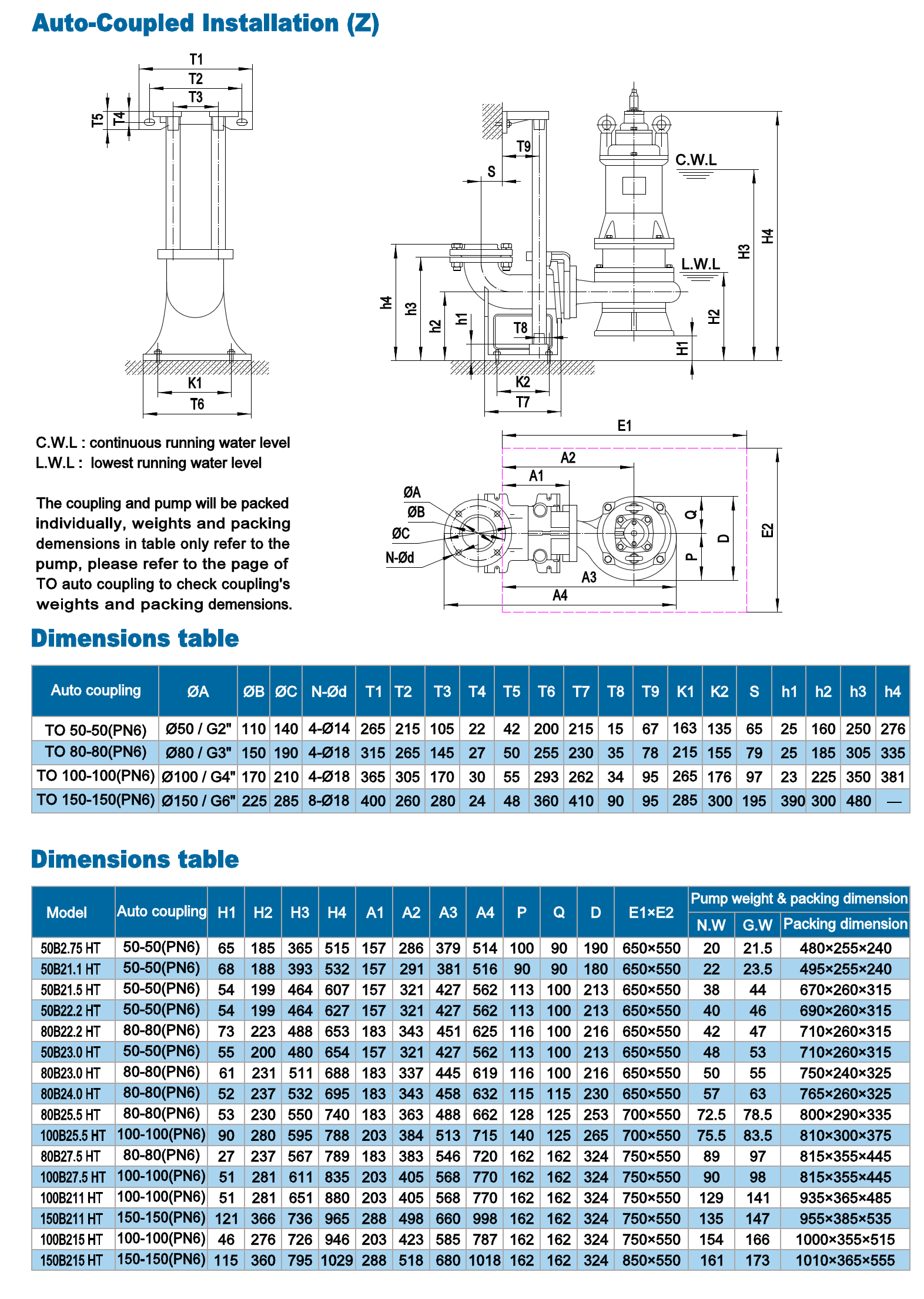

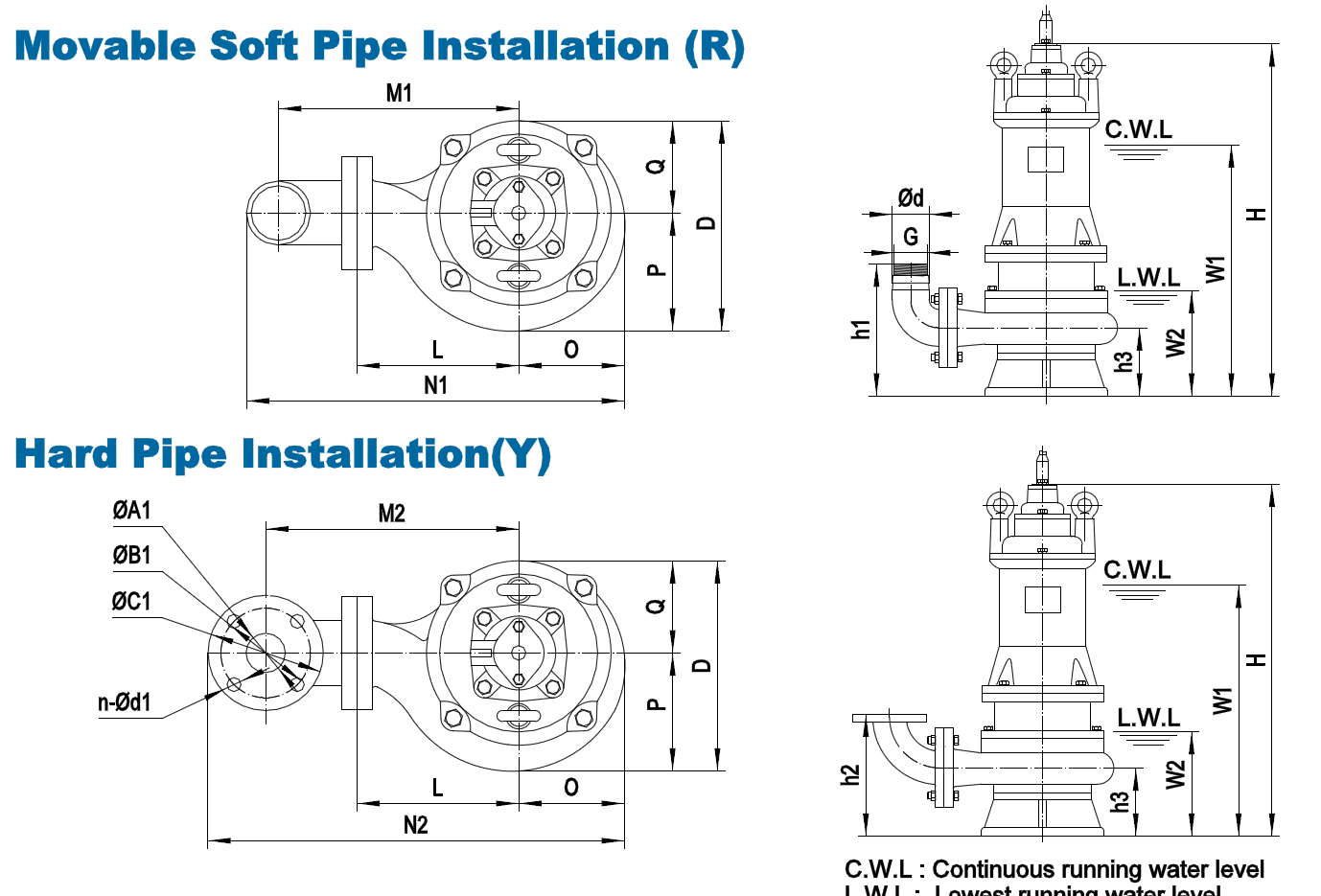

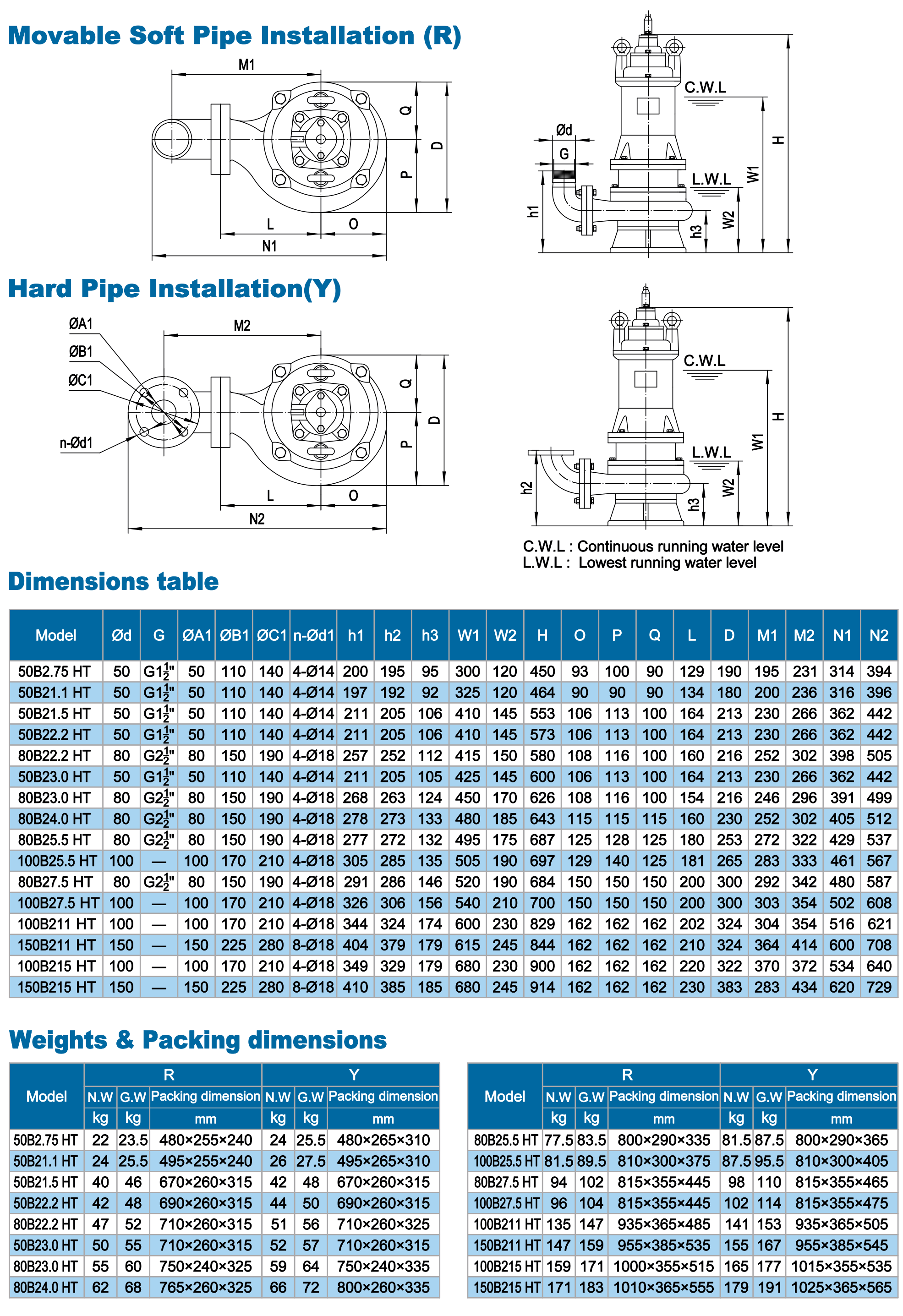

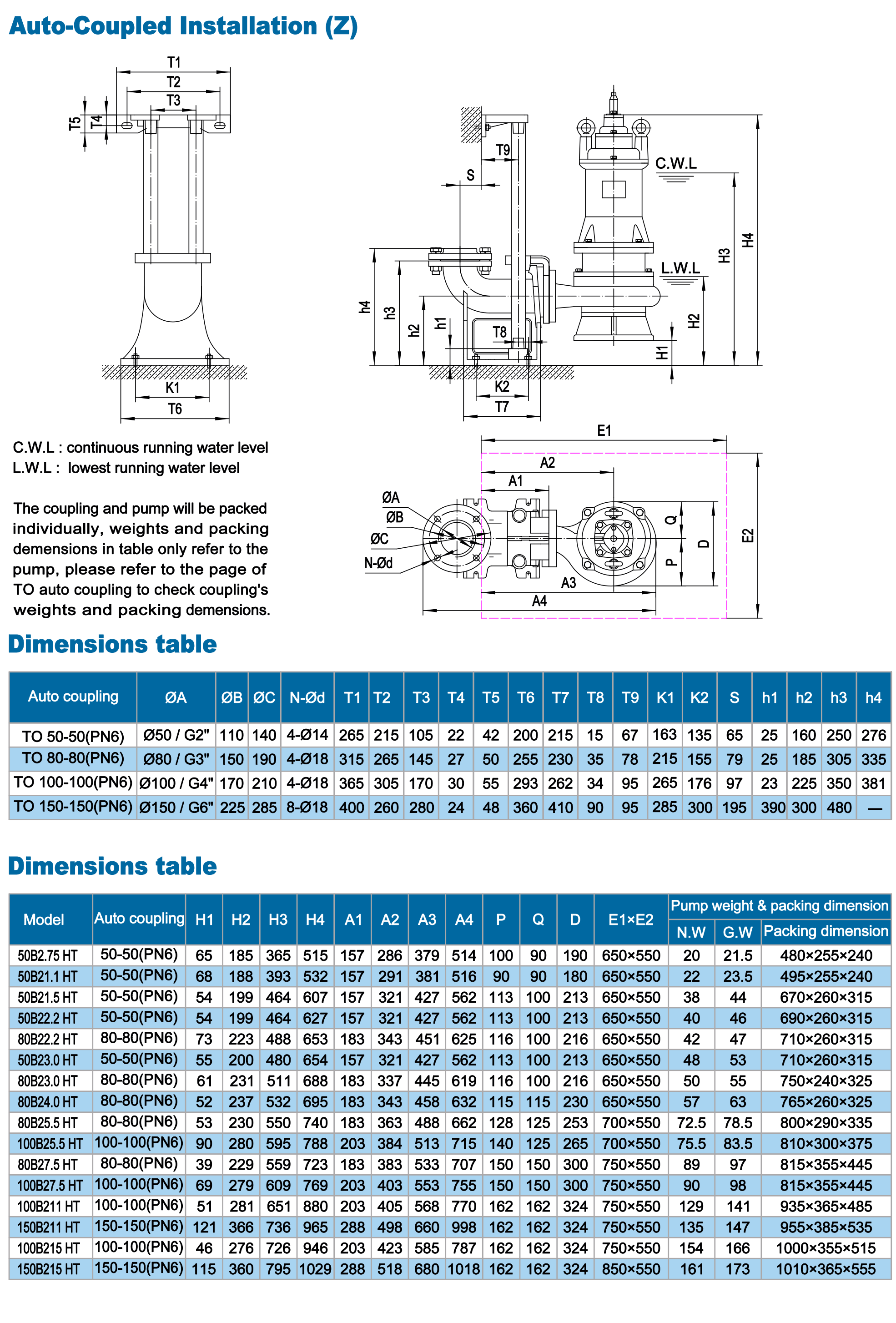

The pumps are suitable for movable soft pipe, fixed hard pipe and auto-coupling installation.

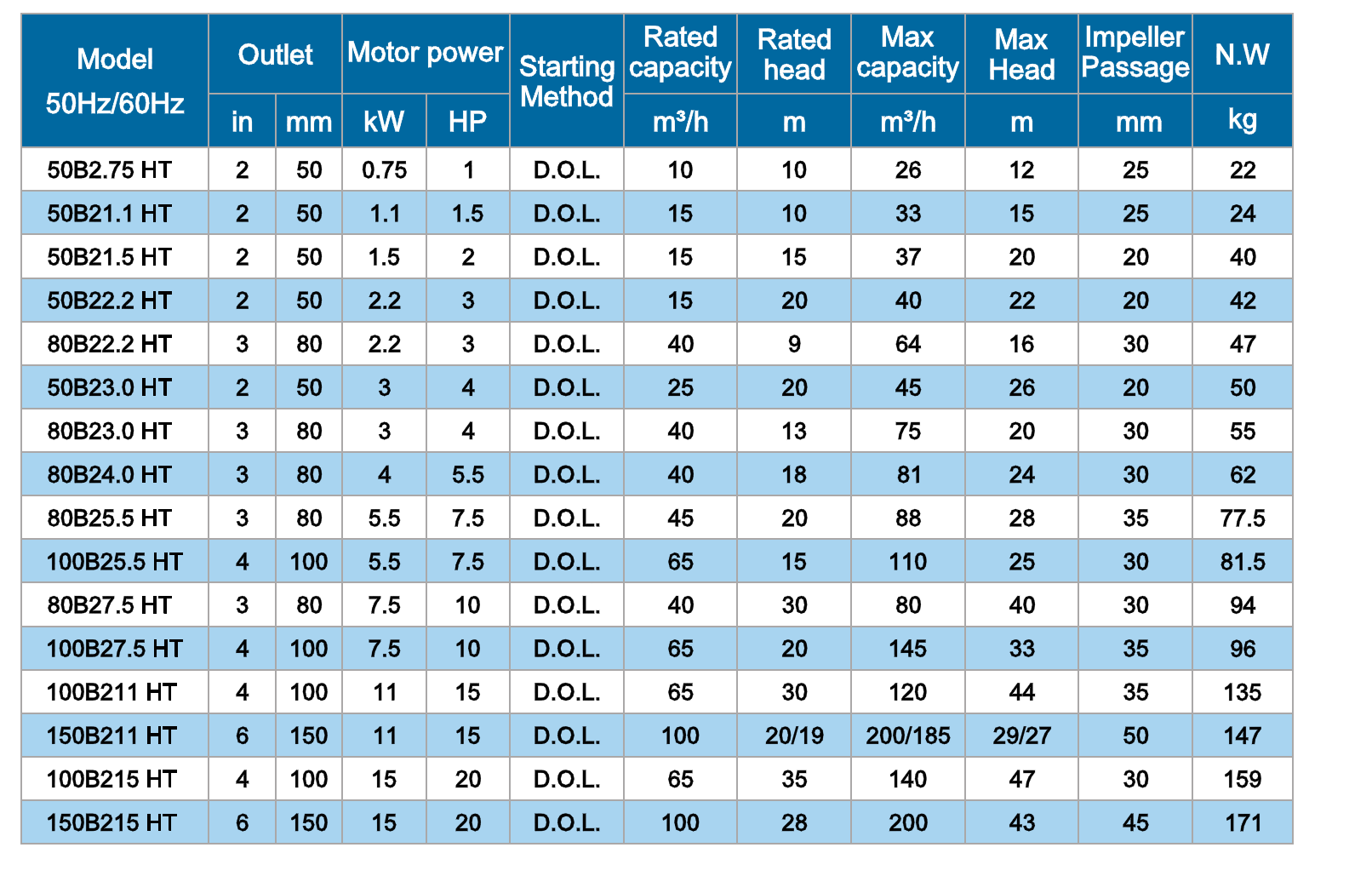

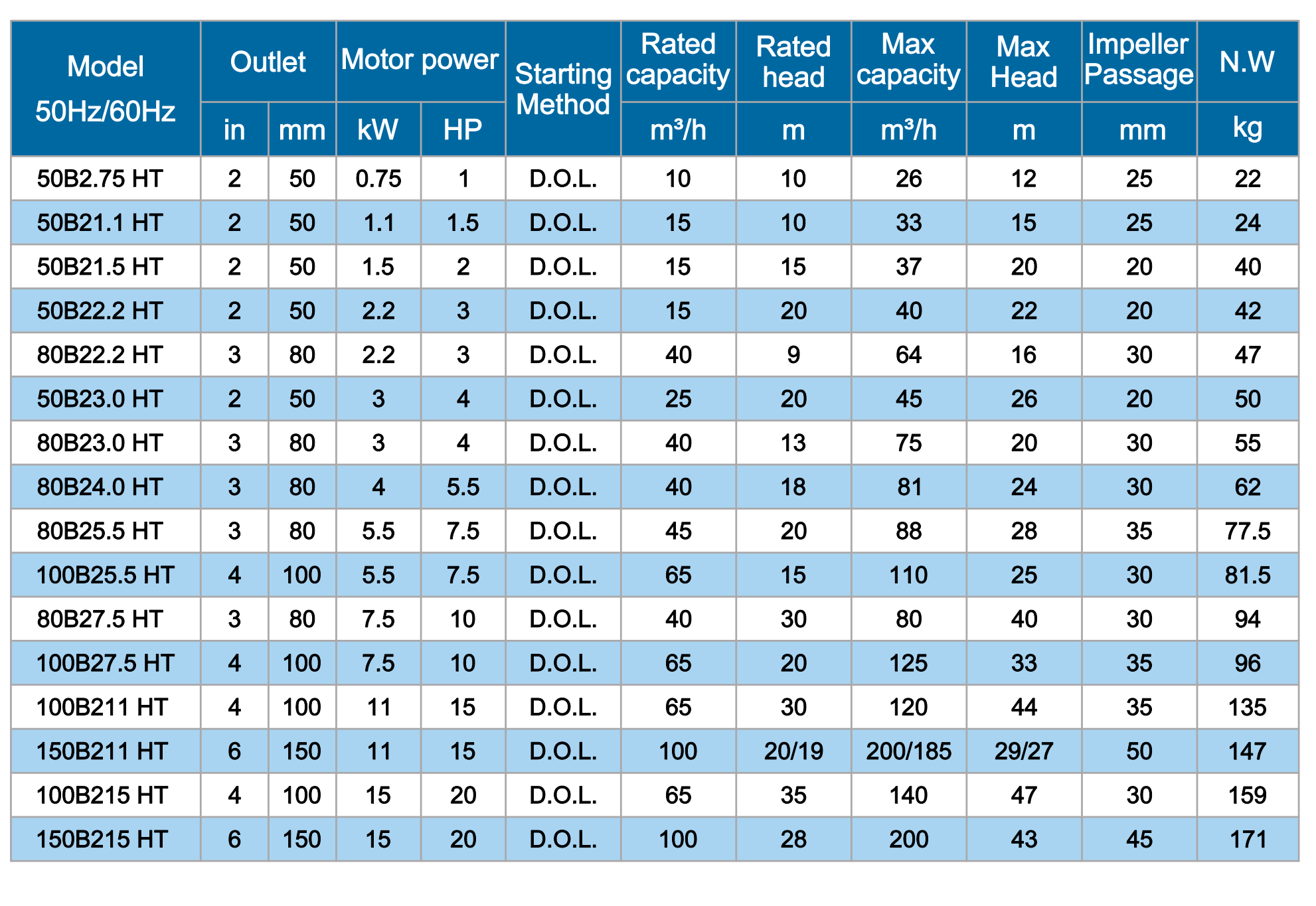

Specification

Discharge Bore : 50-150mm

Insulation class : H

Protection class : IP68

Water temperature : up to 80℃

PH : 6 to 10

Density of liquid : 1.05g/cm³

Power supply :

      three  phase 380V ±10%, 50Hz

      three  phase 380V ±10%, 60Hz

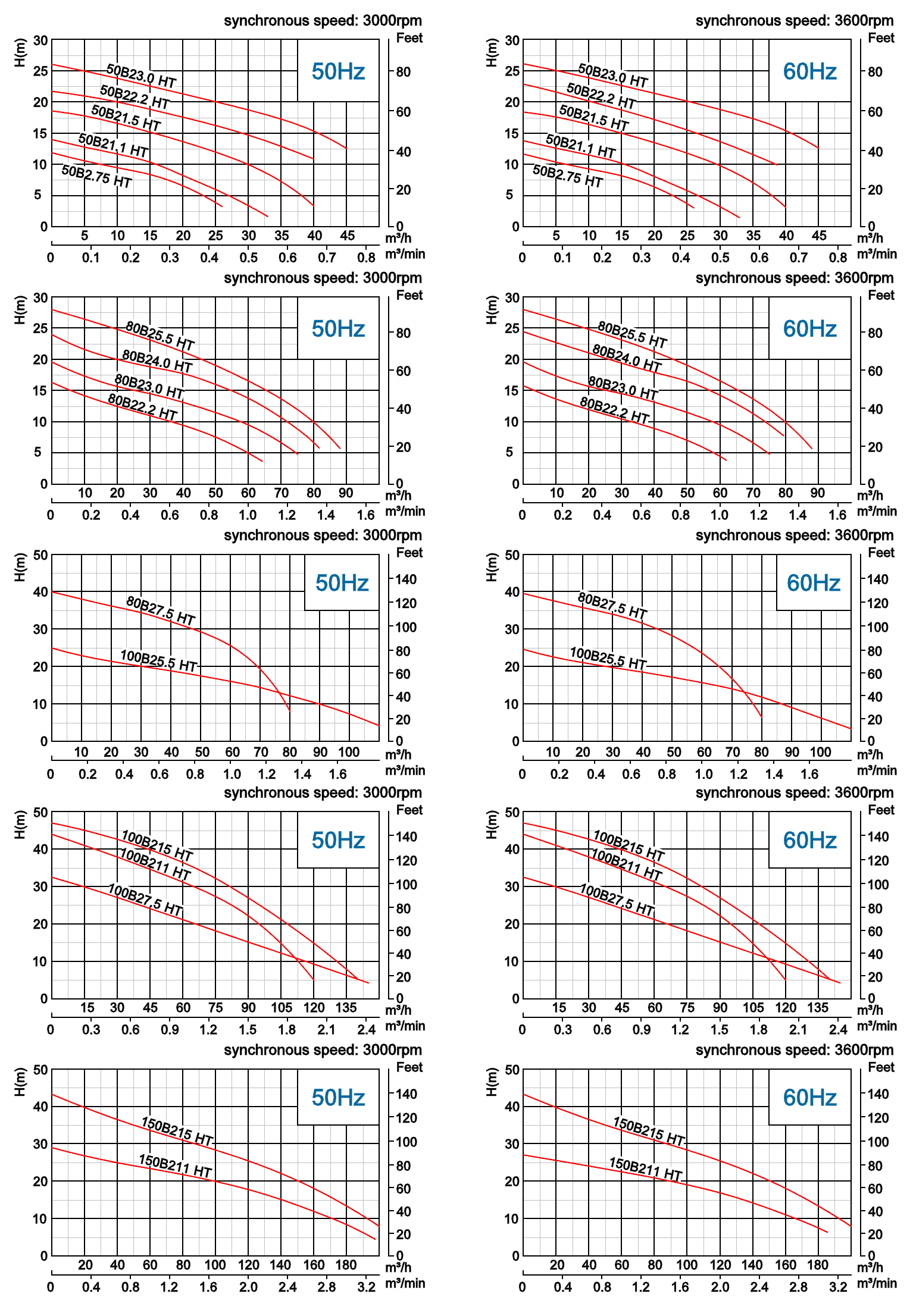

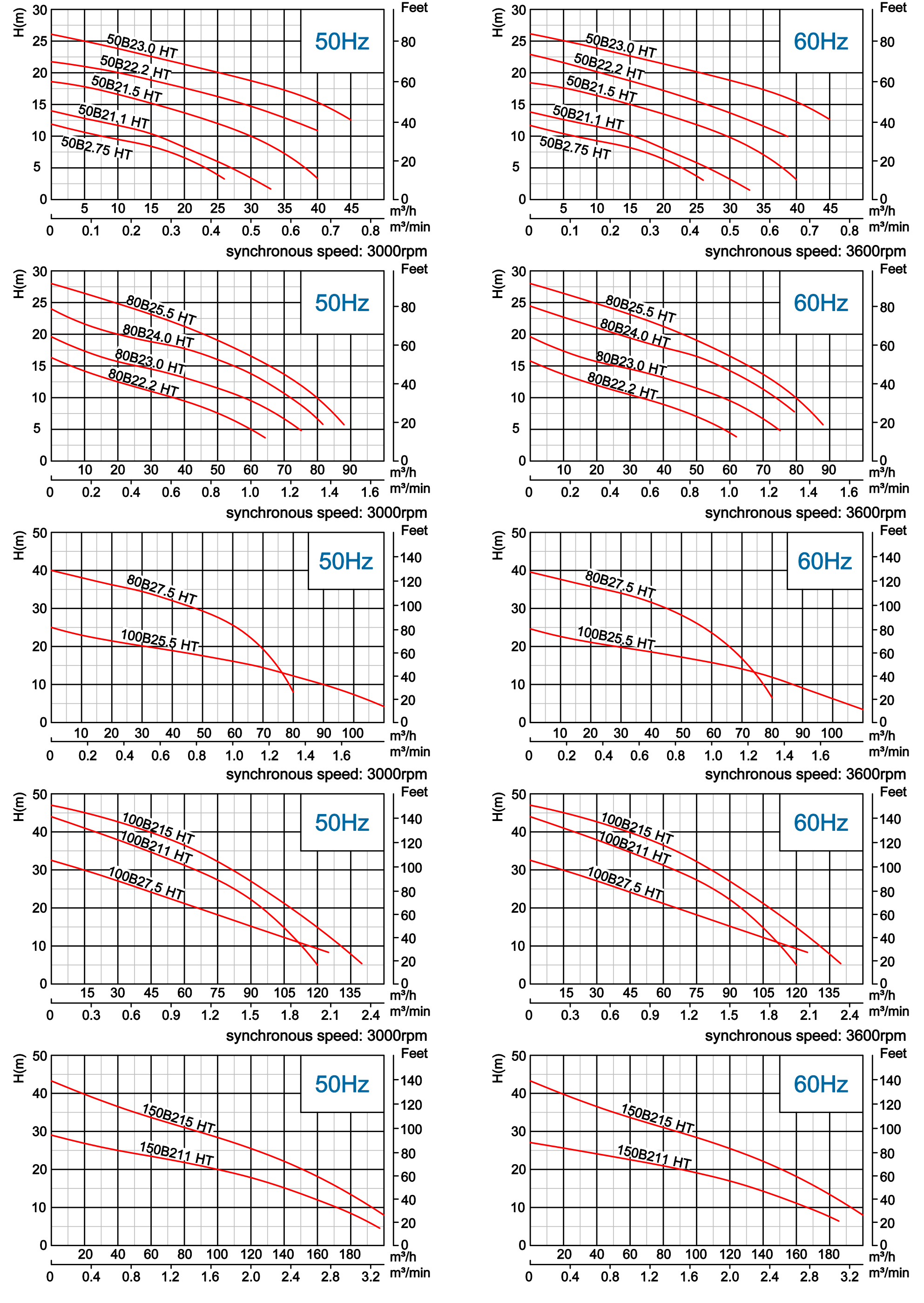

Capacity : up to 200m³/h

Head : up to 47m

Maximum immersion depth : 10m

Cable length : 8m

Cabtyre cable : Chloroprene rubber

Mechanical seal, o-ring : FPM(FKM)

Lubricant : Turbine oil, ISO VG46

Bearing : Grease for high temperature use
