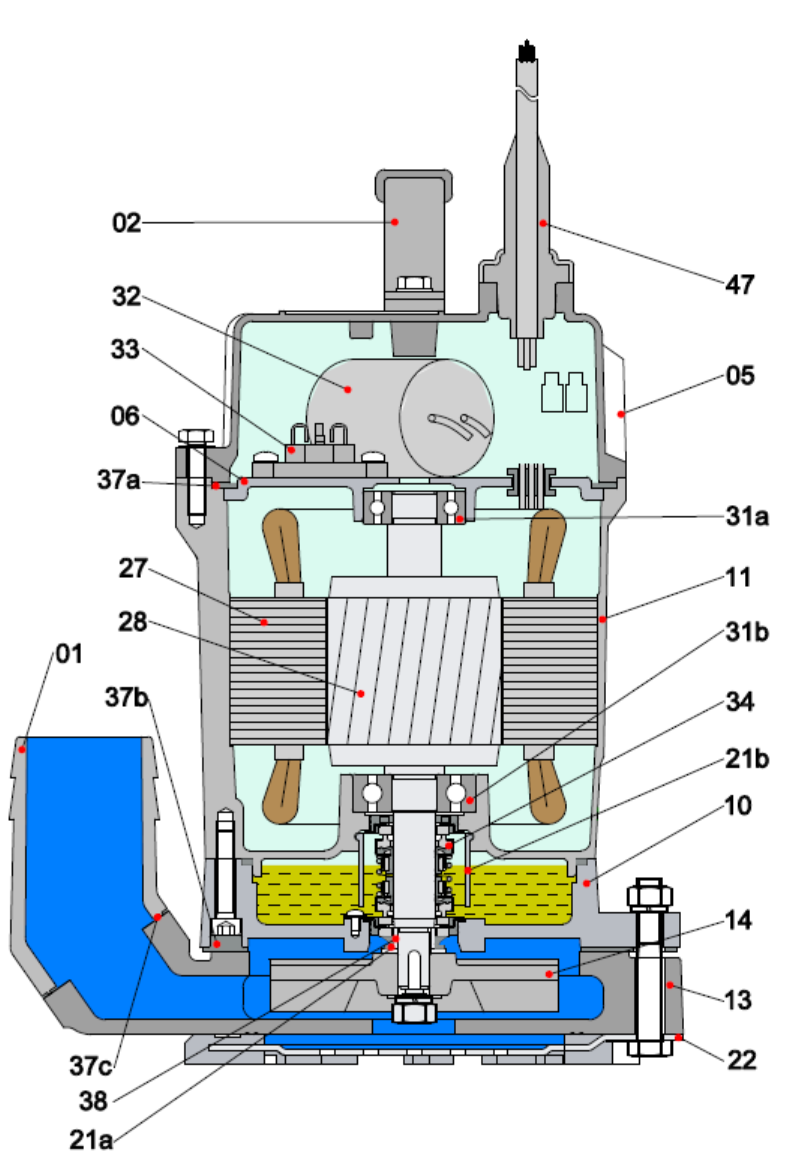

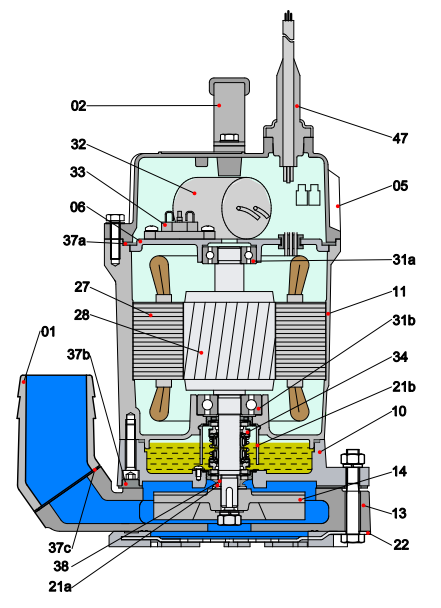

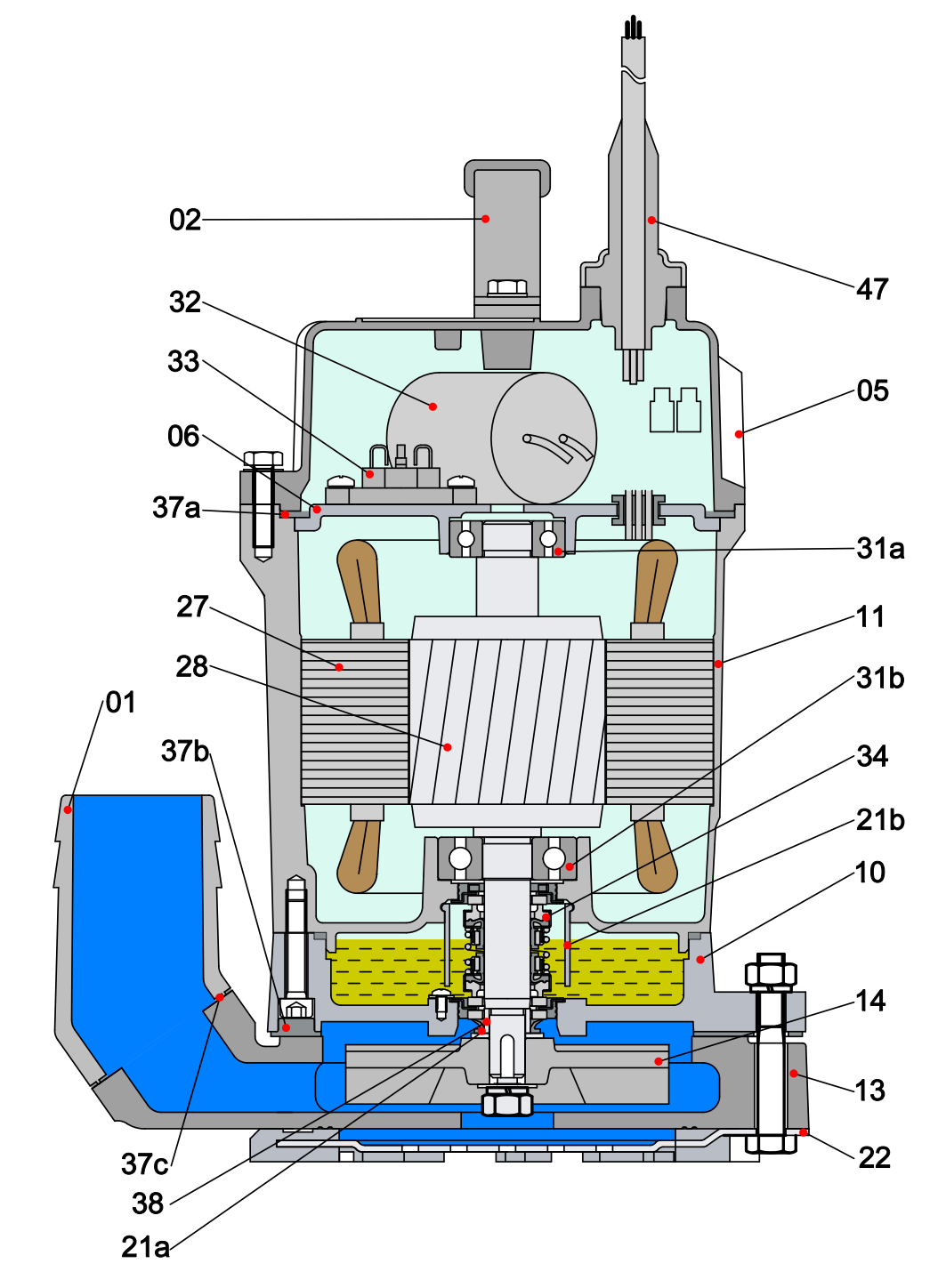

Structure and characteristics

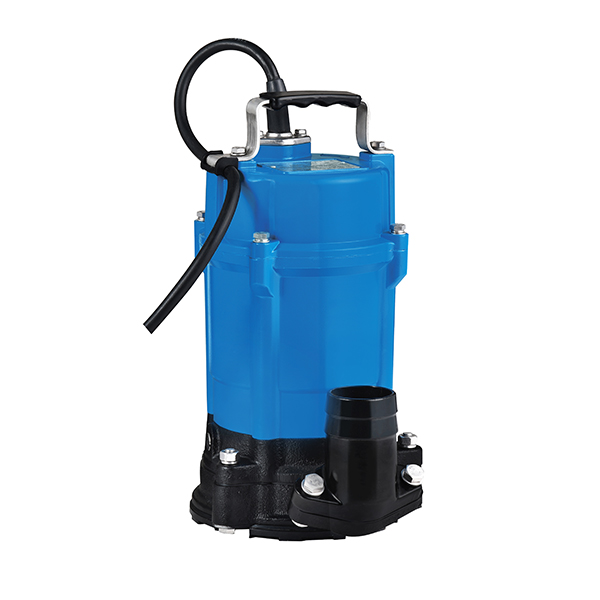

FSR is a submersible residue pump.The pump can start pumping if there is water with its level of 5mm or more and can continue pumping until the water level goes down to 1mm.It is lightweight and compact.

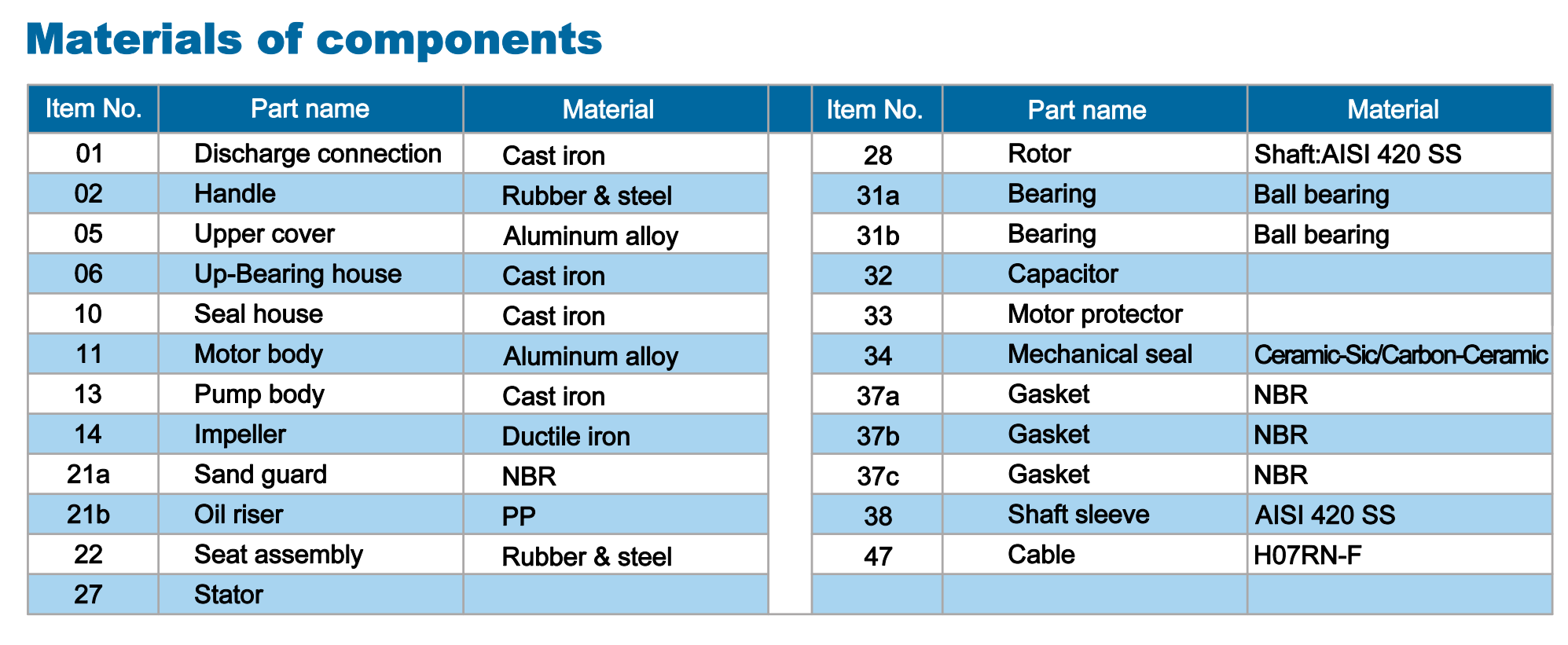

Though the pump is a single-phase unit, it has the durability equivalent to three-phase drainage pumps as the wear parts are made of abrasion-resistant materials.

The discharge direction is selectable between vertical and inclined, which prevents folding or bending of the discharge hose.

Application

Draining storm water on the ground sumps in construction and civil engineering works

Draining residual water at utility intercept sumps or water storage tanks

Draining wash water in water storage tanks

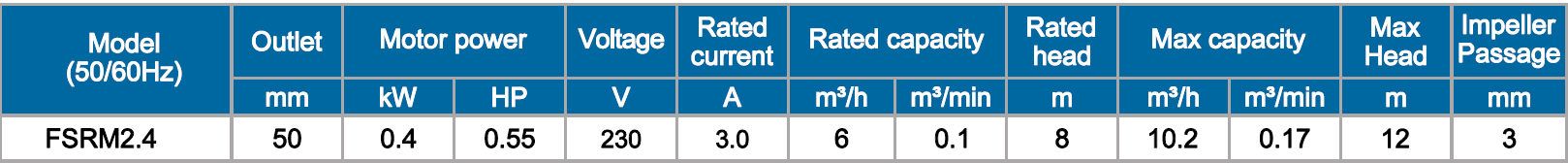

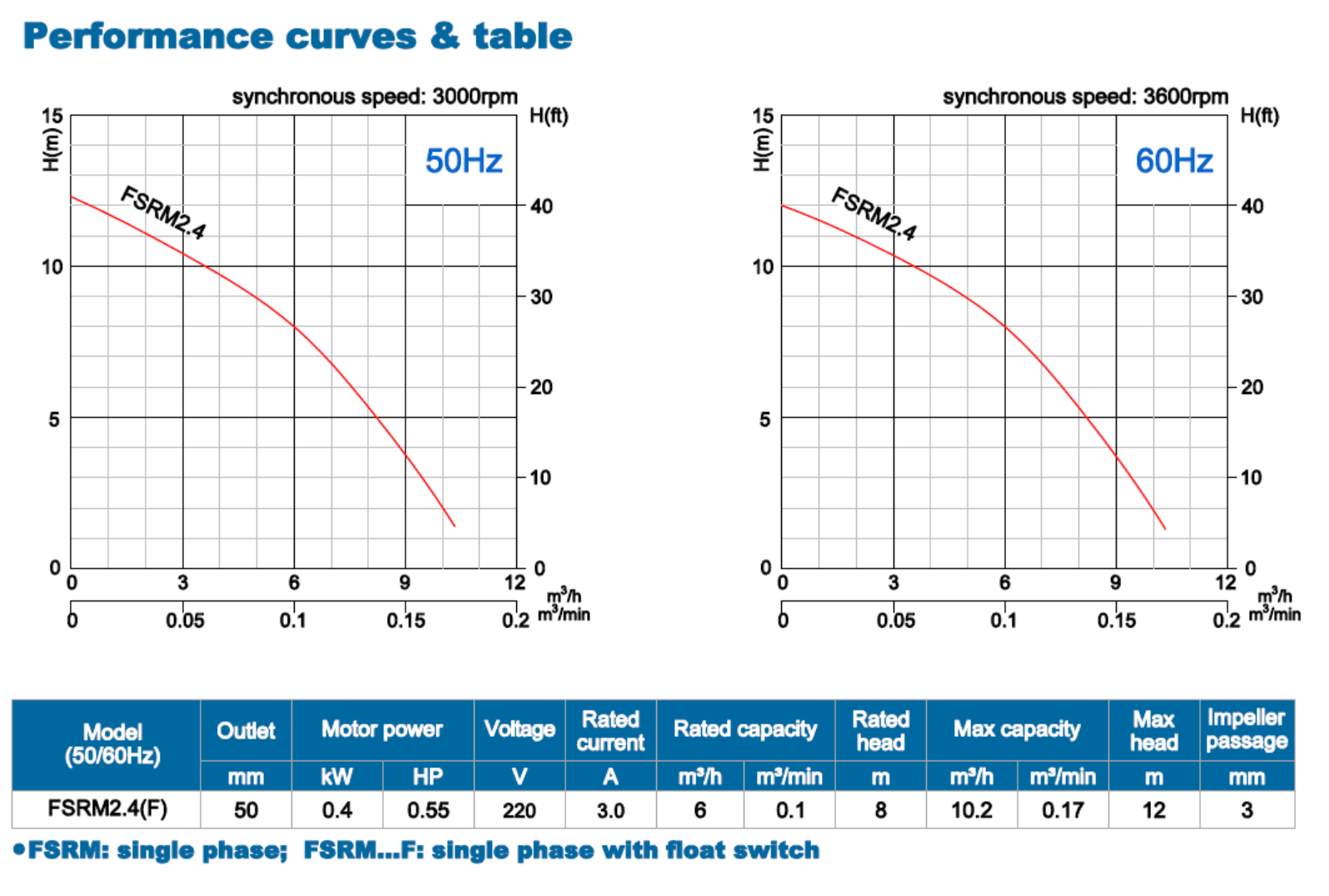

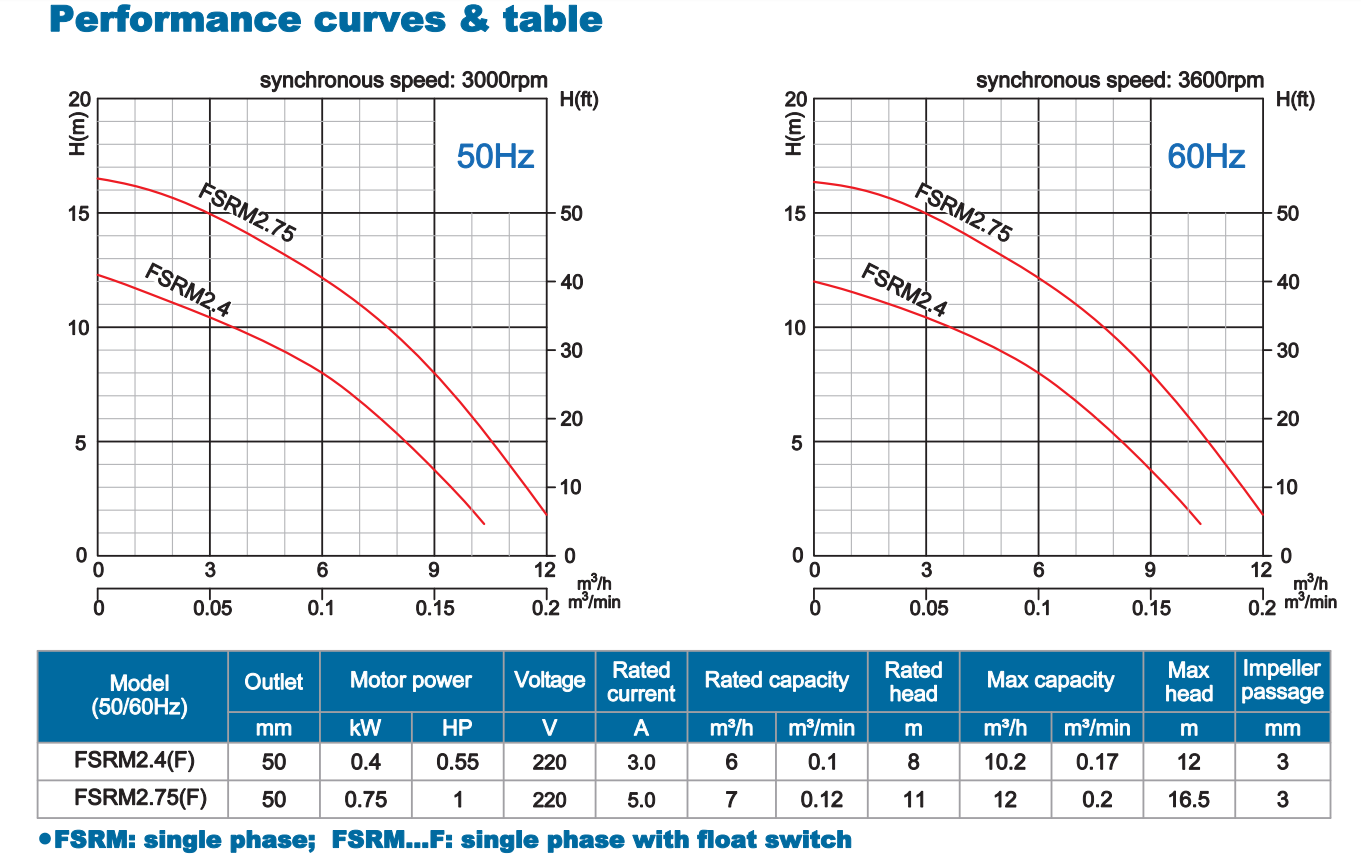

Specification

Water temperature: up to 40°C

PH: 6.5 to 8.5

Power supply: single phase 220V ± 10%, 50Hz, 60Hz

Insulation class: F

Protection class: IP68

Cable length: 8m

Max water depth: 10m
